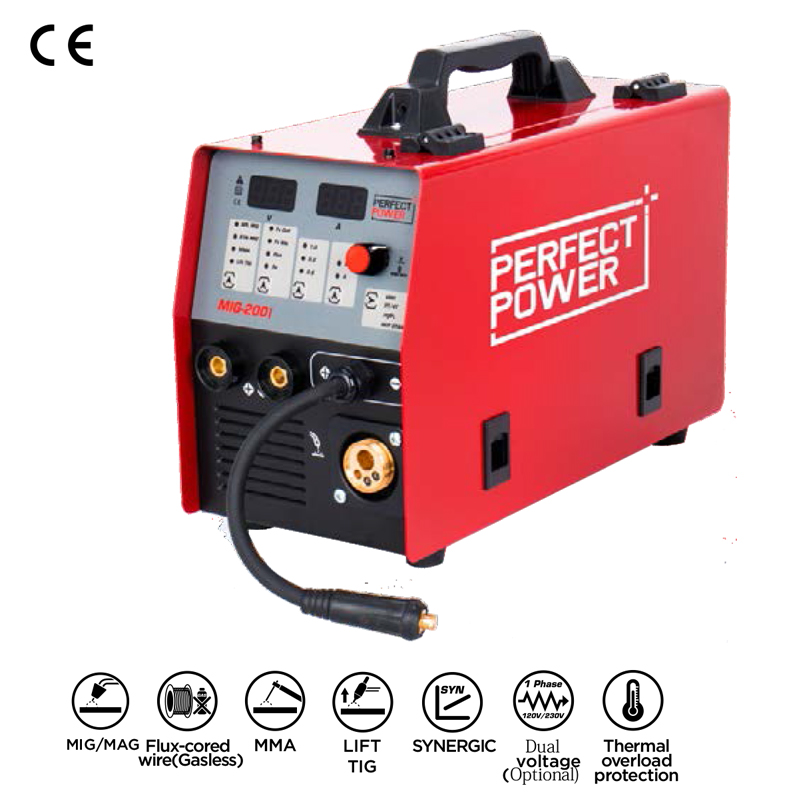

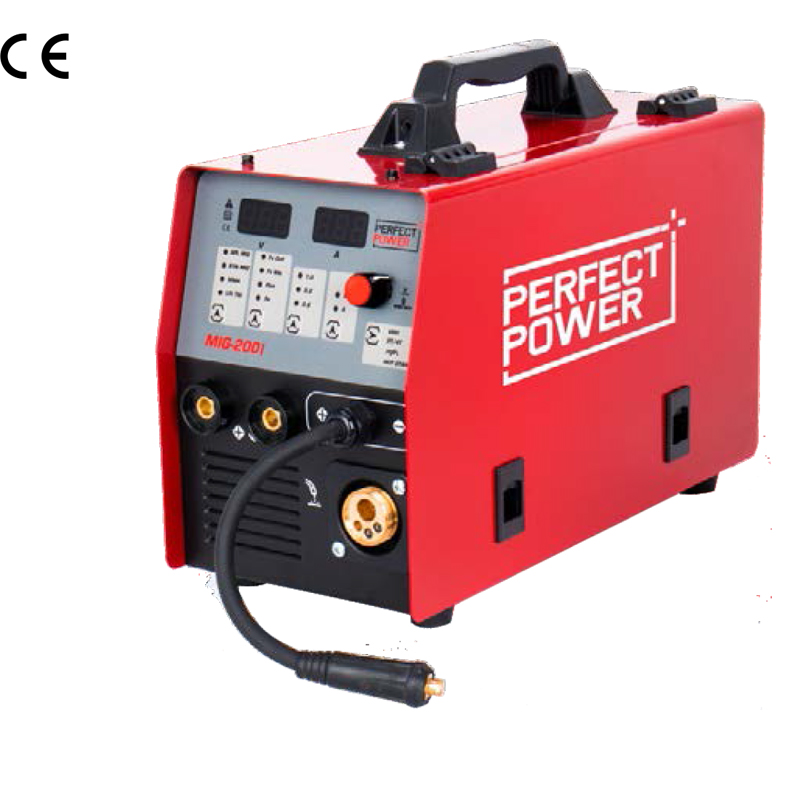

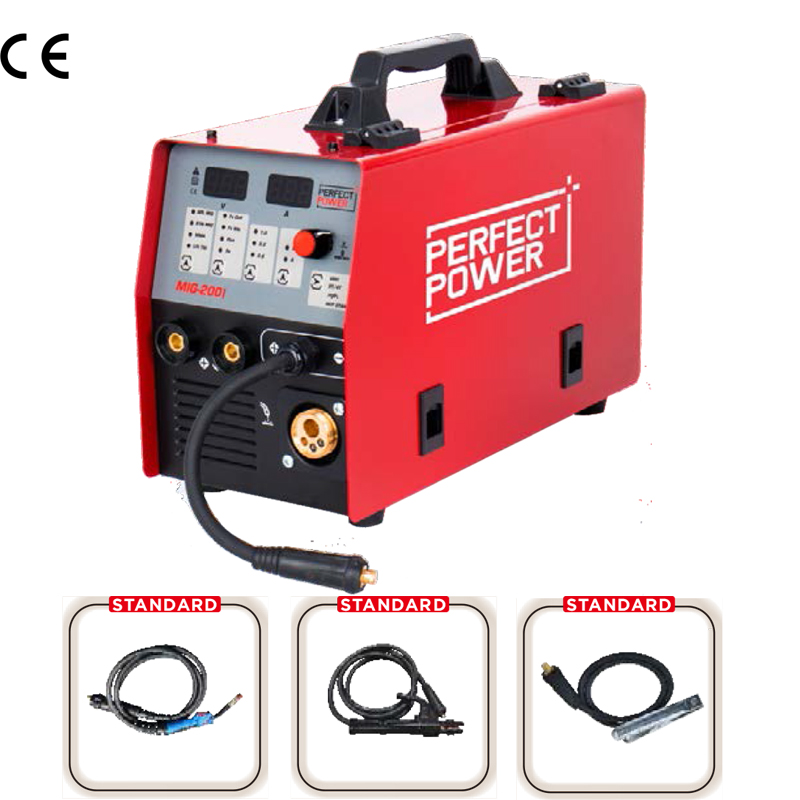

MIG-200I Portable Multi-function MIG/MAG Welder With Double Pulse Welding Machine

The MIG-200I MIG welding machine is a double pulse MIG welder. It’s also a stick welder (arc welder), but it’s primarily a MIG machine set up for aluminum and exotics, making it great for working on vehicles. The aluminum where the double pulse seems to come in.

In Stock
MIG Welder Factory Price
Portable Multi-function MIG/MAG welder
Support OEM/ODM Orders

The MIG-200I MIG welding machine is a double pulse MIG welder. It’s also a stick welder (arc welder), but it’s primarily a MIG machine set up for aluminum and exotics, making it great for working on vehicles. The aluminum where the double pulse seems to come in.
1. Portable Multi-function MIG/MAG welder with Double Pulse. Advanced IGBT inverter technology.
2. Multiple processes with Gas/No Gas MIG, MMA, and LIFT-TIG.
3. Digital control Pulse MIG and Double Pulse MIG for Aluminum welding.
4. The synergetic setting is an easy setup. Available for 1KG and 5KG wire spools.
5. Automatic over-current, overheat, and overvoltage protection.

Model

MIG-200I

Power input AC(V)

1pH 220V

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

6.3 kVA MIG welding machine

Rated current input(A)

29

Rated output current(A)/voltage(V)

200/23.0

Welding current range(A)

30~200

Open circuit voltage DC(V)

56

Rated duty cycle( 40℃)

30%

Wire Feeding Speed(M/min)

2.5~14

IP grade

IP21

Insulation grade

F

Dimensions(mm)

525*300*375

Weight (KG)

8.5/12

Wire Melting Type

spray transfer
