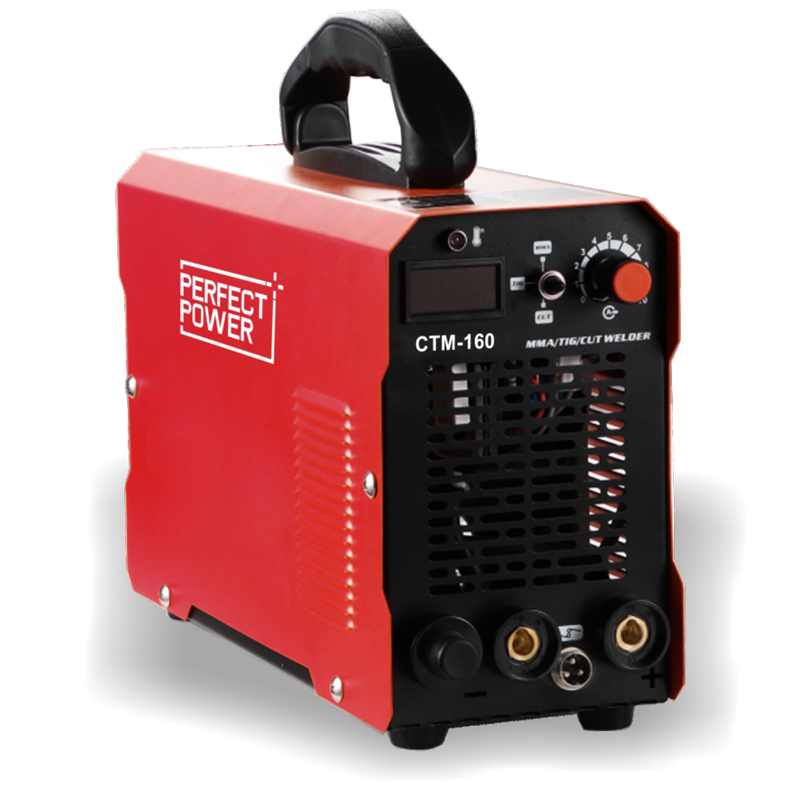

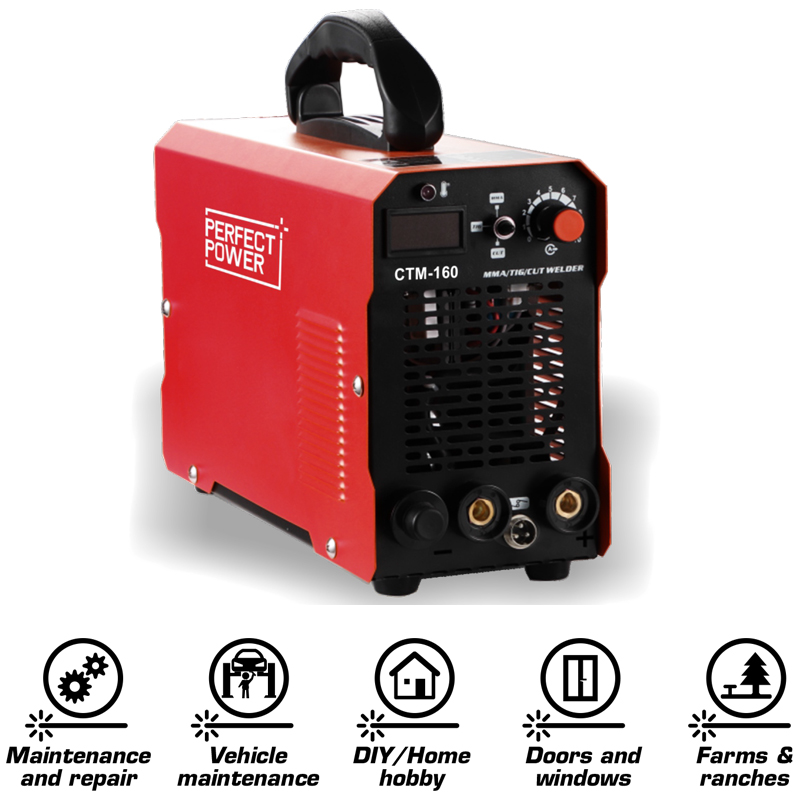

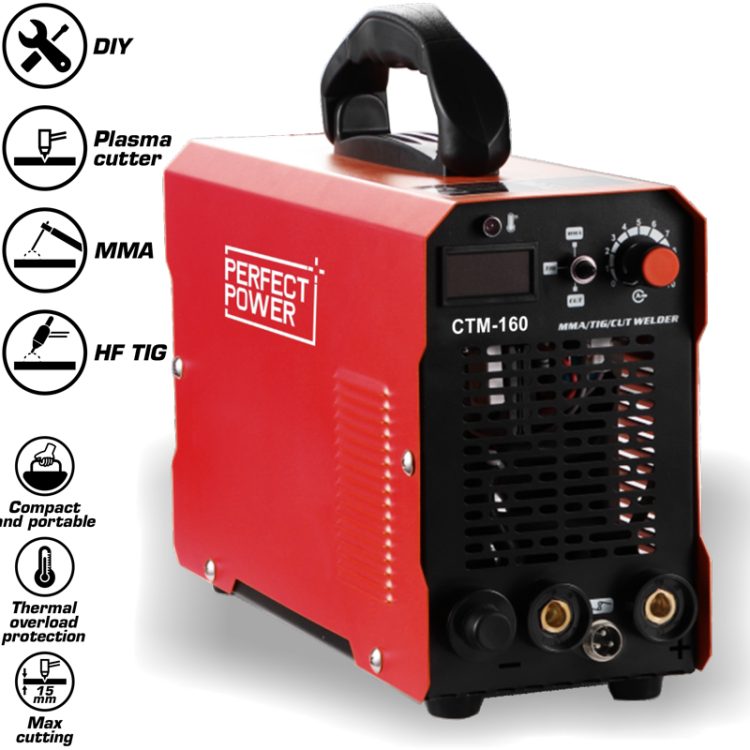

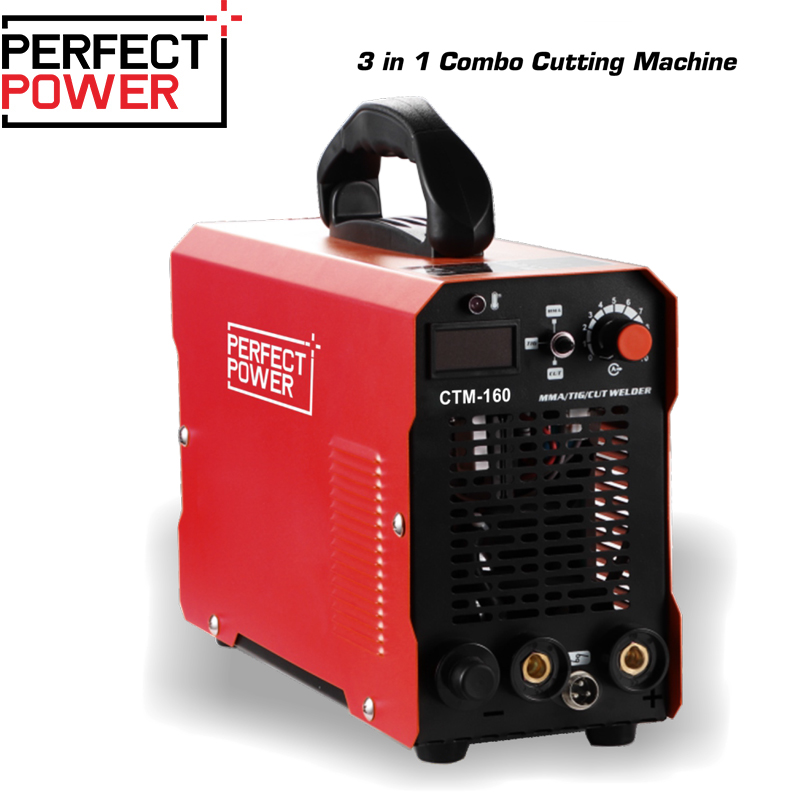

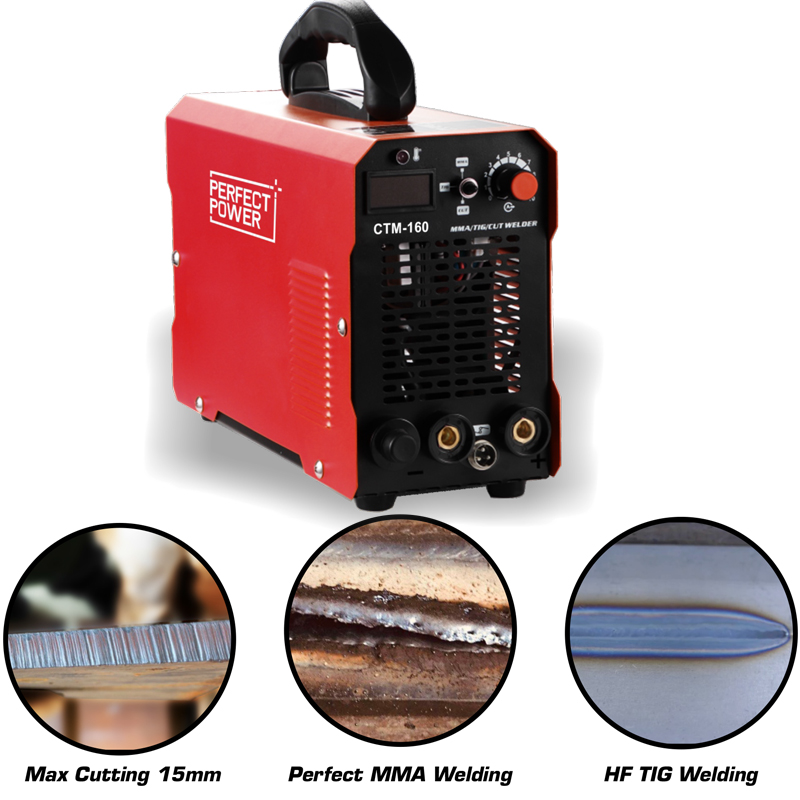

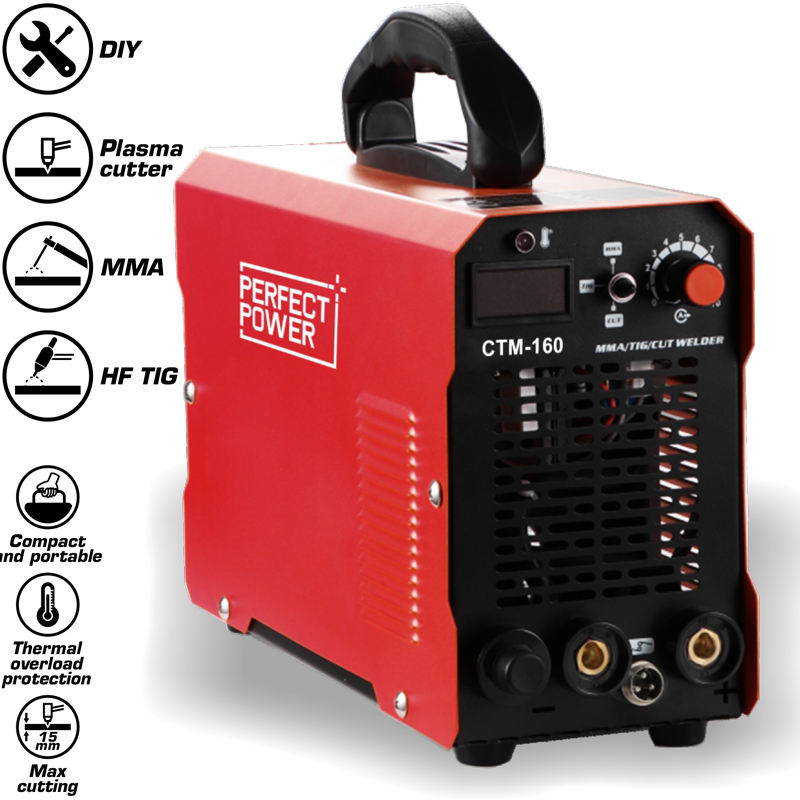

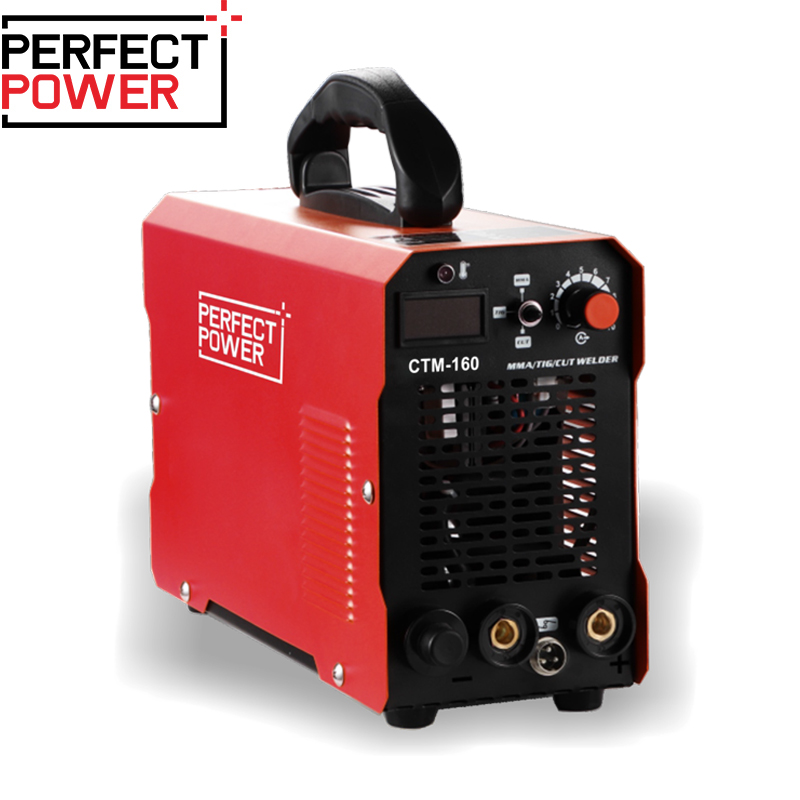

CTM-160 IGBT Inverter Plasma Cutting Machine

In Stock
Welder Custom LabelEasy and safe to use
Welder Custom LabelEfficient cutting ability
Welder Custom LabelLightweight and portable design

1.MULTI FUNCTIONAL 3 in 1:CUT/MMA/TIG
2.Highly convenient , operate it anywhere.
3.Drag torch arc starting .
4.Capable of cutting and welding various metals.
5.Max 15mm Cutting thickness.
6.LED control display.
7.Smart cooling & overheating protection.
8.Narrow cutting seam, clean cutting edge, anti deformation.

Model

CTM-160

Power input AC(V)

1pH 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

4.5(CUT) / 5.0(MMA) / 3.1(TIG)

Rated current input(A)

29.3(CUT) / 32.2(MMA) / 20.0(TIG)

Rated output current(A)/voltage(V)

10-40( CUT) / 10-160(MMA) / 10-180(TIG)

Max. cutting current (A)

160

Open circuit voltage DC(V)

253(CUT) / 70( TIG/MMA)

Rated duty cycle(%)

40%(CUT/TIG/MMA)

Max.cutting thickness(mm)

15

IP grade

IP21

Insulation grade

F

Dimensions(mm)

402*275*300

Weight (KG)

6.0

Brochure

CTM-160 IGBT Inverter Plasma Cutting Machine CTM-160 IGBT Inverter Plasma Cutting Machine

CTM-160 Plasma Cutter Video
