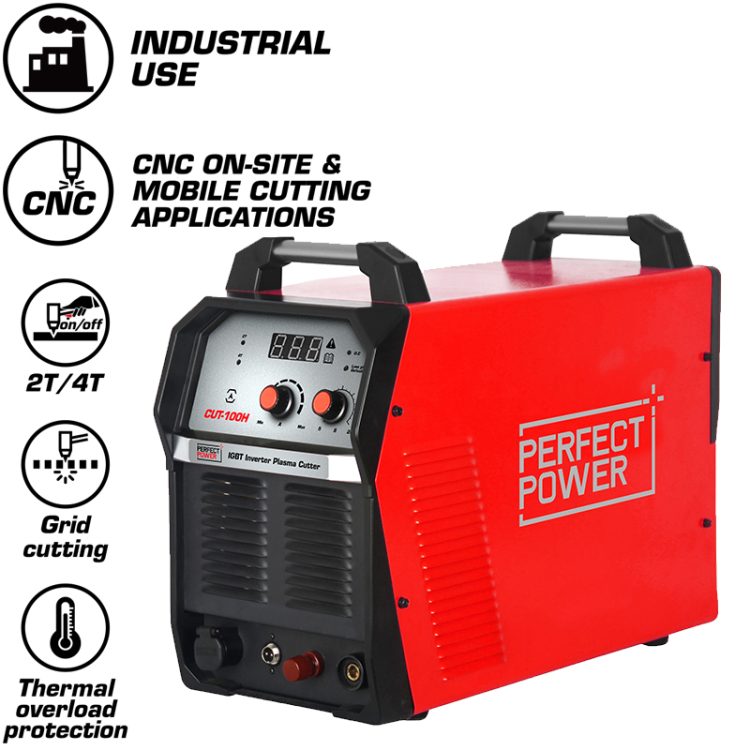

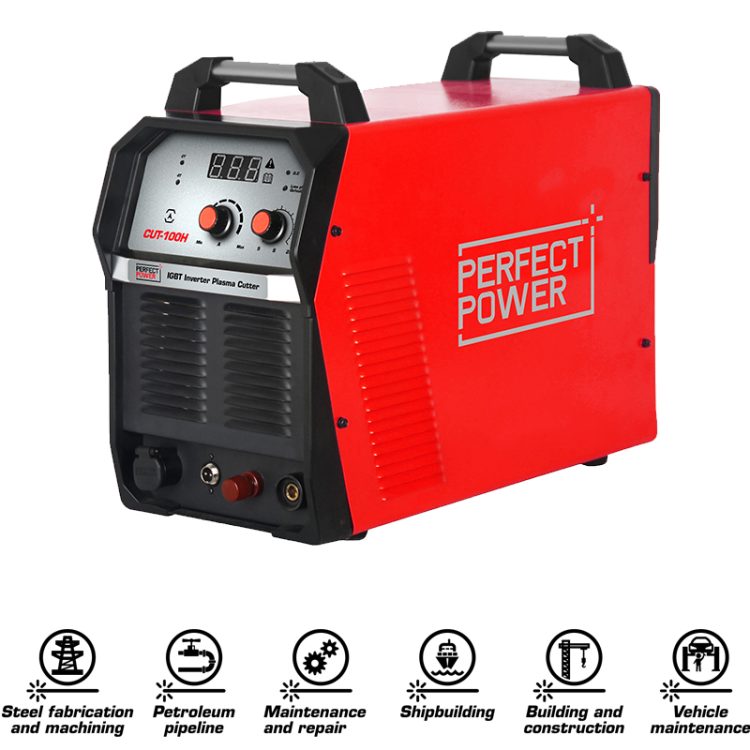

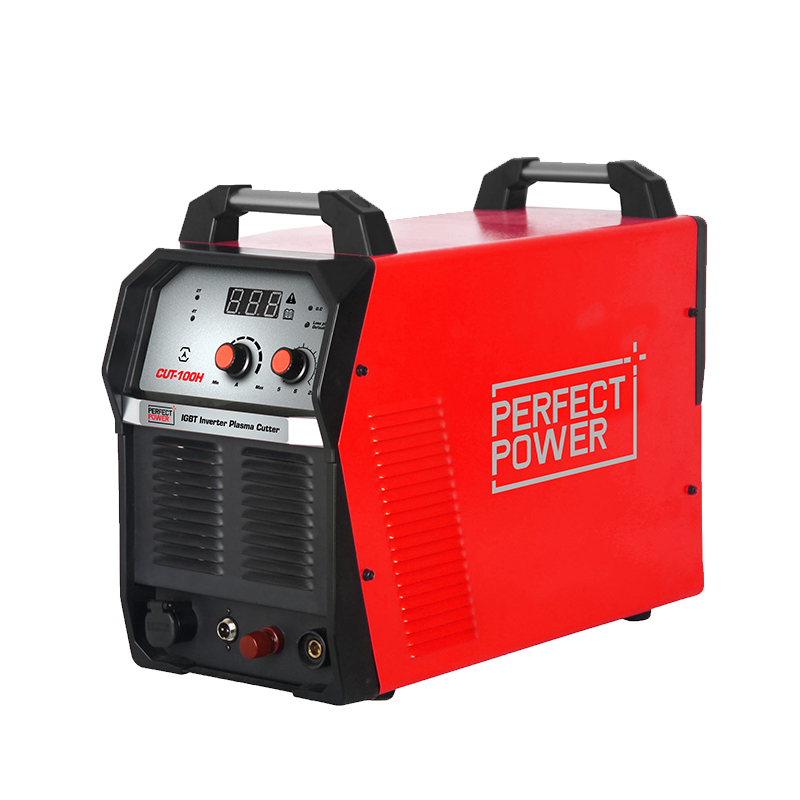

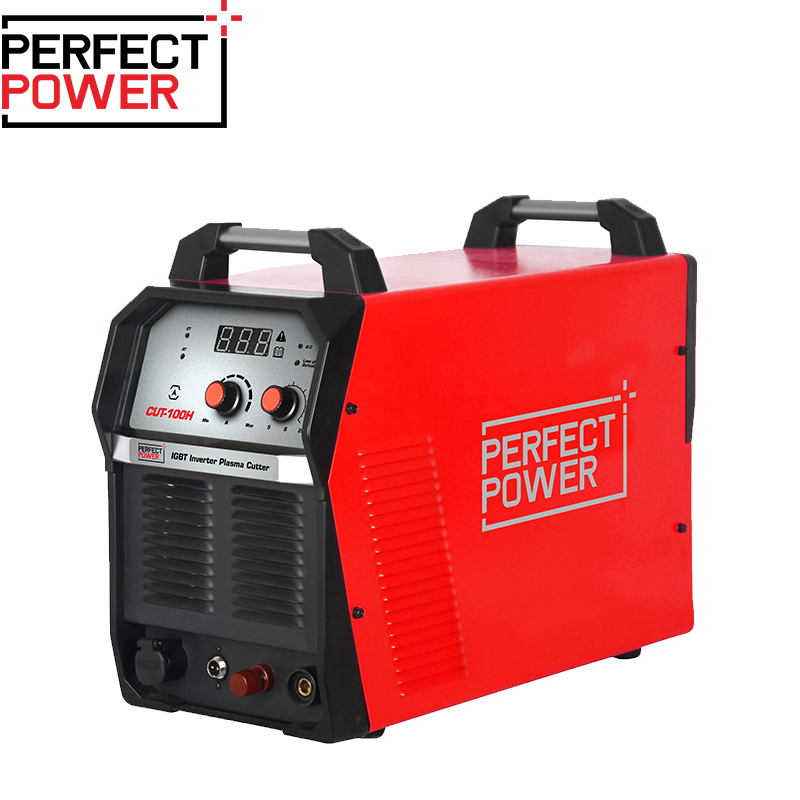

CUT-100H IGBT Inverter Plasma Cutting Machine

In Stock
Welder Custom LabelDigital IGBT inverter
Welder Custom LabelEasy and safe to use
Welder Custom LabelEfficient cutting ability

1. Thanks to the advanced inverter technology, the machine is robust with a powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.

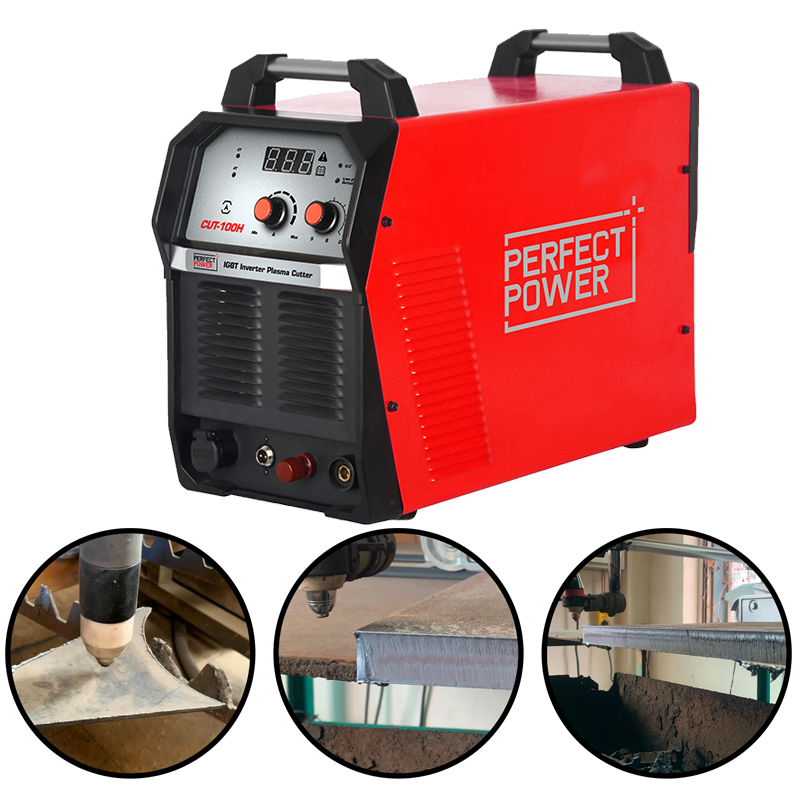

3. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
4. 2T/4T self-locking function.
5. Pilot arc starting increases cutting capability and cutting speed, improving the service life of torch kit.
6. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
7. Heavy-duty cycle for industrial use.

Model

CUT-100H

Power input AC(V)

3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

19.1 kVA

Rated current input(A)

29

Rated output current(A)/voltage(V)

100/120

Max. cutting current (A)

100

Open circuit voltage DC(V)

295

Rated duty cycle(%)

60

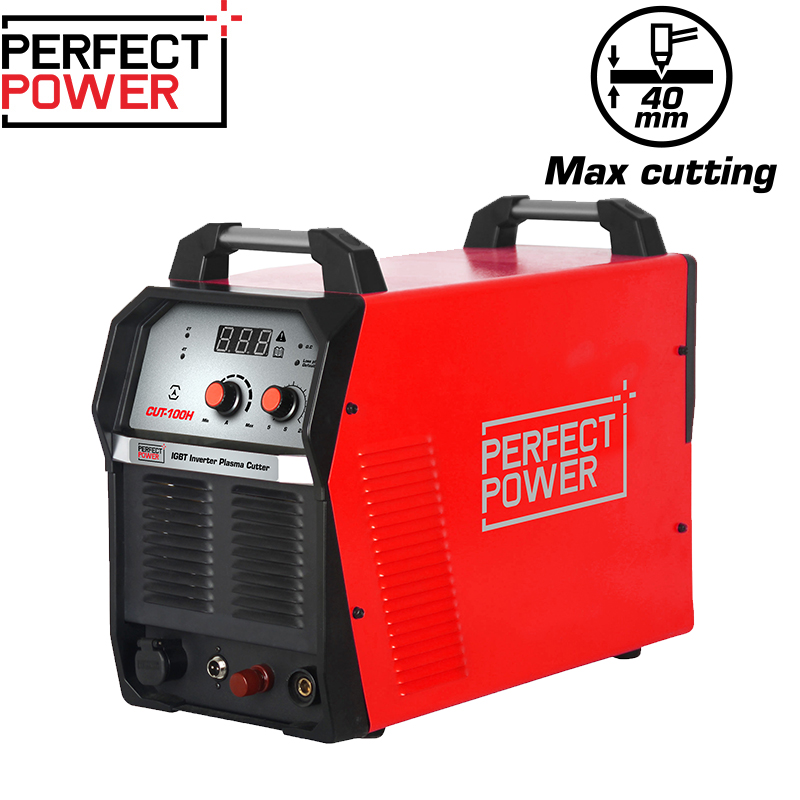

Max.cutting thickness(mm)

40

IP grade

IP21

Insulation grade

F

Dimensions(mm)

625*360*460

Weight (KG)

21
