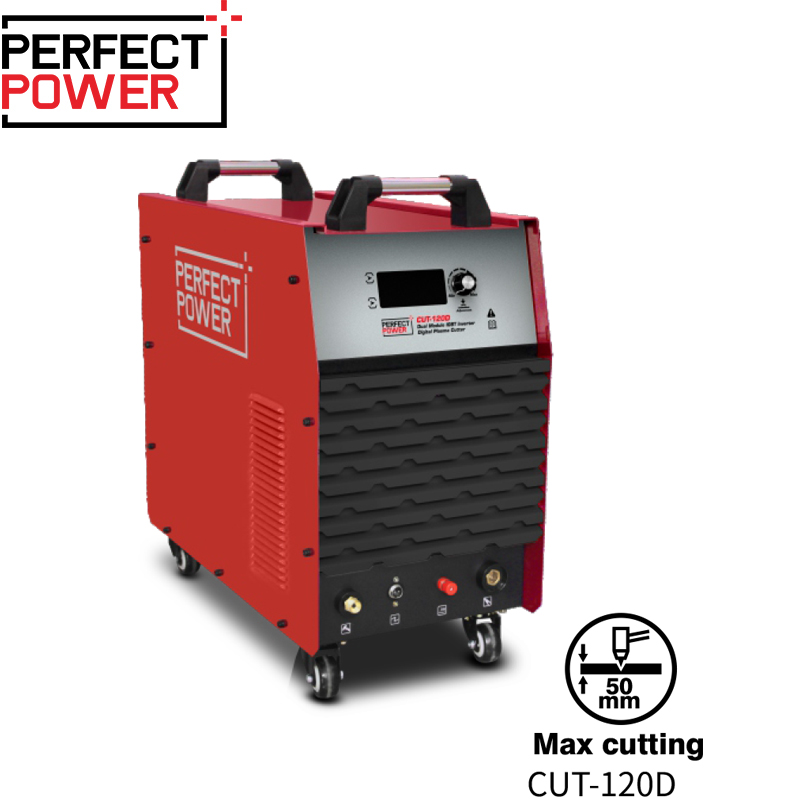

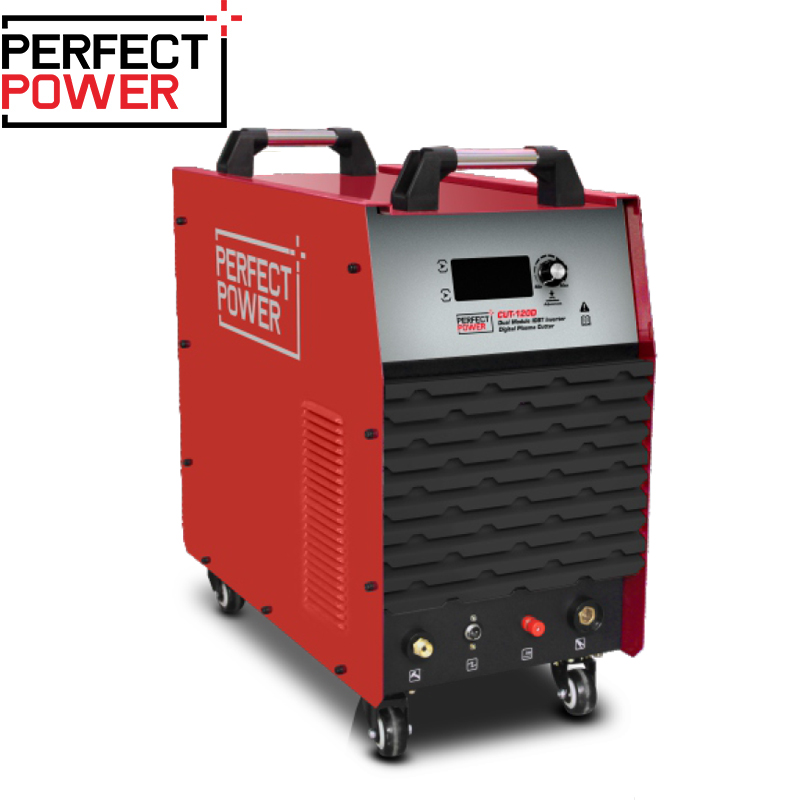

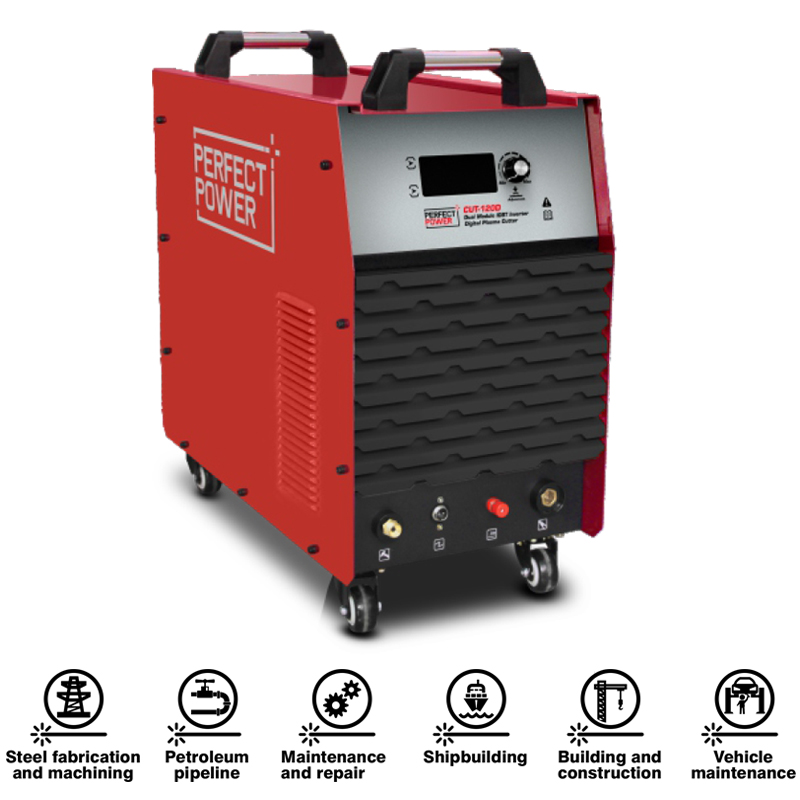

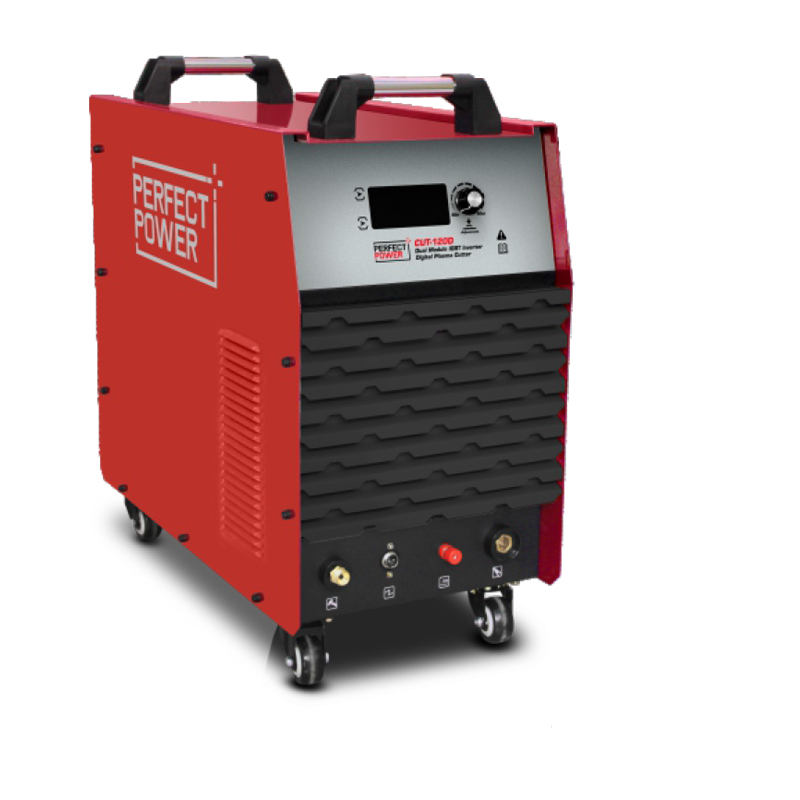

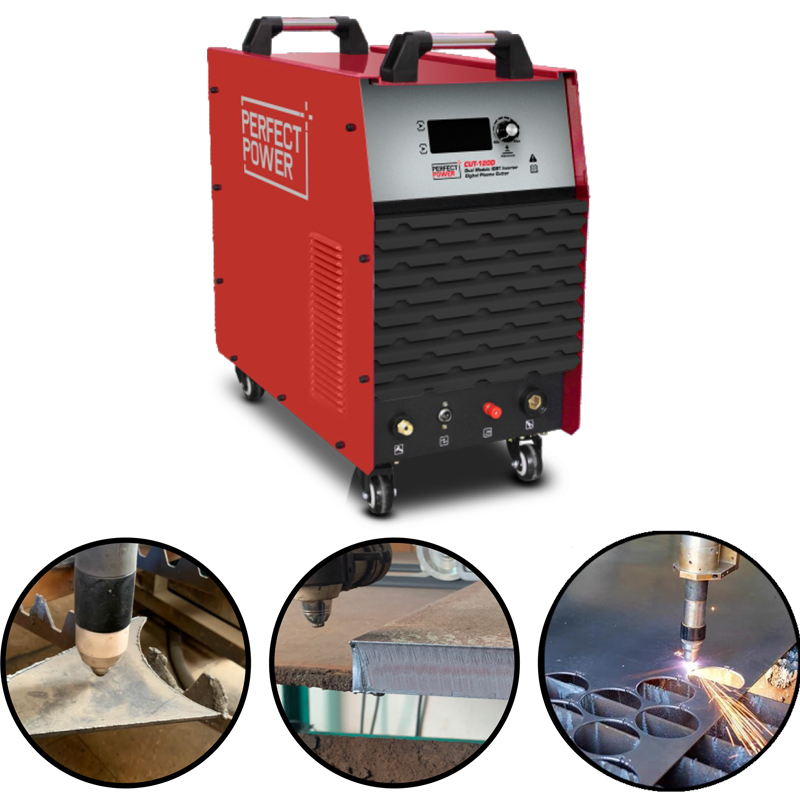

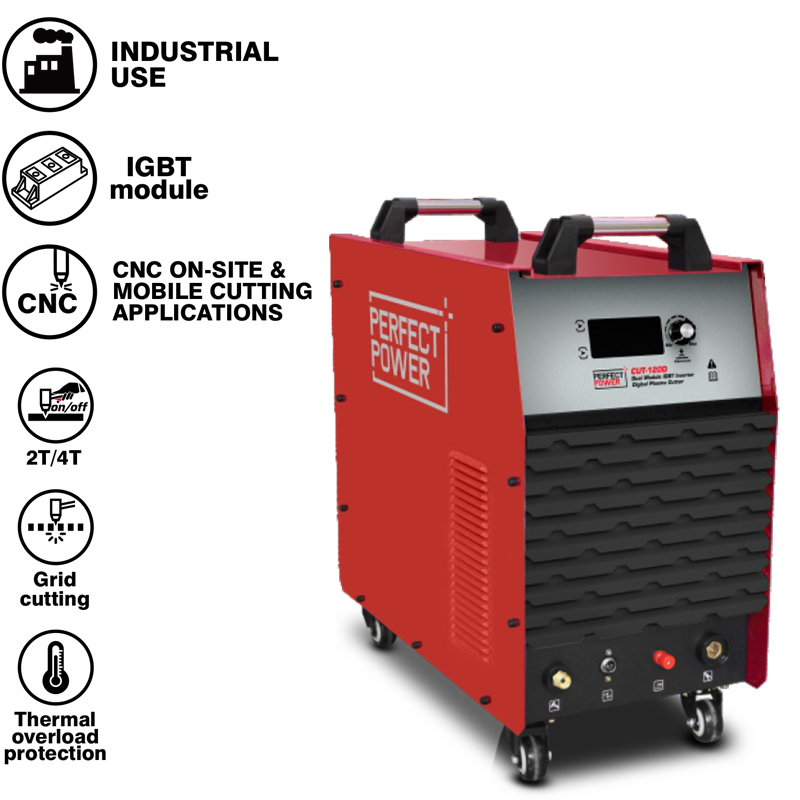

CUT-120D Inverter Plasma Cutting Machine

In Stock
Welder Custom Label2T/4T function adjustable Pre-Flow and Post-Flow
Welder Custom LabelExcellent performance for the price
Welder Custom LabelIt is a durable plasma cutter

1. Thanks to the advanced inverter technology, the machine is robust with powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Intelligent visual operation instruction make your work easy
4. Powerful cutting capacity, narrow cutting seam and clean cutting edge.
5. 2T/4T self-locking function.
6. Pilot arc starting increases cutting capability and cutting speed, improving service life of torch kit.
7. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
8. Heavy duty cycle for industrial use.

Model

CUT-120D

Power input AC(V)

3pH 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

20

Rated current input(A)

32.5

Rated output current(A)/voltage(V)

120/128

Max. cutting current (A)

120

Open circuit voltage DC(V)

300

Rated duty cycle(%)

60

Max.cutting thickness(mm)

45

IP grade

IP21

Insulation grade

F

Dimensions(mm)

658×383×658

Weight (KG)

37

Brochure

CUT-80D Inverter Plasma Cutting Machine CUT-80D 100D 120D 160D Inverter Plasma Cutting Machine

CUT-120D Plasma Cutter Video
