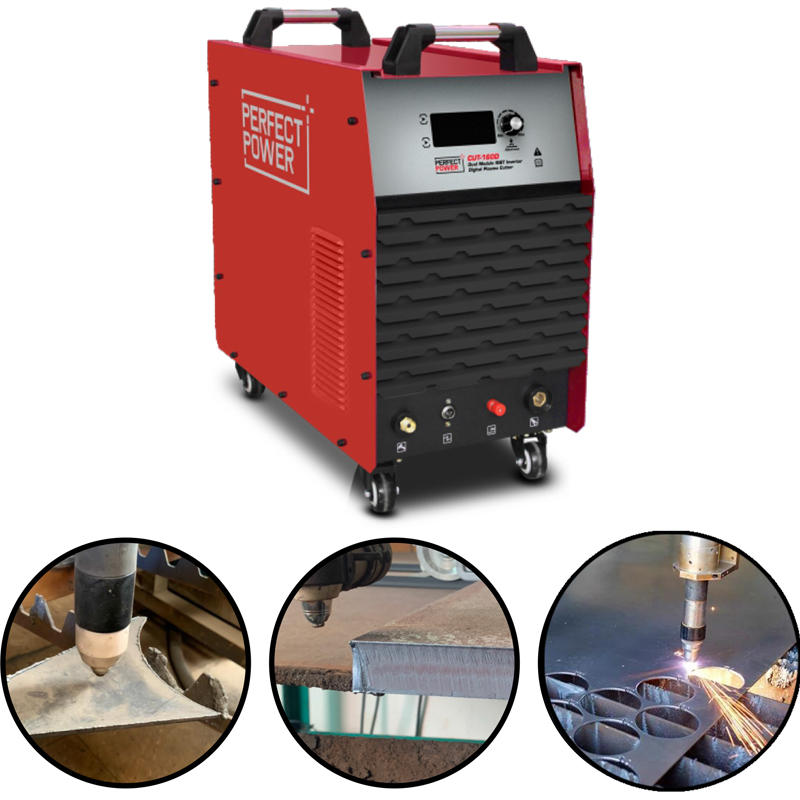

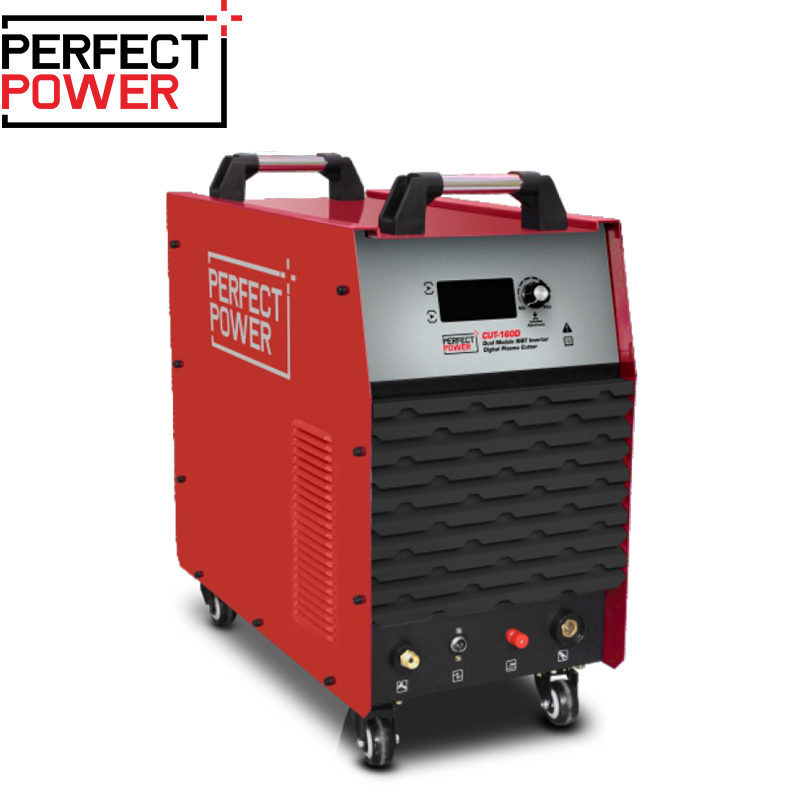

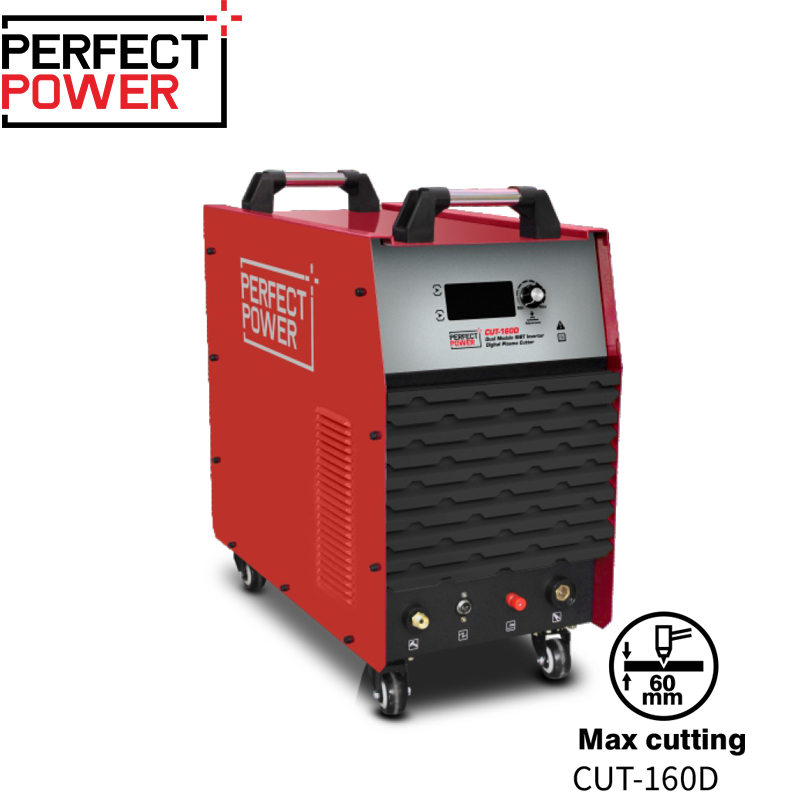

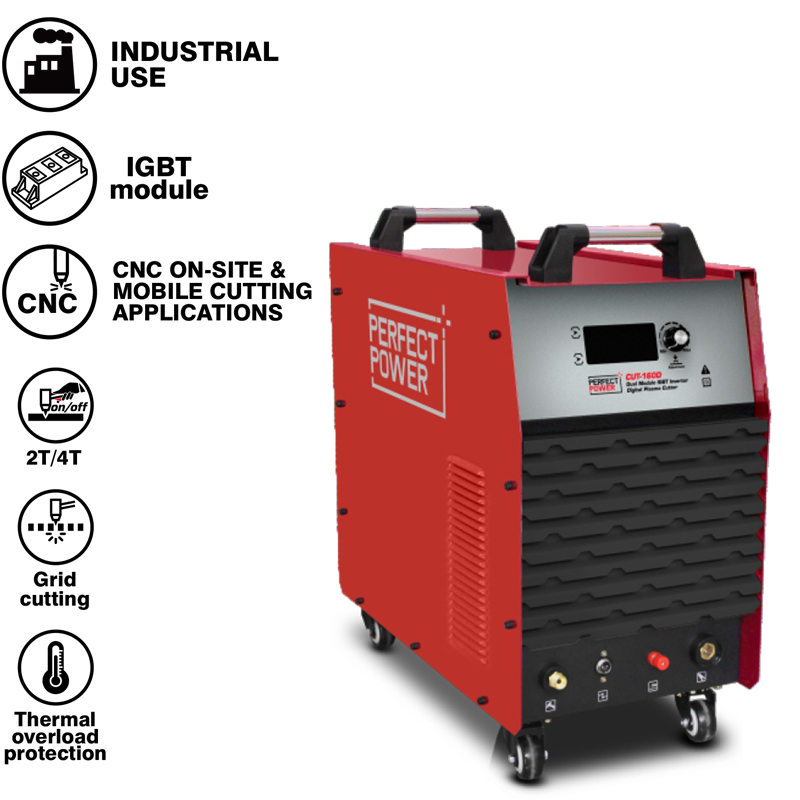

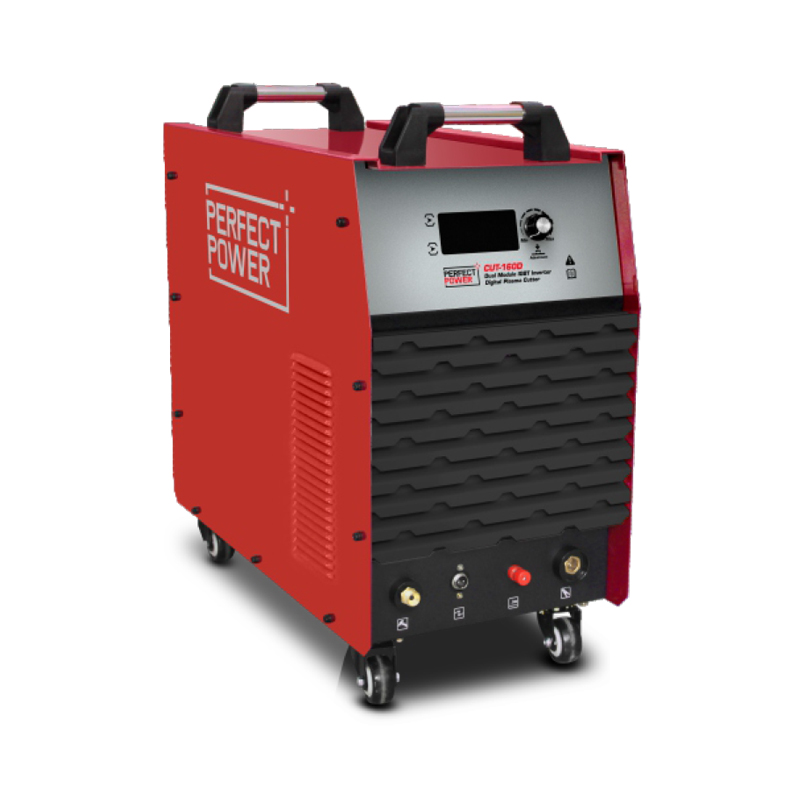

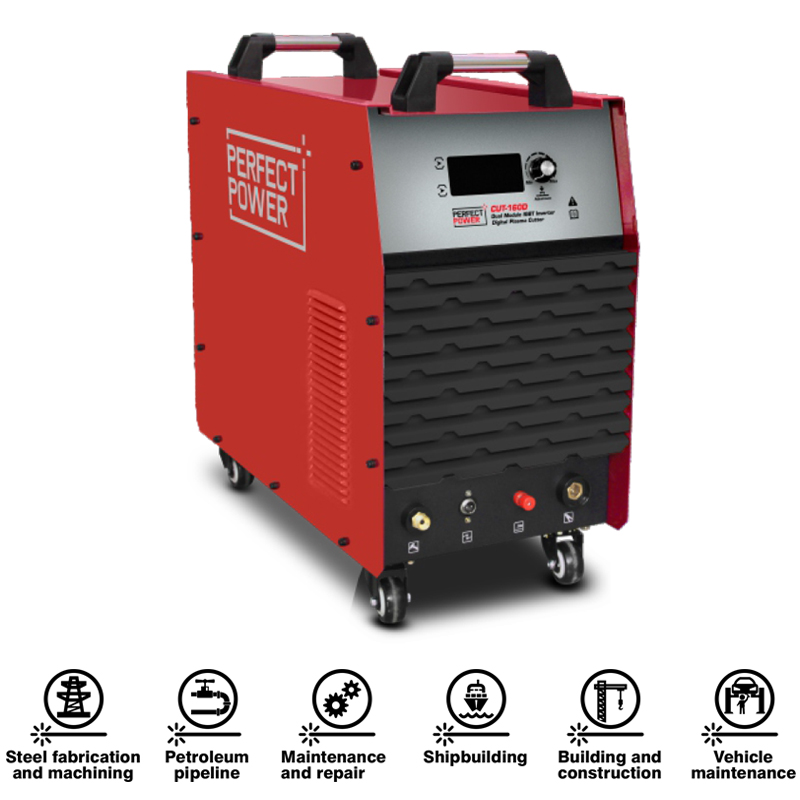

CUT-160D Inverter Plasma Cutting Machine
CUT-160D Inverter Plasma Cutting Machine - Image 2
CUT-160D Inverter Plasma Cutting Machine - Image 3
CUT-160D Inverter Plasma Cutting Machine - Image 4
CUT-160D Inverter Plasma Cutting Machine - Image 5
CUT-160D Inverter Plasma Cutting Machine - Image 6
CUT-160D Inverter Plasma Cutting Machine - Image 7

Categories: ,

Description

1. Thanks to the advanced inverter technology, the machine is robust with powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Intelligent visual operation instruction make your work easy
4. Powerful cutting capacity, narrow cutting seam and clean cutting edge.
5. 2T/4T self-locking function.
6. Pilot arc starting increases cutting capability and cutting speed, improving service life of torch kit.
7. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
8. Heavy duty cycle for industrial use.

Additional information

Model

CUT-160D
Power input AC(V)

3pH 380V ±15%
Power input frequency(Hz)

50/60
Max. Load Power Capacity

32
Rated current input(A)

46.5
Rated output current(A)/voltage(V)

160/144
Max. cutting current (A)

160
Open circuit voltage DC(V)

315
Rated duty cycle(%)

60
Max.cutting thickness(mm)

60
IP grade

IP21
Insulation grade

F
Dimensions(mm)

708×403×713
Weight (KG)

55

Brochure
