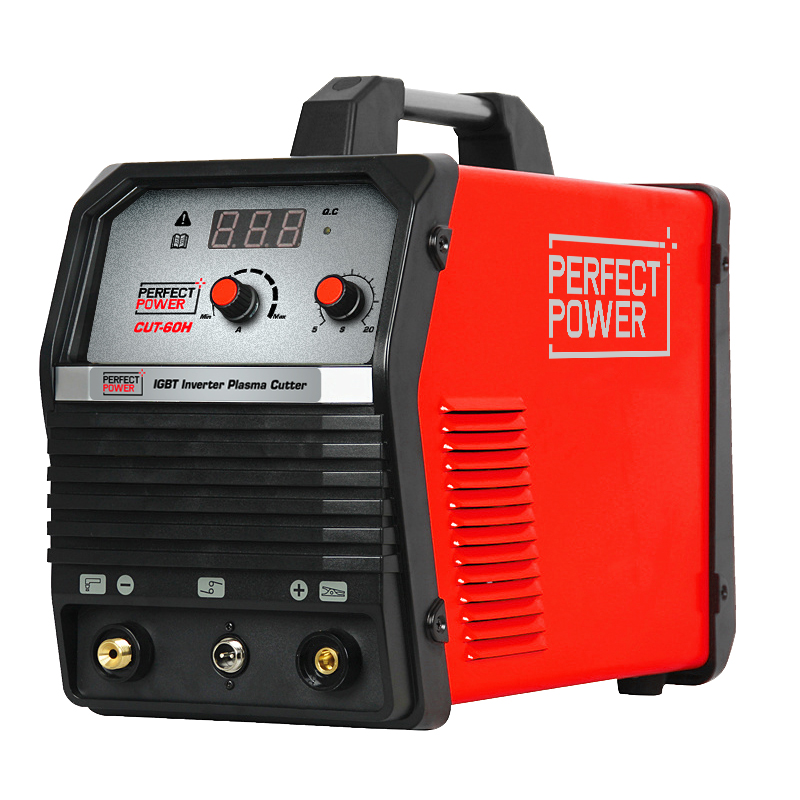

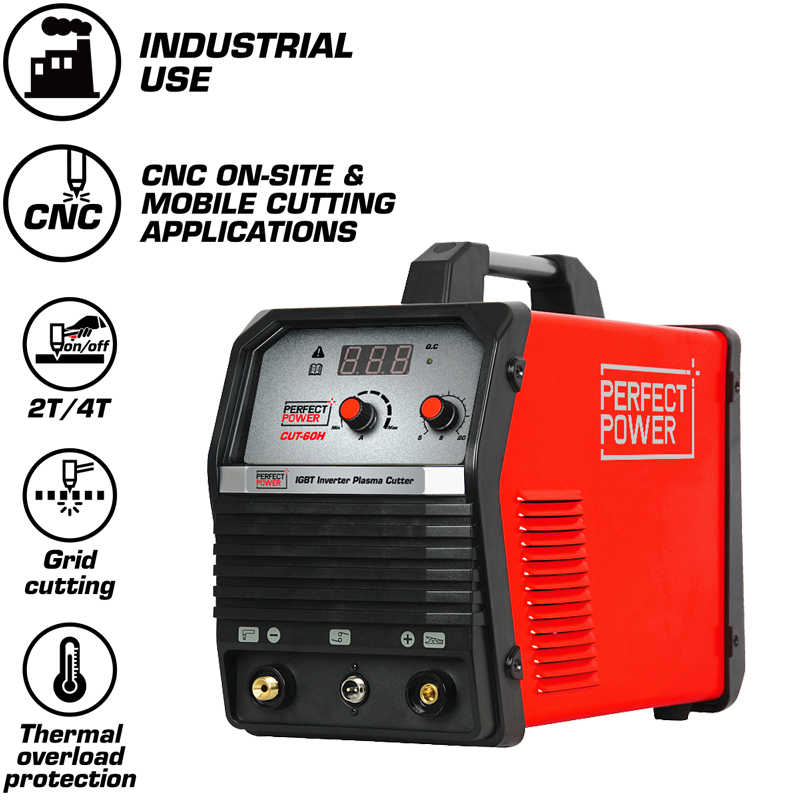

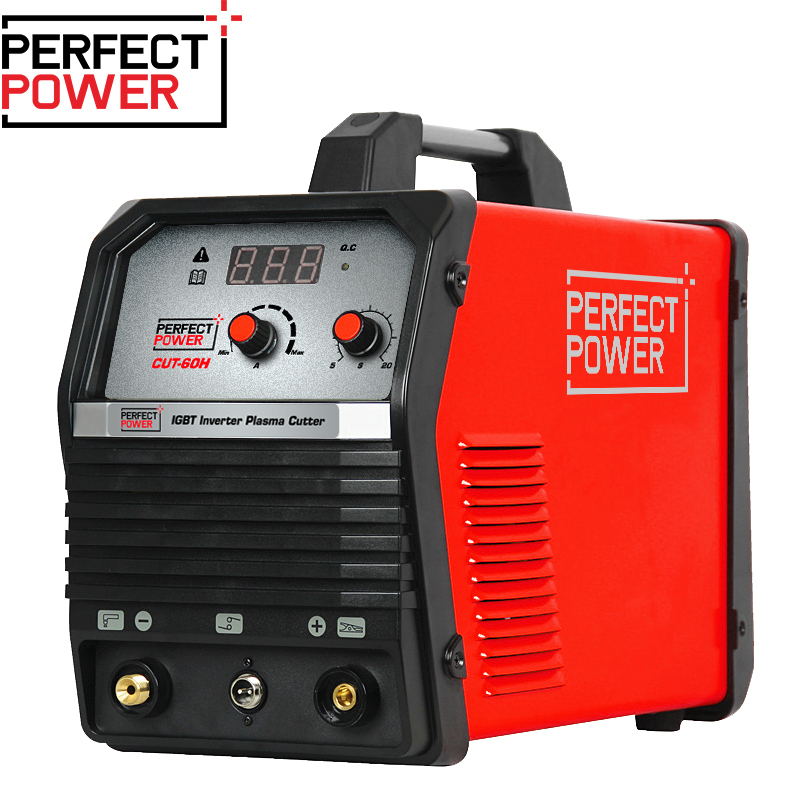

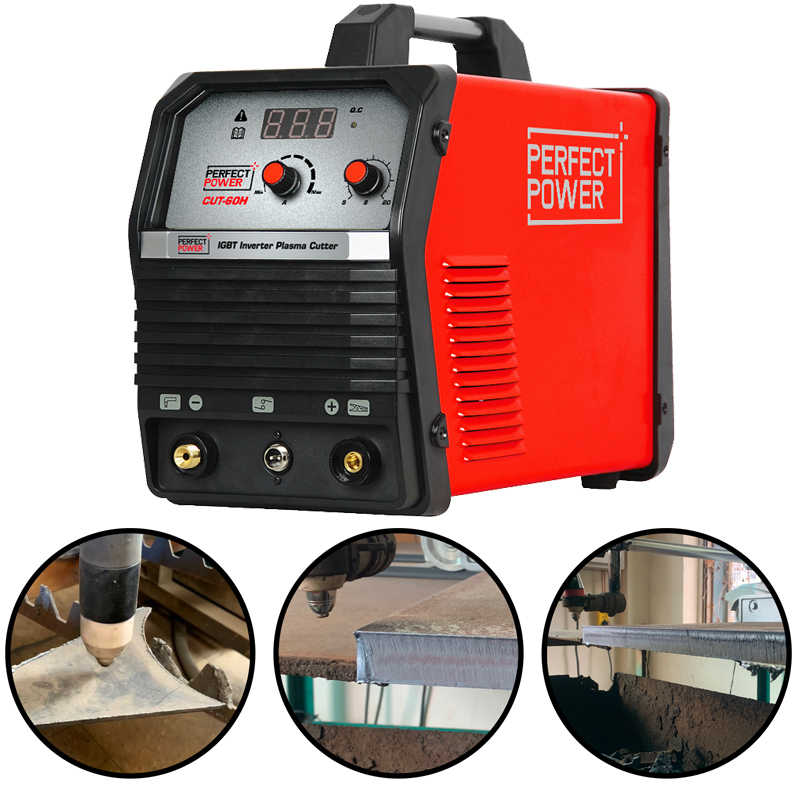

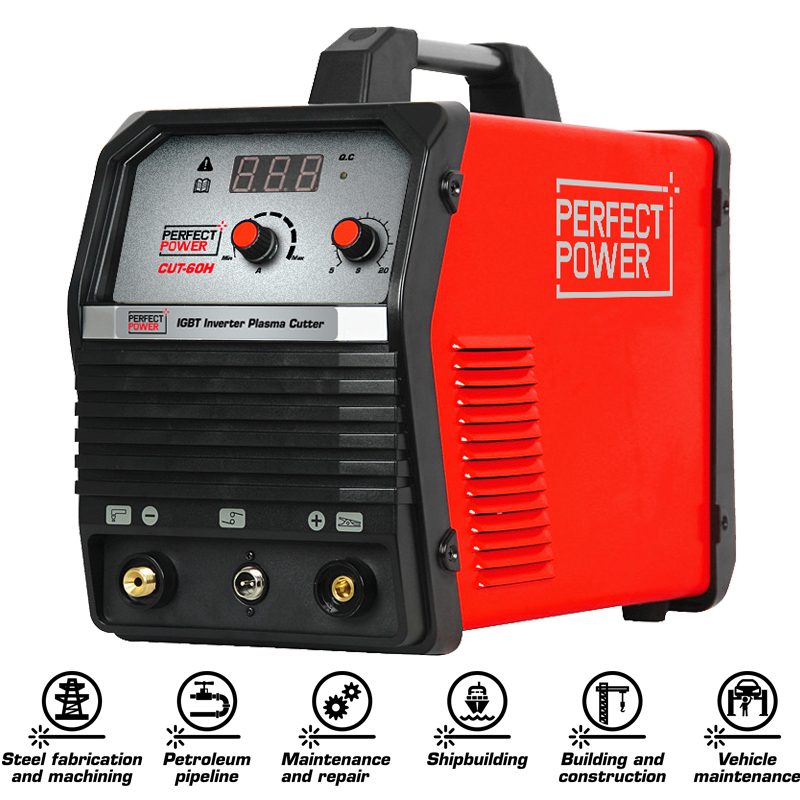

CUT-60H IGBT Inverter Plasma Cutting Machine

In Stock
Welder Custom LabelIt cuts through rusted or painted metal surfaces
Welder Custom LabelPortable and durable design
Welder Custom LabelPowerful plasma welding

1. Thanks to the advanced inverter technology, the machine is robust with a powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
4. 2T/4T self-locking function.
5. Pilot arc starting increases cutting capability and cutting speed, improving the service life of torch kit.
6. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
7. Heavy-duty cycle for industrial use.

Model

CUT-60H

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

10.7

Rated current input(A)

48.6

Rated output current(A)/voltage(V)

55/102

Max. cutting current (A)

55

Open circuit voltage DC(V)

275

Rated duty cycle(%)

60

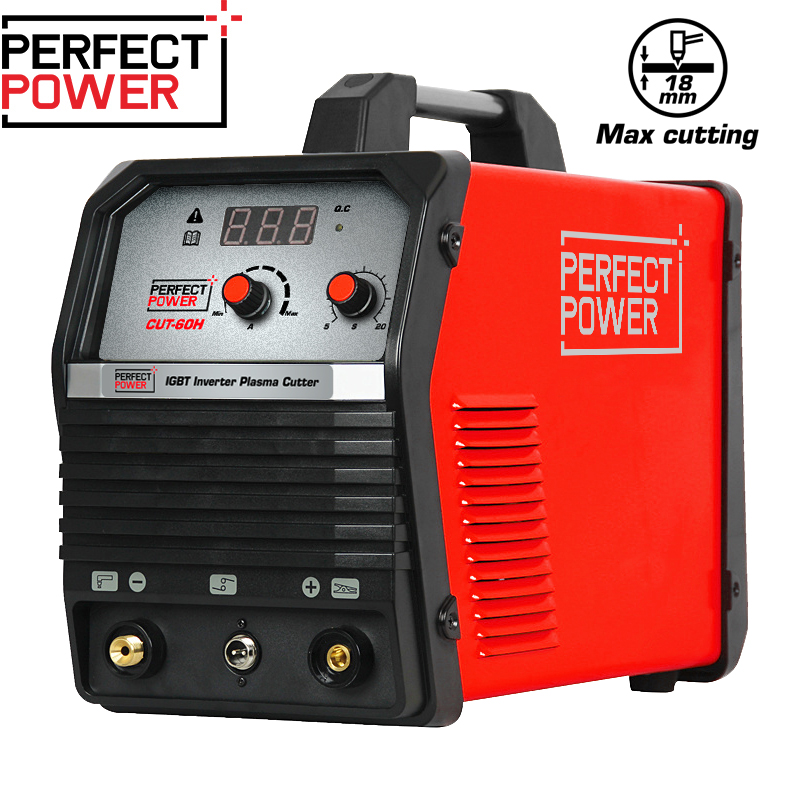

Max.cutting thickness(mm)

18

IP grade

IP21

Insulation grade

F

Dimensions(mm)

515*320*395

Weight (KG)

12
