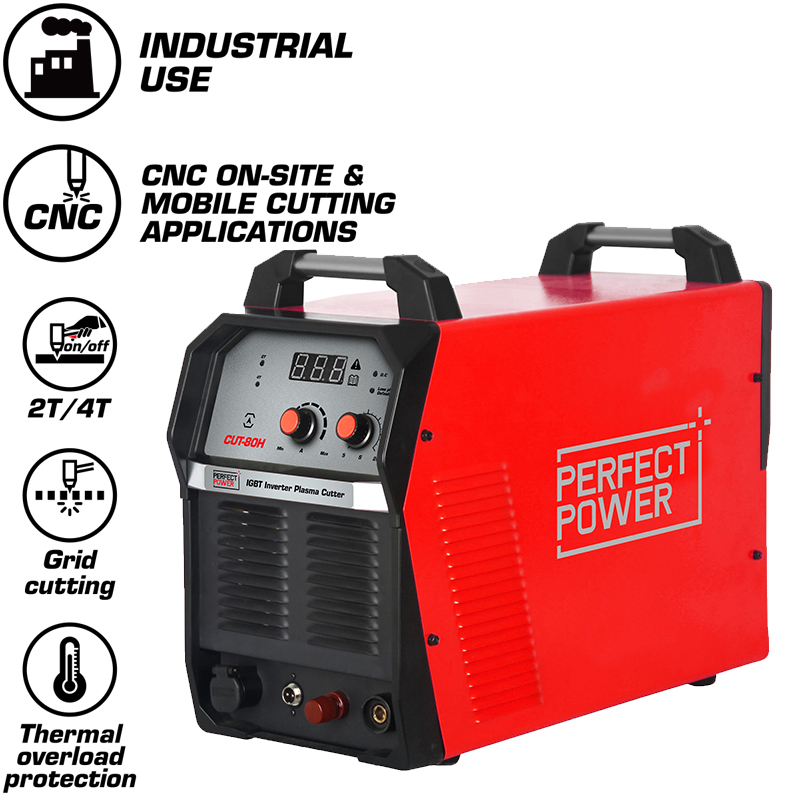

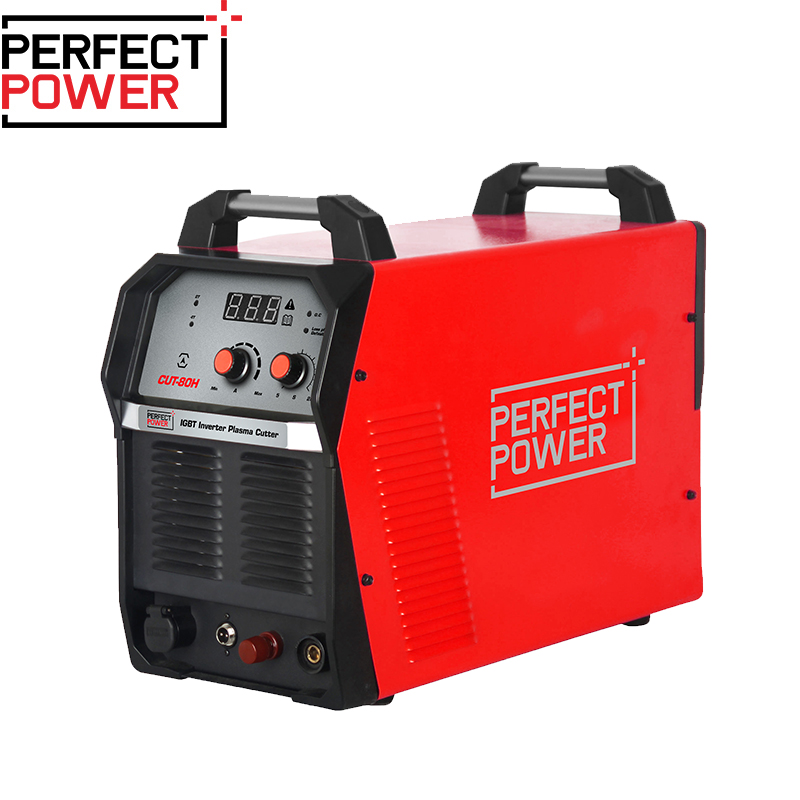

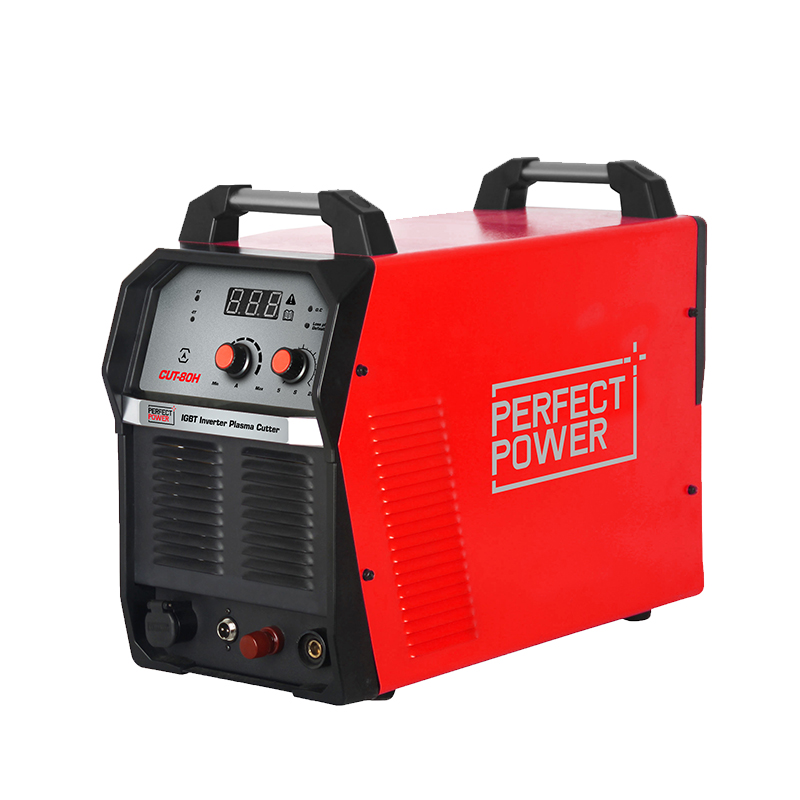

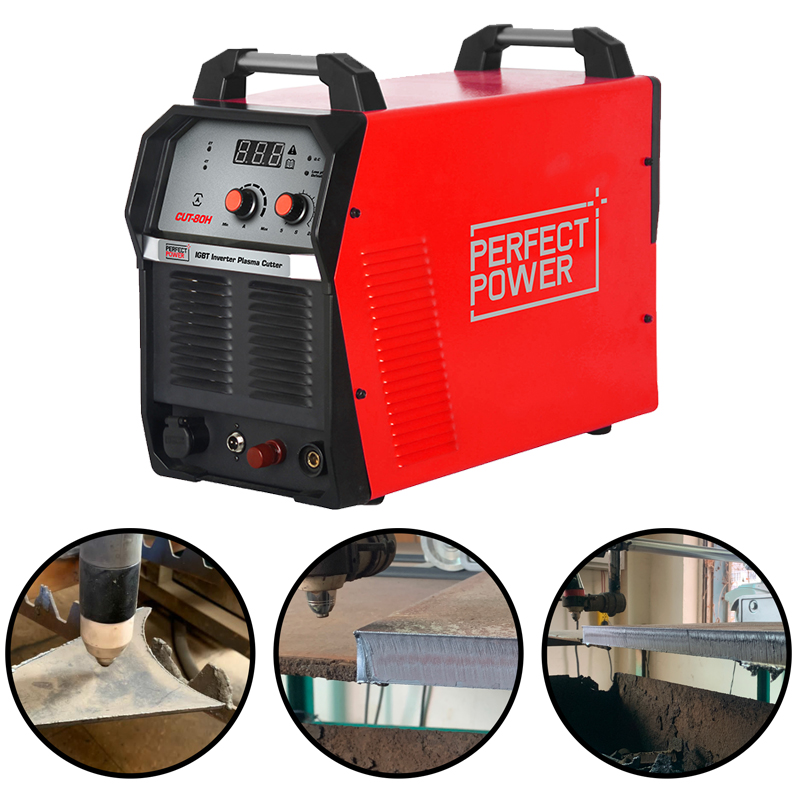

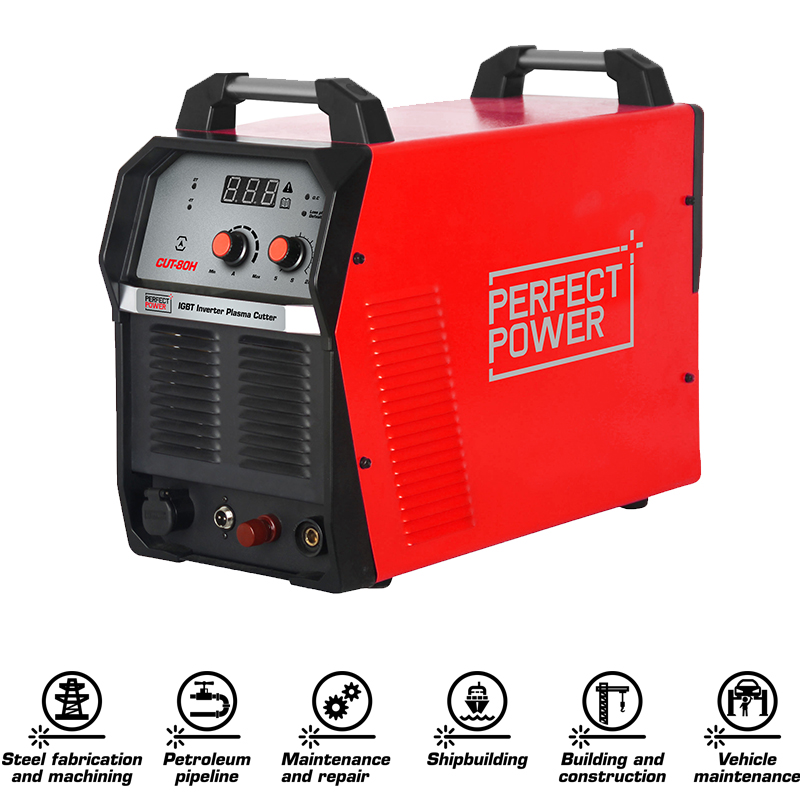

CUT-80H IGBT Inverter Plasma Cutting Machine

In Stock
Welder Custom LabelExcellent performance for the price
Welder Custom LabelIGBT Technology
Welder Custom LabelIt cuts through rusted or painted metal surfaces

1. Thanks to the advanced inverter technology, the machine is robust with a powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
4. 2T/4T self-locking function.
5. Pilot arc starting increases cutting capability and cutting speed, improving the service life of torch kit.
6. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
7. Heavy-duty cycle for industrial use.

Model

CUT-80H

Power input AC(V)

3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

14.5

Rated current input(A)

22

Rated output current(A)/voltage(V)

80/112

Max. cutting current (A)

80

Open circuit voltage DC(V)

288

Rated duty cycle(%)

60

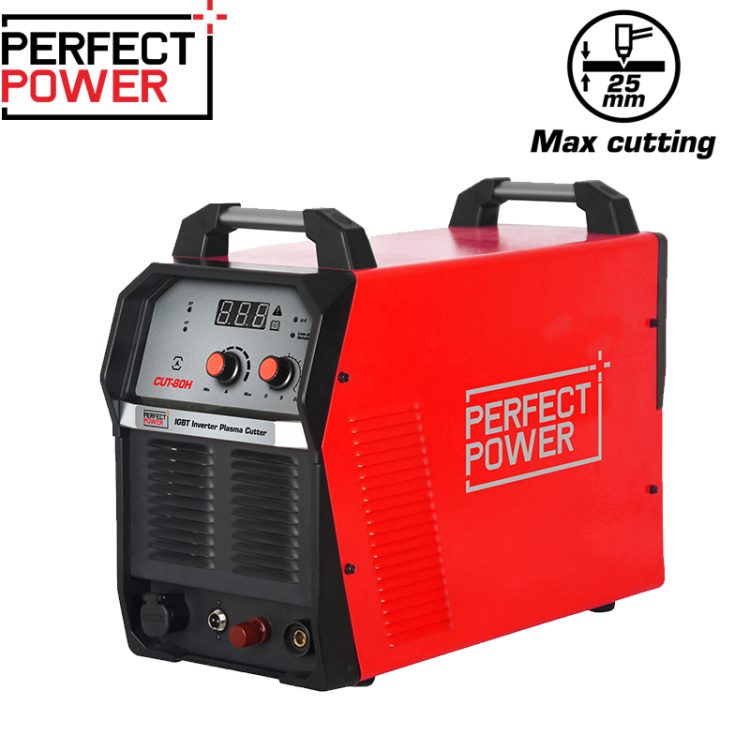

Max.cutting thickness(mm)

25

IP grade

IP21

Insulation grade

F

Dimensions(mm)

625*360*460

Weight (KG)

19.3
