1. Full bridge IGBT converter guarantees stable output power.

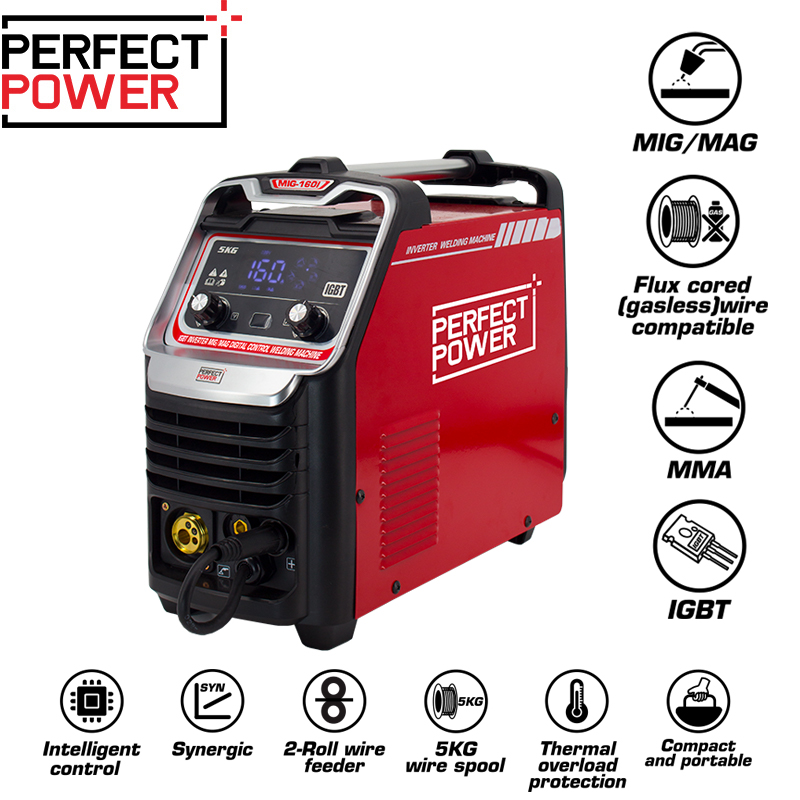

2. Digital control system and multi-functional control panel which can achieve MIG/MAG, Gasless flux cored wire welding, and MMA.
3. Compact design, lightweight, but robust.
4. User-friendly and cost-effective.
5. Effective spatter control, improved penetration, and better welding effect.
6. Equipped with a trimmer potentiometer on the control panel, it is more convenient for the voltage compensation of welding to make the welding effect more perfect.
7. Ideal for use in outdoor and indoor conditions.
8. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
| Model | MIG-160I |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 7.7 kVA MIG welding machine |
| Rated current input(A) | 35 A |
| Rated output current(A)/voltage(V) | 160/26.0(MIG), 160/26.4(MMA) |
| Welding current range(A) | 30-160（MIG）, 20-160（MMA） |
| Open circuit voltage DC(V) | 60 V |
| Rated duty cycle | 60% |
| Wire Feeding Speed(M/min) | 2~14 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 515*312*390 |
| Weight (KG) | 8.0-9.8 |
| Wire Melting Type | short circuit transfer |
