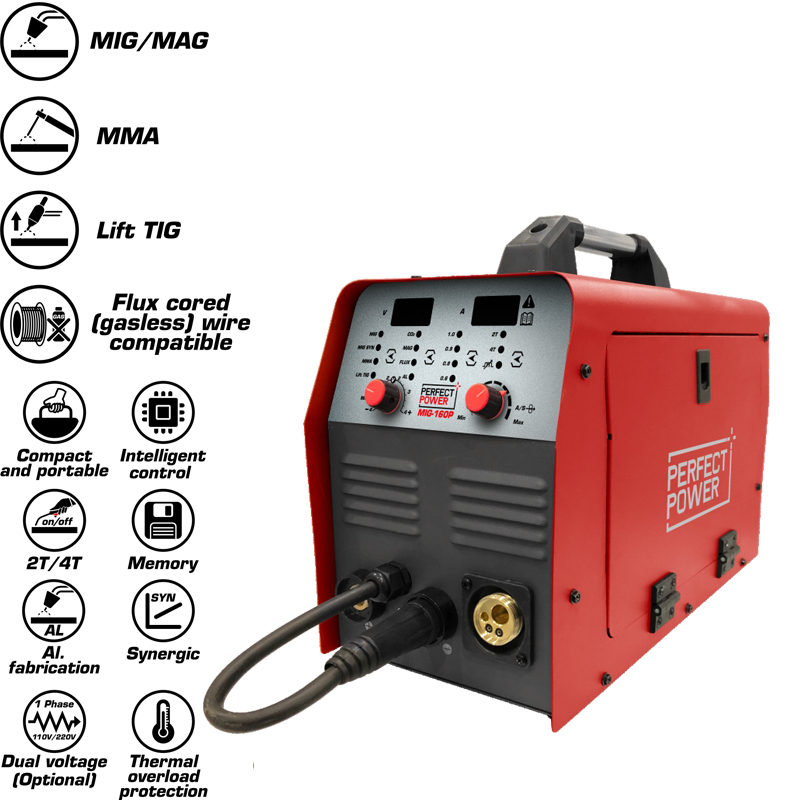

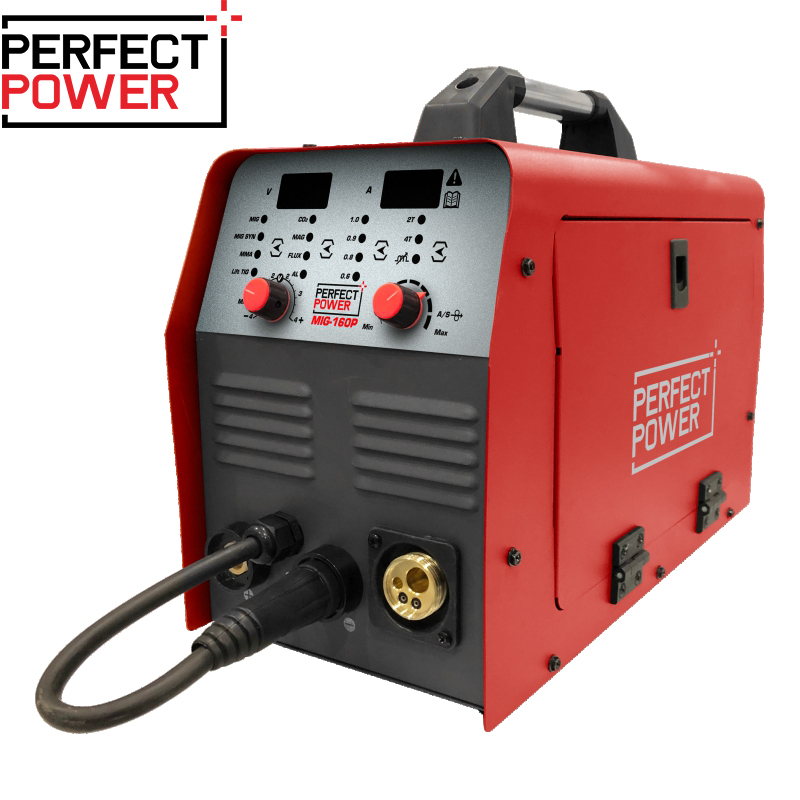

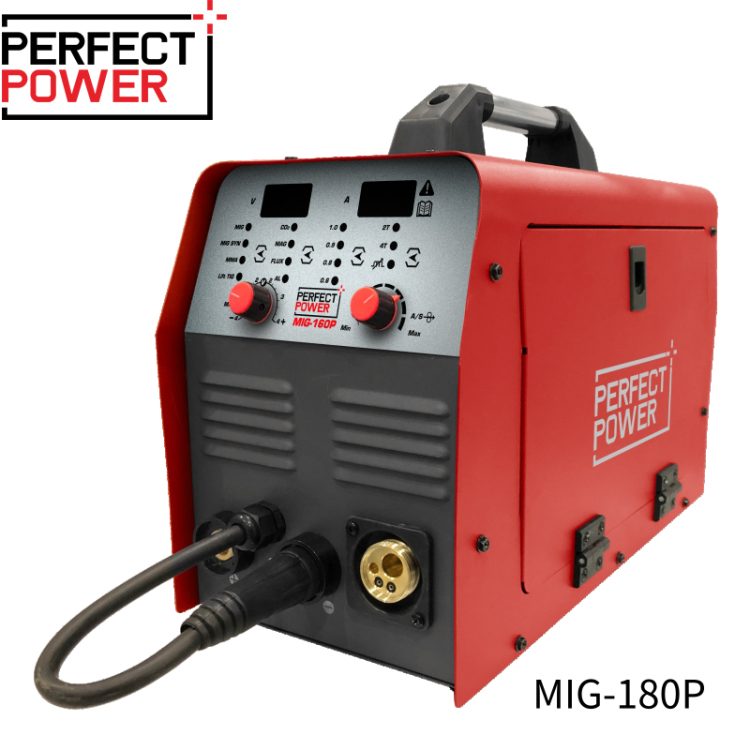

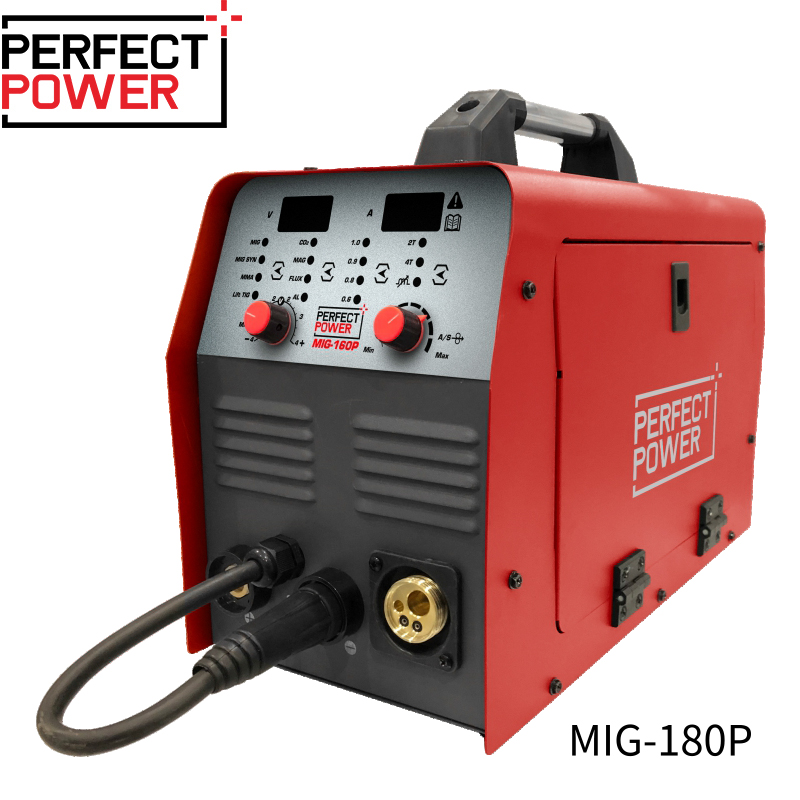

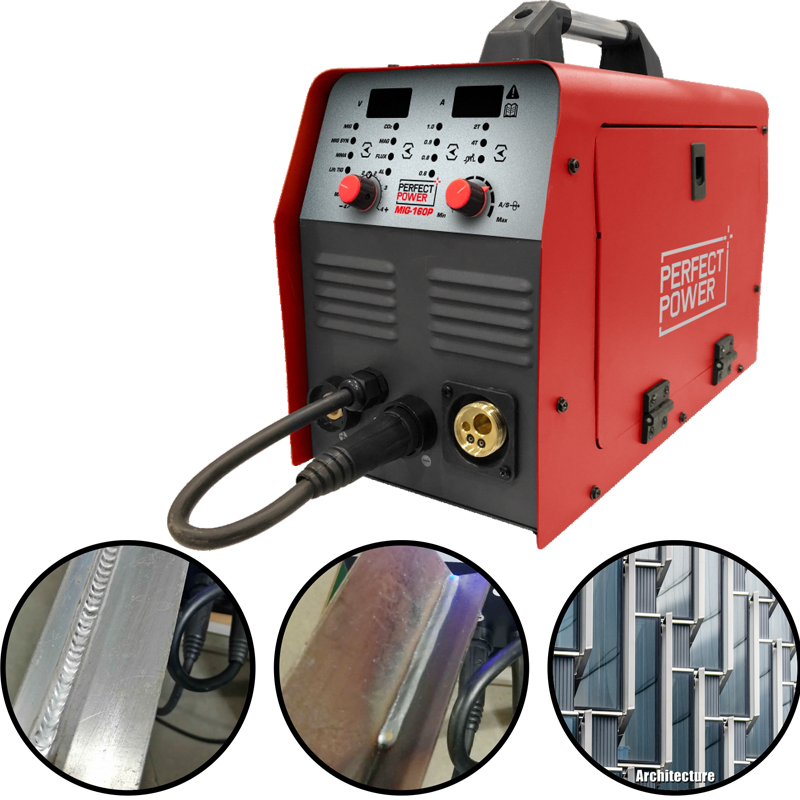

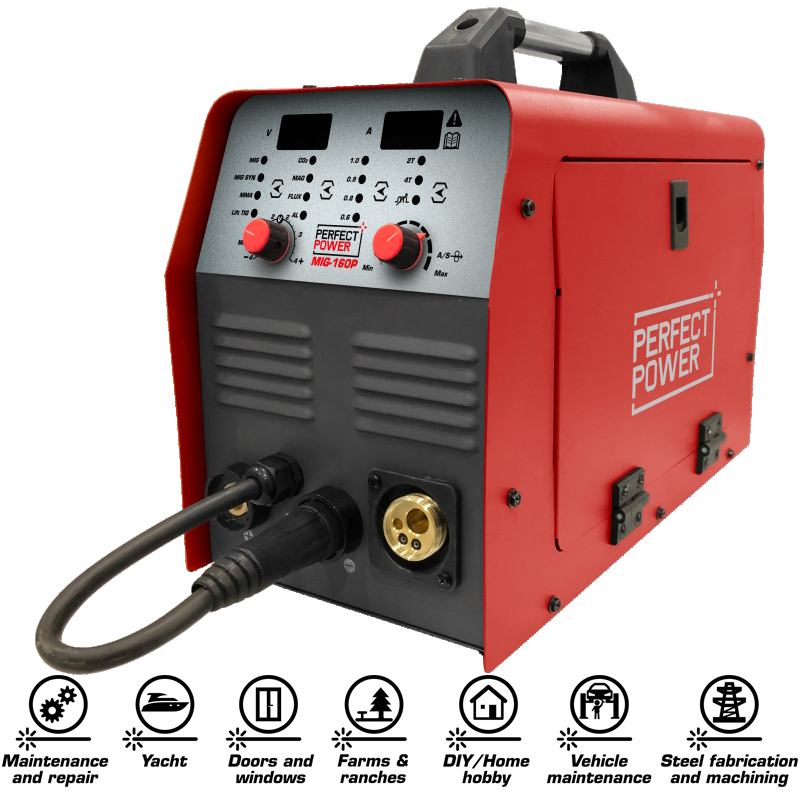

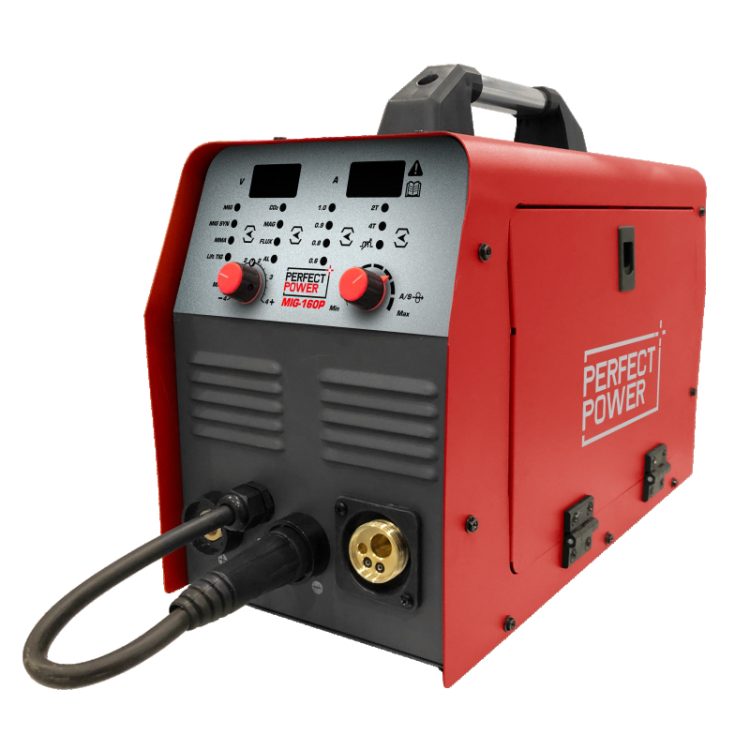

MIG-180P Gas MIG/MAG/Gasless Flux Core MIG IGBT Inverter Welding Machine

In Stock
Welder Custom LabelDouble-pulse MIG and Flux-cored welding
Welder Custom LabelEasy and safe to use
Welder Custom LabelExcellent for beginners

1. Multi-function welding – MIG/MAG, PULSED MIG, DOUBLE PULSED MIG, LIFT TIG, MMA, FLUX CORED Wire welding.
2. Digital controlled PULSED MIG and DOUBLE PULSED MIG for Aluminium welding(MIG-200DP).
3. 1KG/5KG wire spool capable.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.

Model

MIG-180P

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

6.4

Rated current input(A)

29

Rated output current(A)/voltage(V)

180/23.0(MIG) 160/26.4(MMA)

Welding current range(A)

30-180(MIG) 20-160(MMA)

Open circuit voltage DC(V)

62

Rated duty cycle(%)

60

Wire Feeding Speed(M/min)

2-15

IP grade

IP21

Insulation grade

H

Dimensions(mm)

560*270*405

Weight (KG)

15

Wire Melting Type

short circuit transfer
