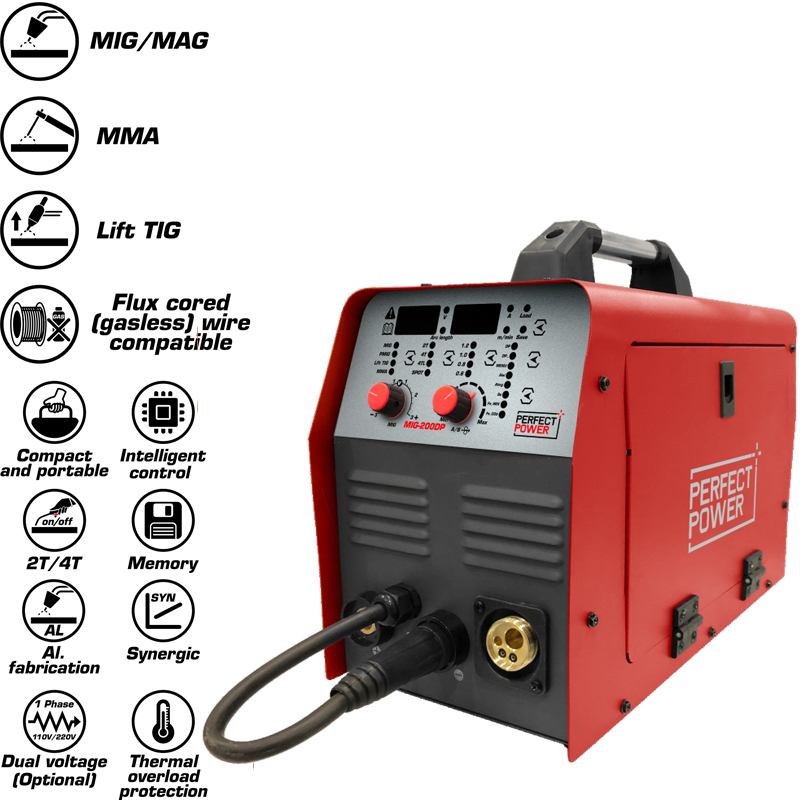

1. Multi-function welding – MIG/MAG, PULSED MIG, DOUBLE PULSED MIG, LIFT TIG, MMA, FLUX CORED Wire welding.

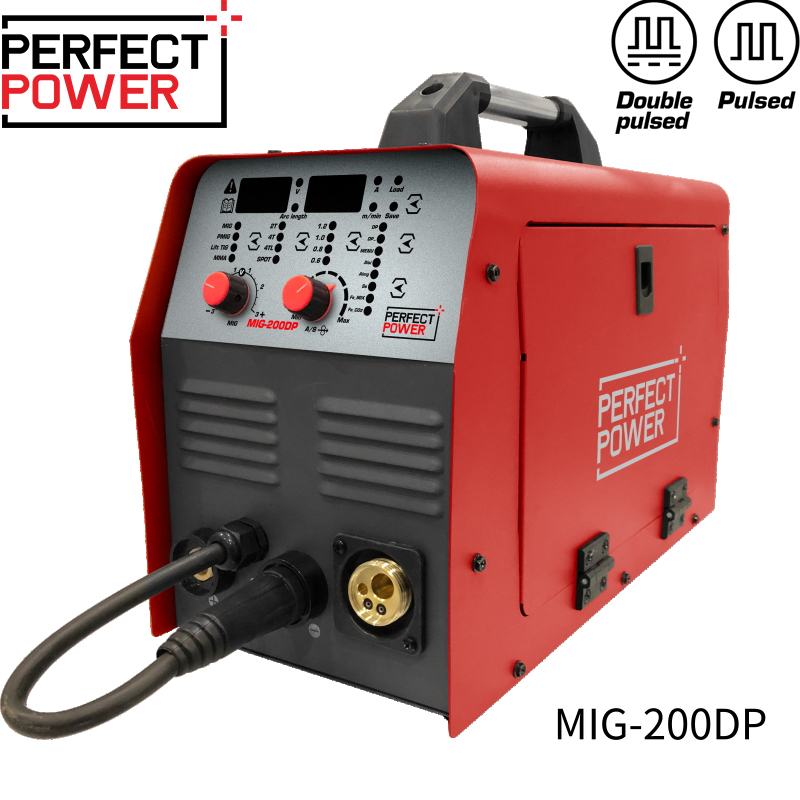

2. Digital controlled PULSED MIG and DOUBLE PULSED MIG for Aluminium welding(MIG-200DP).
3. 1KG/5KG wire spool capable.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.
Double-pulse MIG and Flux-cored weldingEasy and safe to useExcellent for beginners| Model | MIG-200DP |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 7.5 |
| Rated current input(A) | 34 |
| Rated output current(A)/voltage(V) | 200/24.0（MIG） |
| Welding current range(A) | 30-200（MIG） |
| Open circuit voltage DC(V) | 62 |
| Rated duty cycle(%) | 60 |
| Wire Feeding Speed(M/min) | 2-15 |
| IP grade | IP21 |
| Insulation grade | H |
| Dimensions(mm) | 560*270*405 |
| Weight (KG) | 16 |
| Wire Melting Type | globular transfer |
