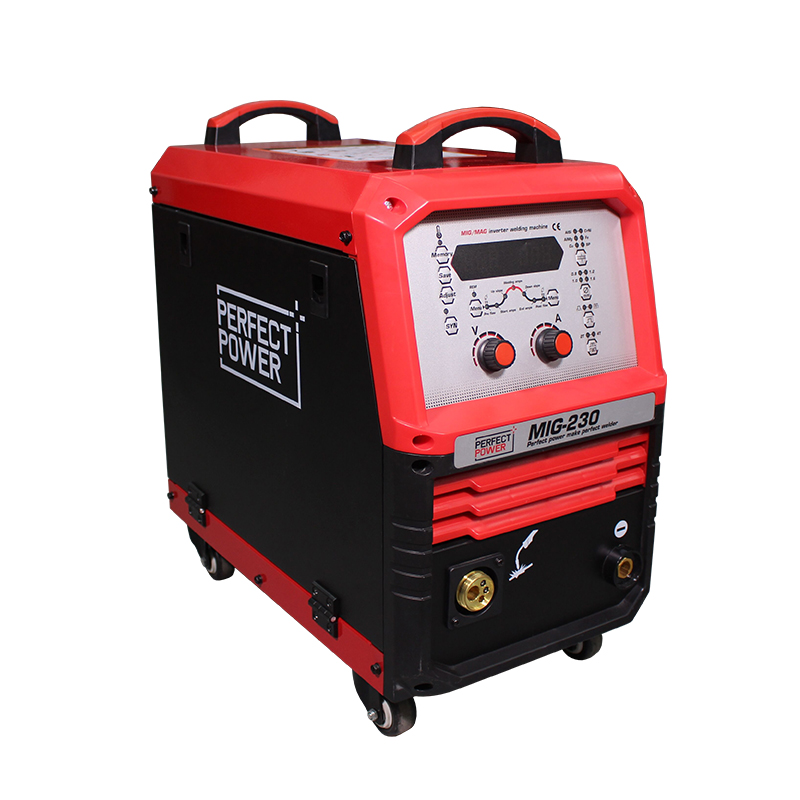

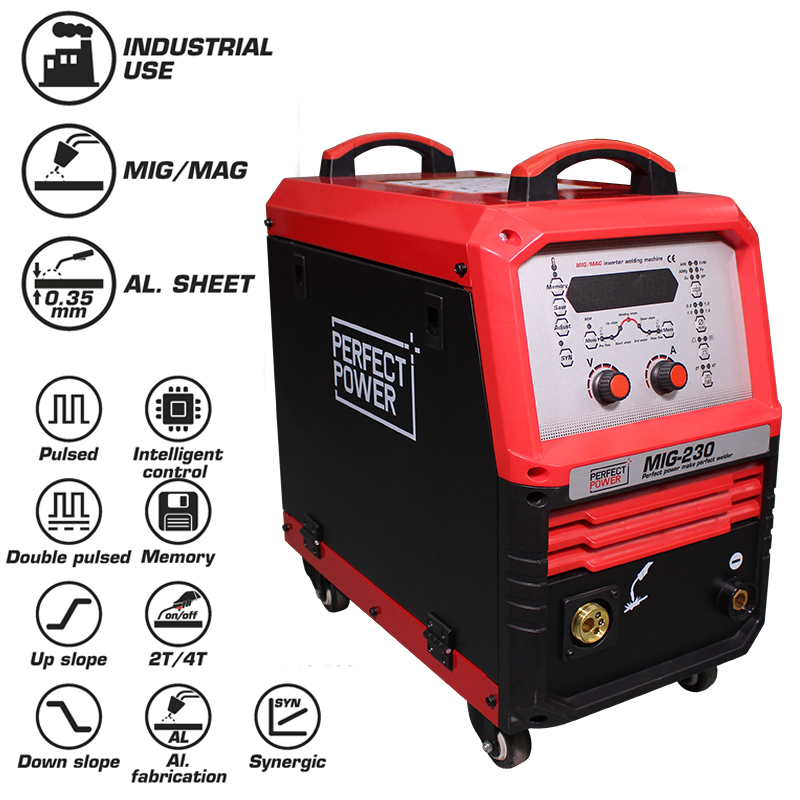

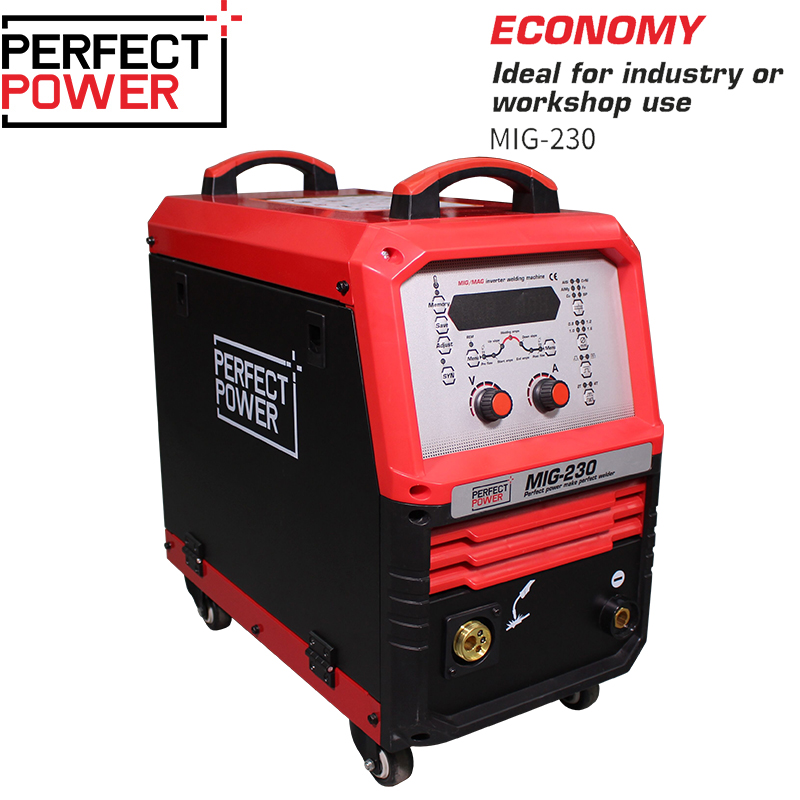

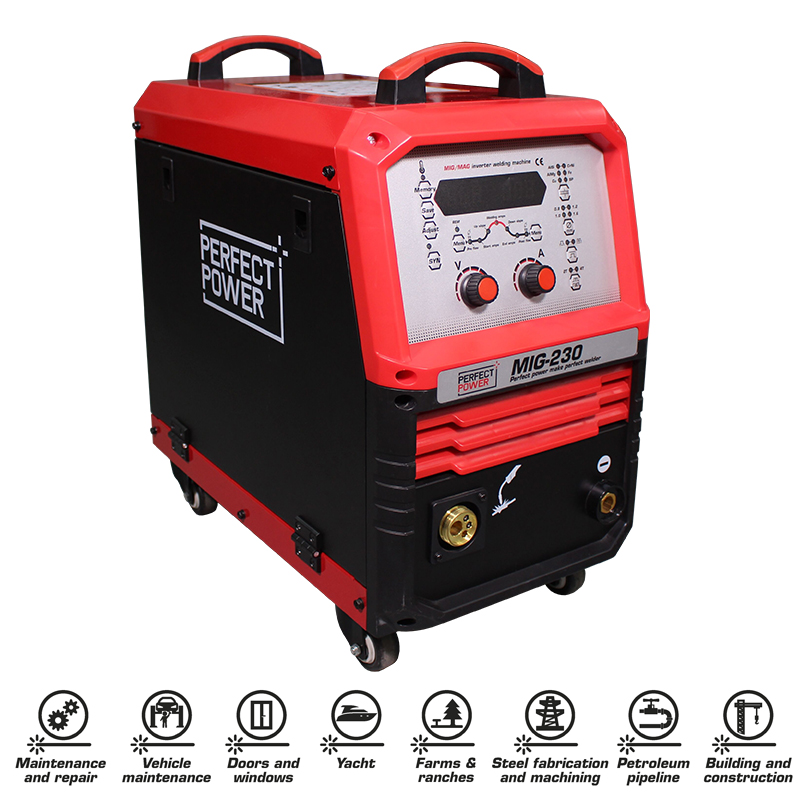

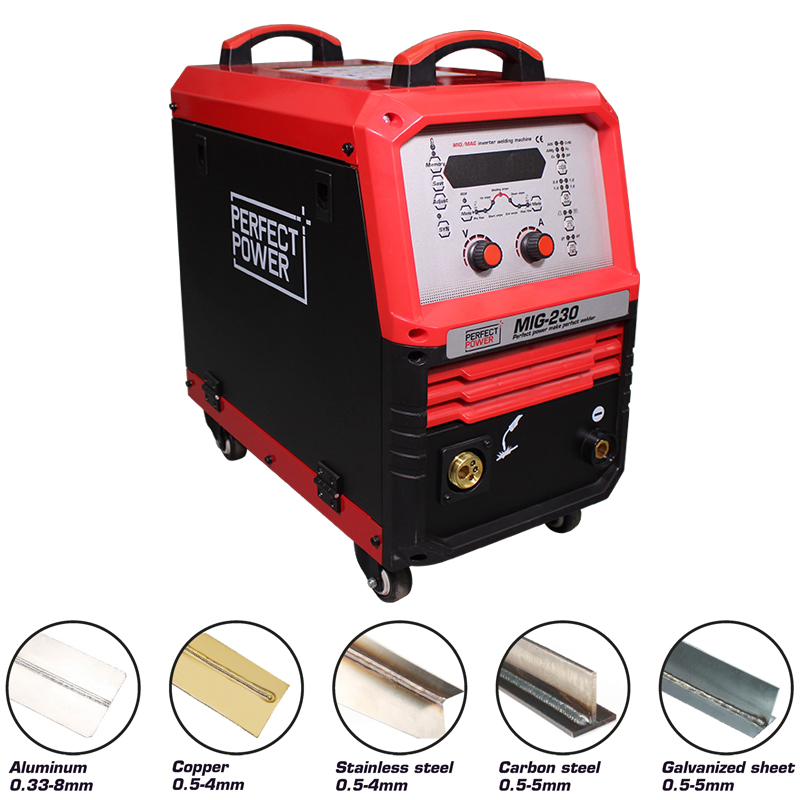

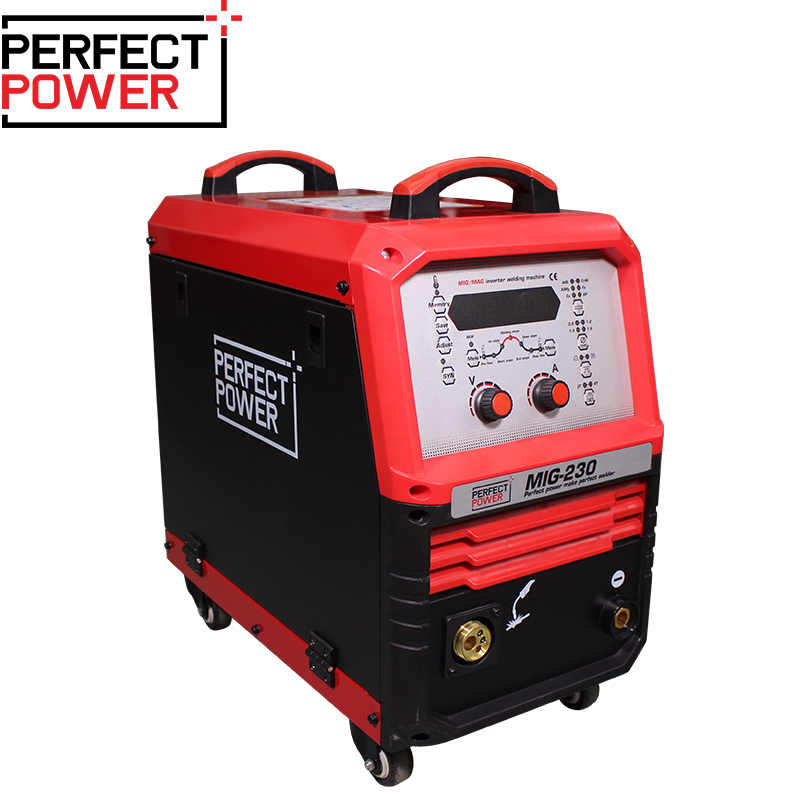

MIG-230 MIG MAG IGBT Inverter Welding Machine

In Stock
Welder Custom LabelDouble-pulse MIG and Flux-cored welding
Welder Custom LabelExcellent performance for the price
Welder Custom LabelHigh-quality MIG welder

Double-pulse MIG and Flux-cored welding, the Best welder for thin metal welding, User-friendly, Ideal for industry or workshop use

The MIG 230 is a powerful, heavy-duty wire feed welder that delivers professional results with superior arc quality. Provides a tailored welding experience packed with resource-saving features at every turn. Ideal for industry or workshop use.

1. Expert in welding thin metal material.
2. Patented digital control software technology.
3.Synergic function.
4. Inverter frequency: IGBT 35 kHz.
5. Welding parameters memoried function.
6. Overload protection&loss-phase and lack-voltage protection.
7. Could work with industrial robots via communication modules.
8. Welding process: MIG/MAG; pulsed MIG/MAG; double pulse MIG/MAG.

Model

MIG-230

Power input AC(V)

1ph 220V ±15% 3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

6.4

Rated current input(A)

29(380V) 9.4(220V)

Rated output current(A)/voltage(V)

220/25

Welding current range(A)

10-220A

Open circuit voltage DC(V)

65

Rated duty cycle(%)

60%

Wire Feeding Speed(M/min)

2-18

IP grade

IP21

Insulation grade

H

Dimensions(mm)

600*430*640

Weight (KG)

31

Wire Melting Type

globular transfer
