Description
1. Multi-function welding – MIG/MAG, MMA and FLUX CORED Wire welding.
2. Capable for 15kg and 5kg wire spool.
3. Stable arc with less spatter.
4. Ideal for use in outdoor and indoor conditions.
5. High cost performance
1. Multi-function welding – MIG/MAG, MMA and FLUX CORED Wire welding.
2. Capable for 15kg and 5kg wire spool.
3. Stable arc with less spatter.
4. Ideal for use in outdoor and indoor conditions.
5. High cost performance

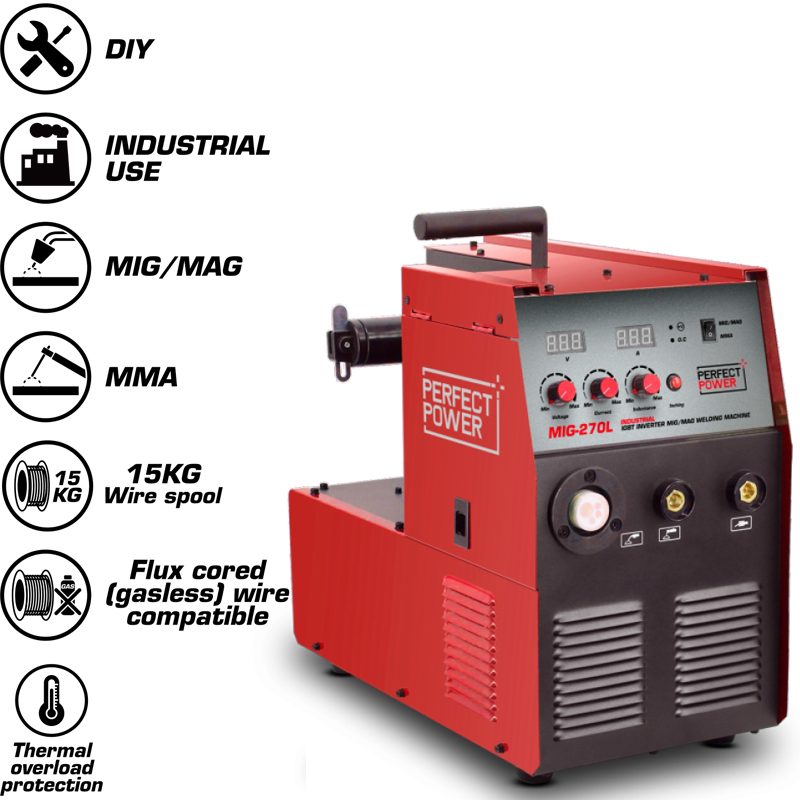

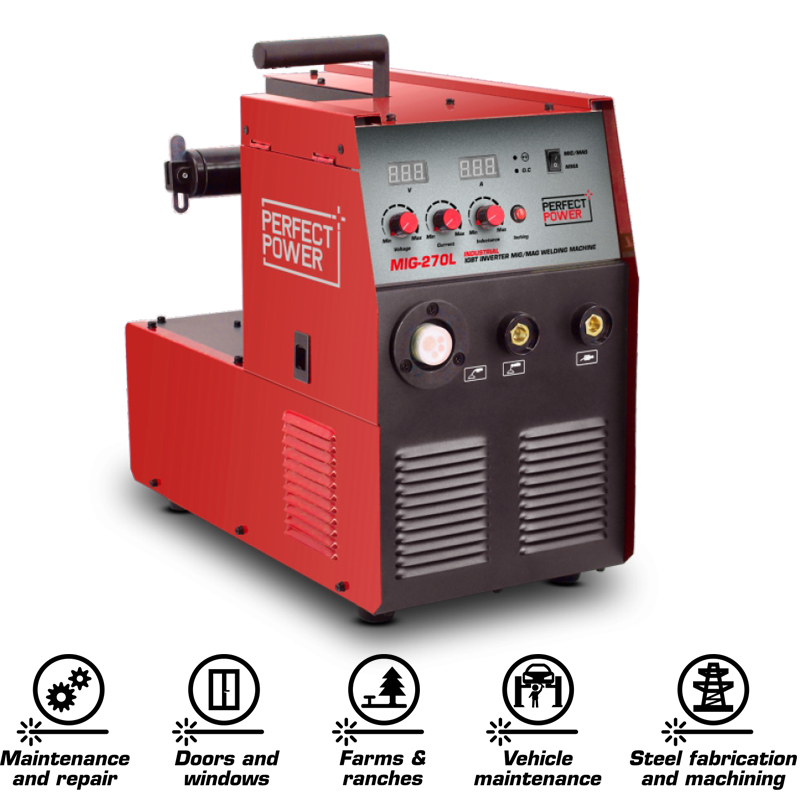

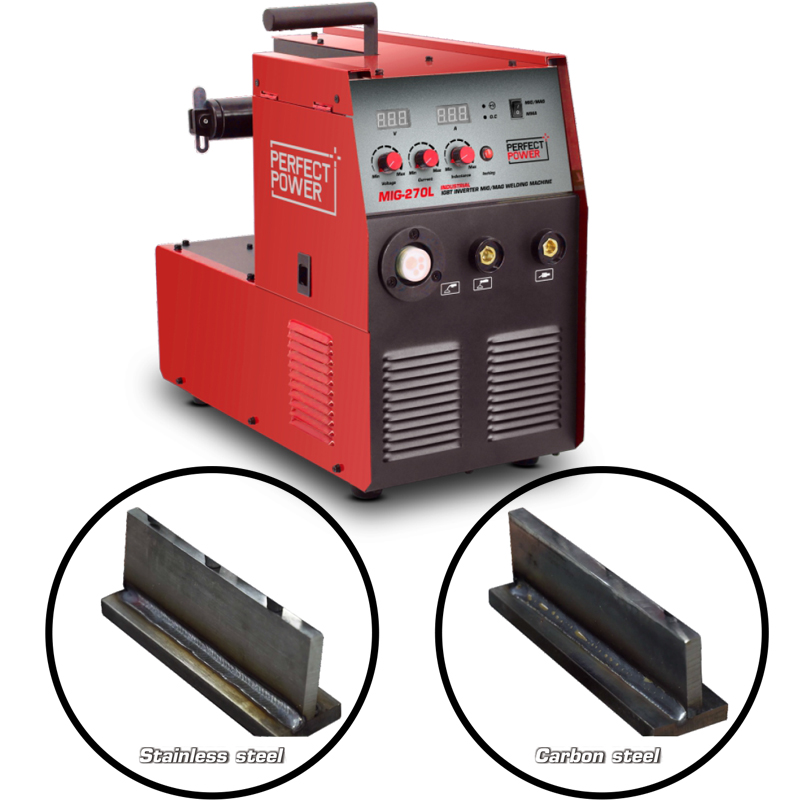

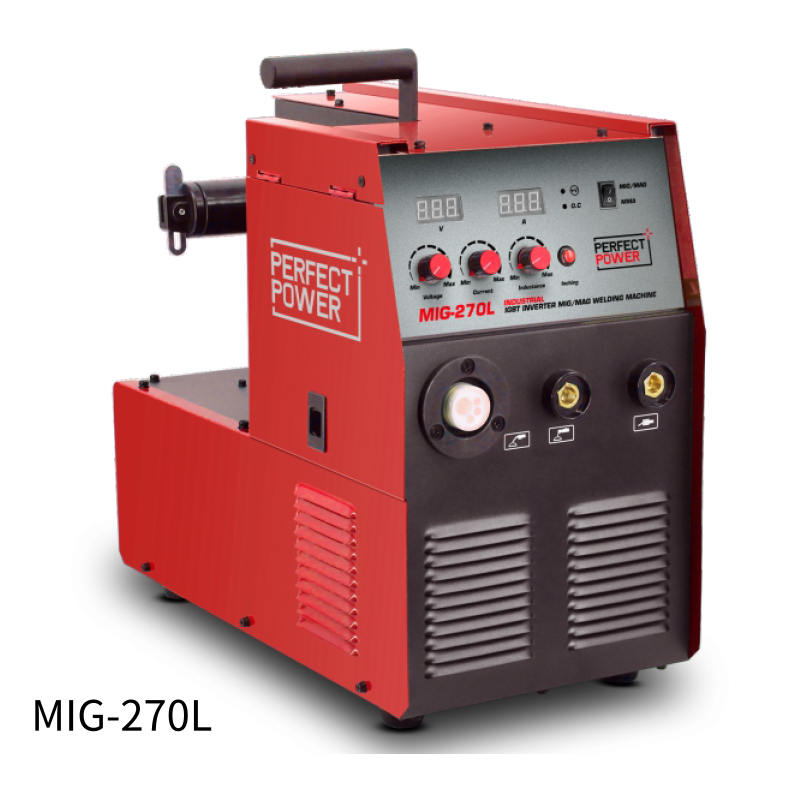

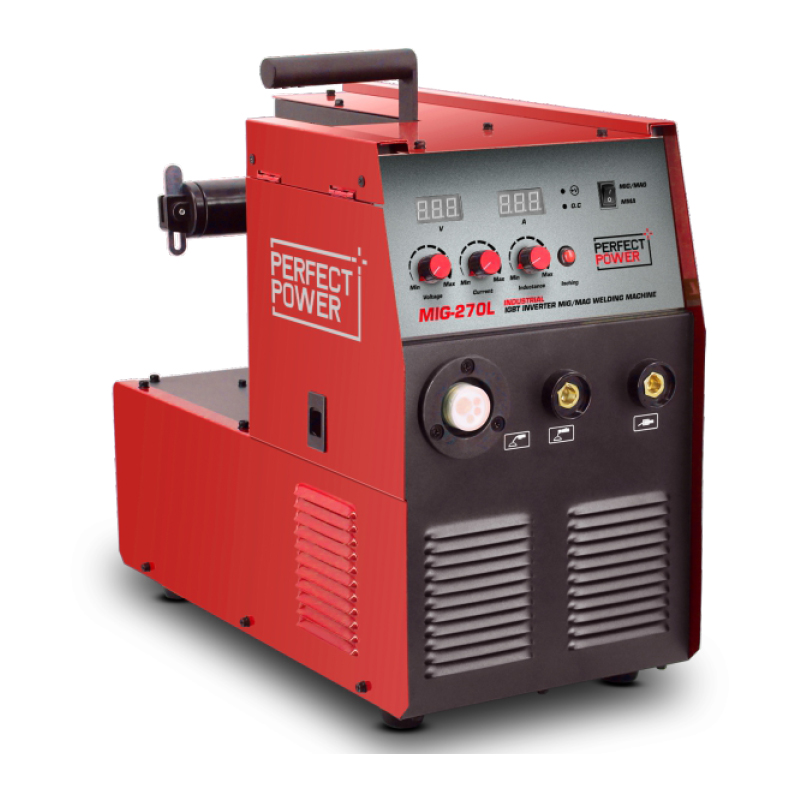

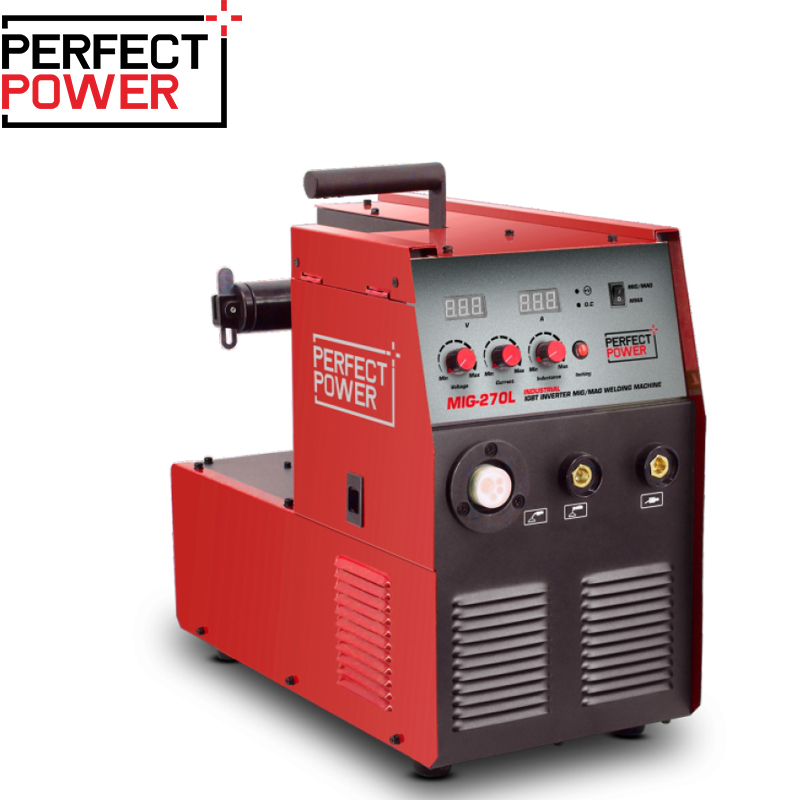

Model | MIG-270L |
---|---|
Power input AC(V) | 3pH 380V ±15% |
Power input frequency(Hz) | 50/60 |
Max. Load Power Capacity(kVA) | 10.5 |
Rated current input(A) | 16 |
Rated output current(A)/voltage(V) | 270/27.5 |
Welding current range(A) | 50-270 |
Open circuit voltage DC(V) | 52 |
Rated duty cycle(%) | 60 |
Wire Feeding Speed(M/min) | 2-24 |
IP grade | IP21S |
Insulation grade | H |
Dimensions(mm) | 608*353*568 |
Weight (KG) | 28 |
Wire Melting Type | short circuit transfer |
With an industrial-grade IGBT module and a fully digital control system, this multifunction welder is perfect for industrial use. It offers MIG/MAG, Gasless flux cored wire welding, and MMA capabilities, all with independently adjustable welding parameters and stable arc output for superior welding quality. And with less spatter and a high metal deposition rate, the welds are clean and precise. The portable separated wire feeder with control cables and control keys allows for heavy industrial use with a 20kg wire spool capacity. With overheat, overcurrent, and overvoltage protection, this welding machine offers safe and efficient welding for all your industrial needs!
The MIG-350W MIG welder is the ultimate welding machine for industrial use, featuring a separate wire feeder and water cooling for high-tensile steel, mild steel, stainless steel, and aluminum. Its patented digital control software technology, synergic function, and welding parameters memorized function allow for an efficient and tailored welding experience. This machine also offers overload protection, loss-phase, and lack-voltage protection, making it safe and reliable. The MIG-350W is an expert in welding thick metals, and its high-speed current capability delivers stable arcs and high efficiency. Plus, it can work with an industrial robot via communication modules, making it a versatile and essential tool for any welding project.
The TIG-315P multi-function welding machine is a versatile tool with AC TIG, AC pulsed TIG, DC TIG, DC pulsed TIG, MMA, and Auto welding functions. It can handle a variety of materials, including steel, carbon steel, stainless steel, aluminum, and magnesium with thicknesses ranging from 1.0mm to 10mm. It also supports tungsten electrodes with diameters from 1.0mm to 5.0mm, providing users with great flexibility in their welding projects. With a wide range of functions and compatibility, this welding machine is a great choice for professional welders and DIY enthusiasts alike.
