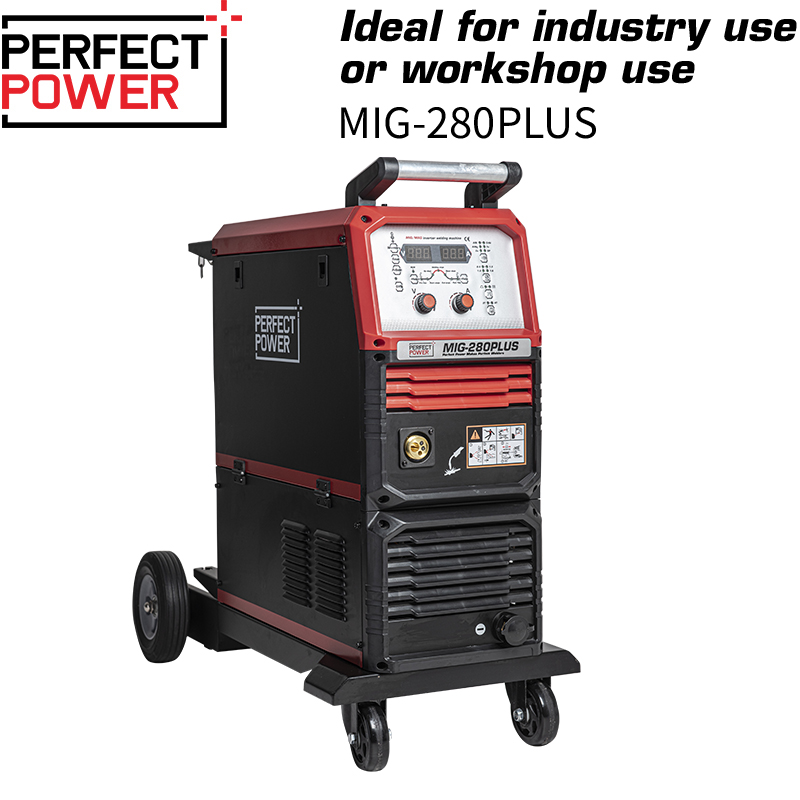

Ideal for industry or workshop use with gas cylinder rack
Double-pulse MIG and Flux-cored welding, the Best welder for thin metal welding, User-friendly, Spool gun optional ready for aluminum, Ideal for industry or workshop use with gas cylinder rack

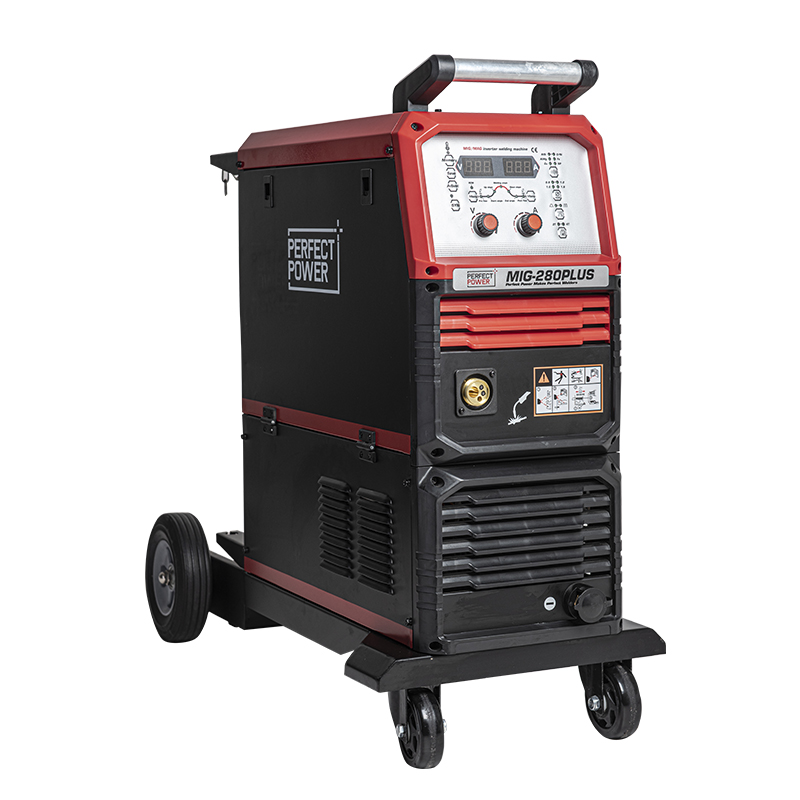

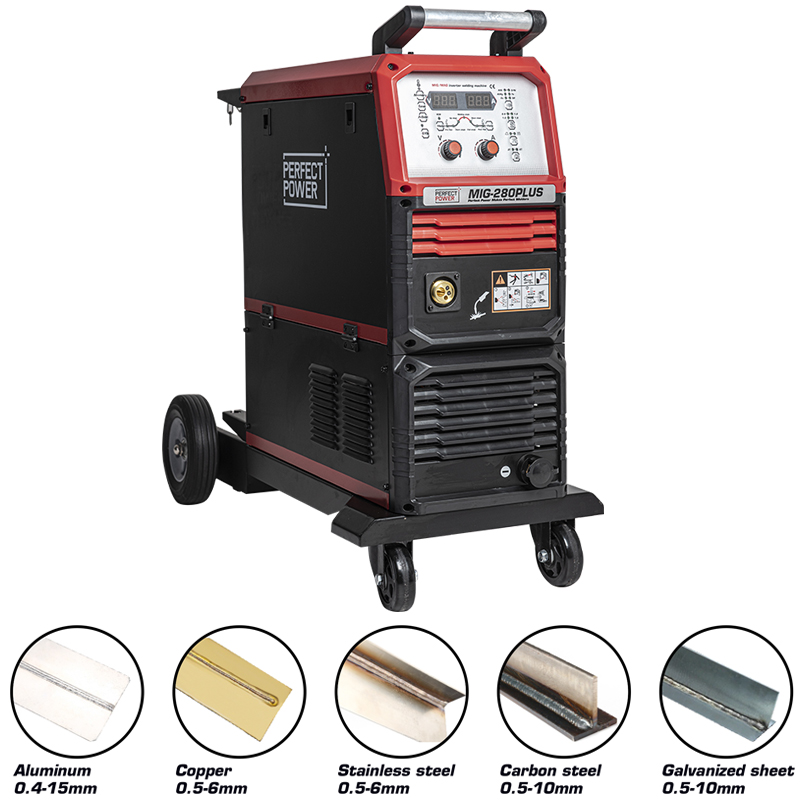

The MIG-2380is an ideal welding machine for industry or workshop use with a gas cylinder rack. Made to surmount the challenges of welding and MIG brazing high-tensile steel, mild steel, stainless steel, and aluminum. This machine provides a tailored welding experience packed with resource-saving features at every turn.
FEATURES
1. Patented digital control software technology.
2. Synergic function.
3. Welding parameters memoried function.
4. Overloadprotection&loss-phase and lackvoltage protection.
5. Capable of both thin and moderately thick metal material welding.
6. Could work with the industrial robots via communication modules.
7.Welding process MIG/MAG; pulsed MIG/MAG;doublepulseMIG/MAG.
8. High-speed current capability achievesstablearcand high efficiency.
Model | MIG-280PIUS |
---|---|
Power input AC(V) | 1ph 220V ±15% 3ph 380V ±15% |
Power input frequency(Hz) | 50/60 |
Max. Load Power Capacity(kVA) | 9.2 |
Rated current input(A) | 42(380V) 14(220V) |
Rated output current(A)/voltage(V) | 250/26.5 |
Welding current range(A) | 25-250 |
Open circuit voltage DC(V) | 45 |
Rated duty cycle(%) | 60% |
Wire Feeding Speed(M/min) | 2-21 |
IP grade | IP21 |
Insulation grade | H |
Dimensions(mm) | 940*460*650 |
Weight (KG) | globular transfer |
Wire Melting Type | short circuit transfer |
