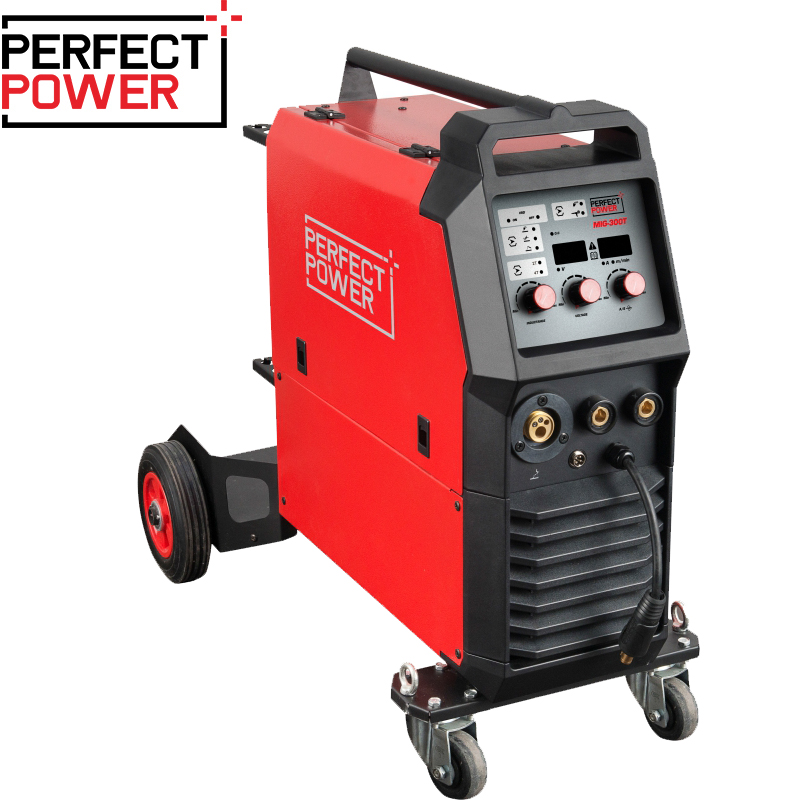

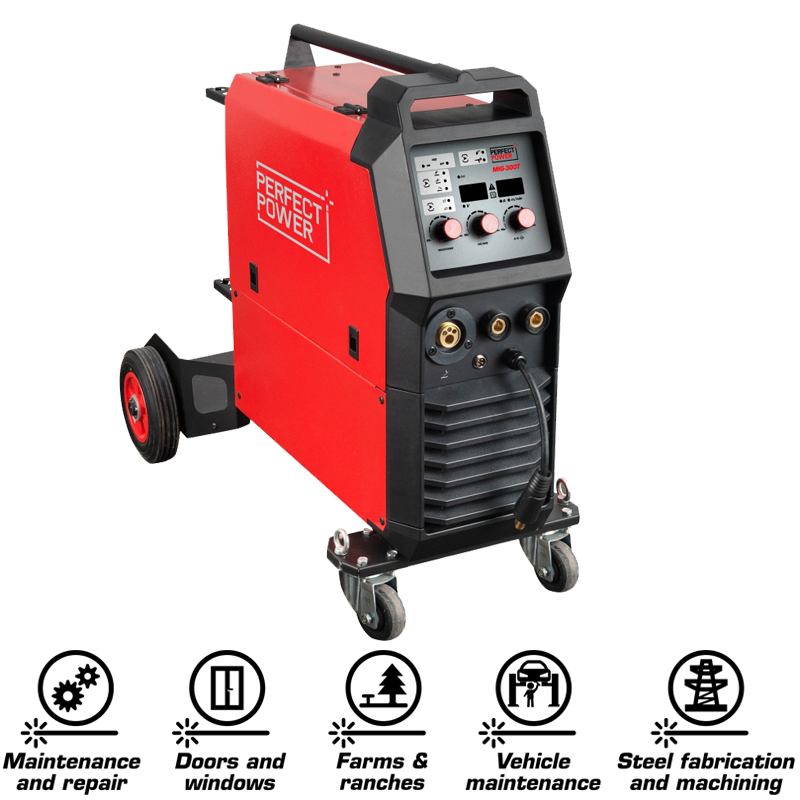

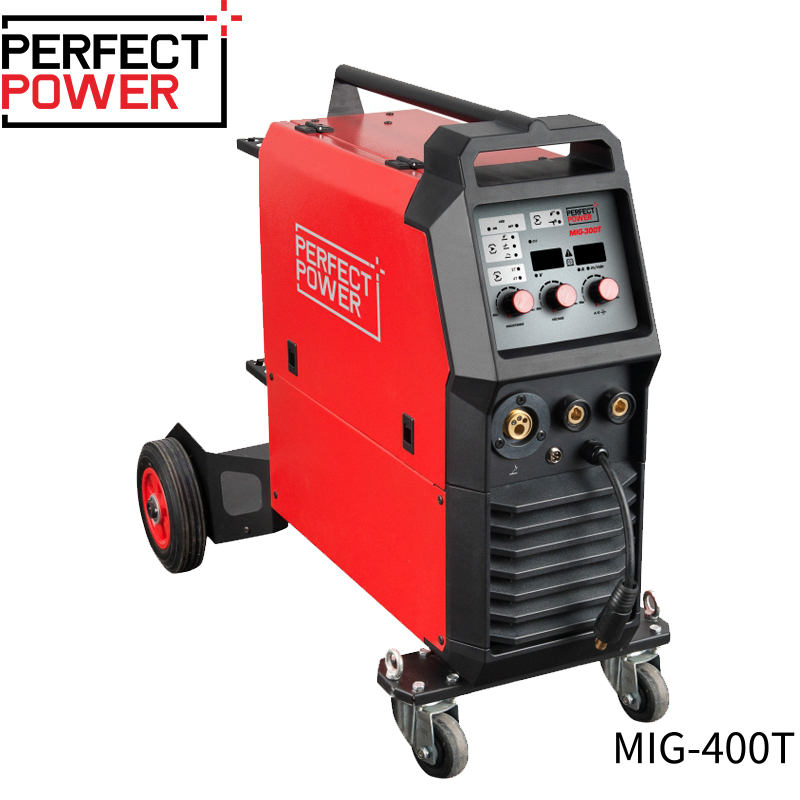

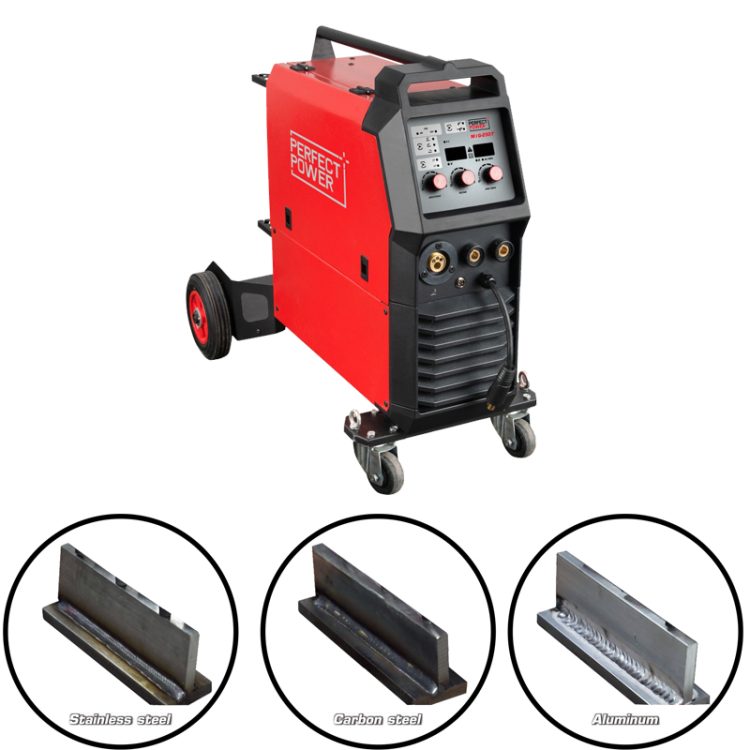

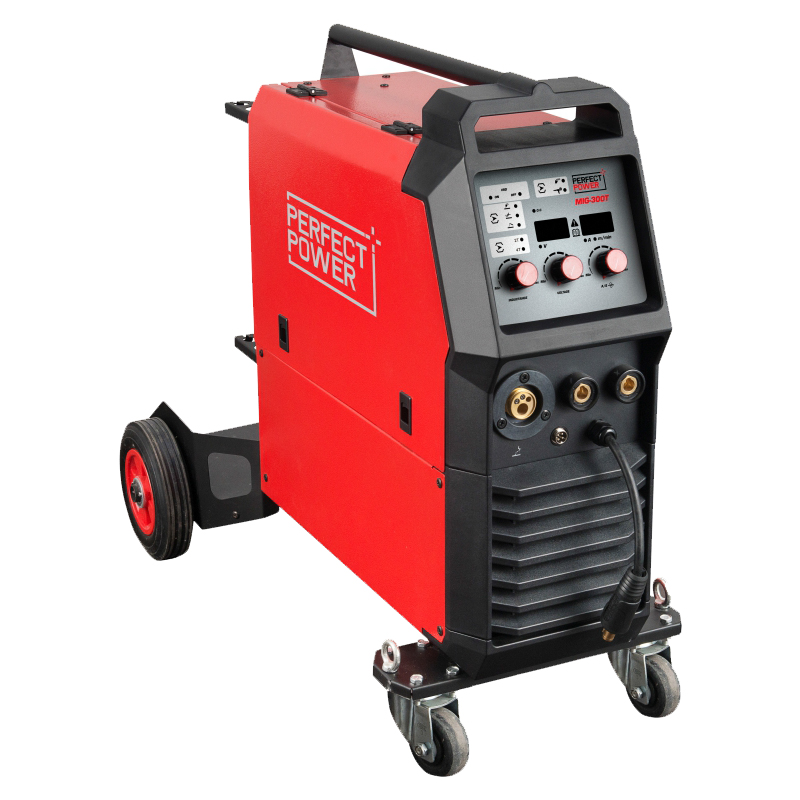

MIG-400T MIG MAG IGBT Inverter Welding Machine

In Stock

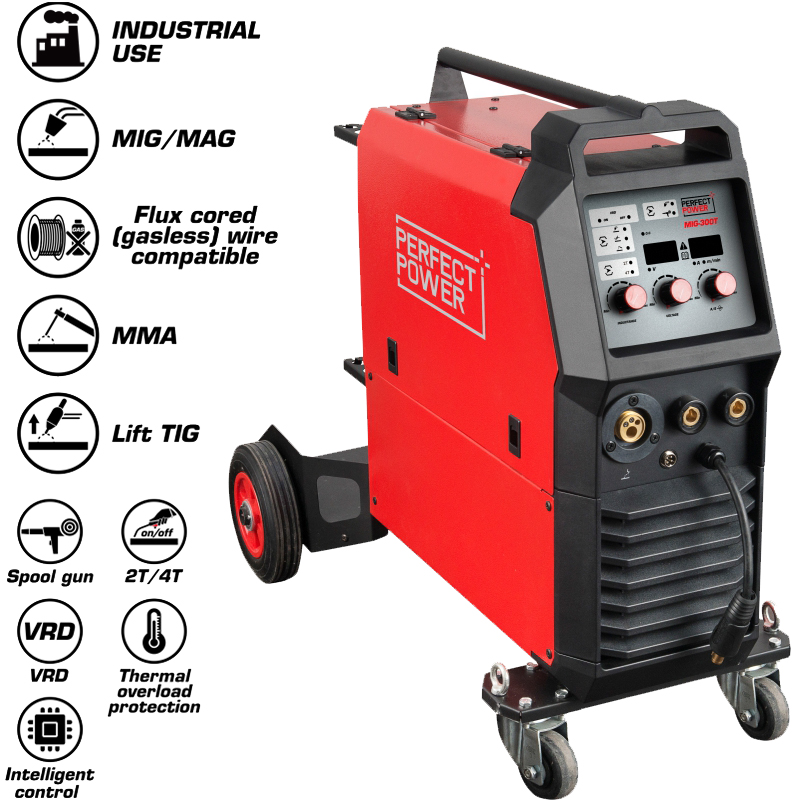

1. Multi-function welding – MIG/MAG, LIFT TIG, MMA, Spool Gun, and FLUX CORED Wire welding.
2. Capable for 15kg wire spool.
3. Professional MMA welding process with VRD function.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.
7. Standard equipped with cylinder rack.

Model

MIG-400T

Power input AC(V)

3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

17.2(MIG) 18.2(MMA)

Rated current input(A)

26.2(MIG) 27.7(MMA)

Rated output current(A)/voltage(V)

400/34.0(MIG) 400/36.0(MMA)

Welding current range(A)

50-400(MIG) 25-400(MMA)

Open circuit voltage DC(V)

62

Rated duty cycle(%)

60

Wire Feeding Speed(M/min)

2.4-24

IP grade

IP21

Insulation grade

H

Dimensions(mm)

1000x430x795

Weight (KG)

52.5

Wire Melting Type

spray transfer
