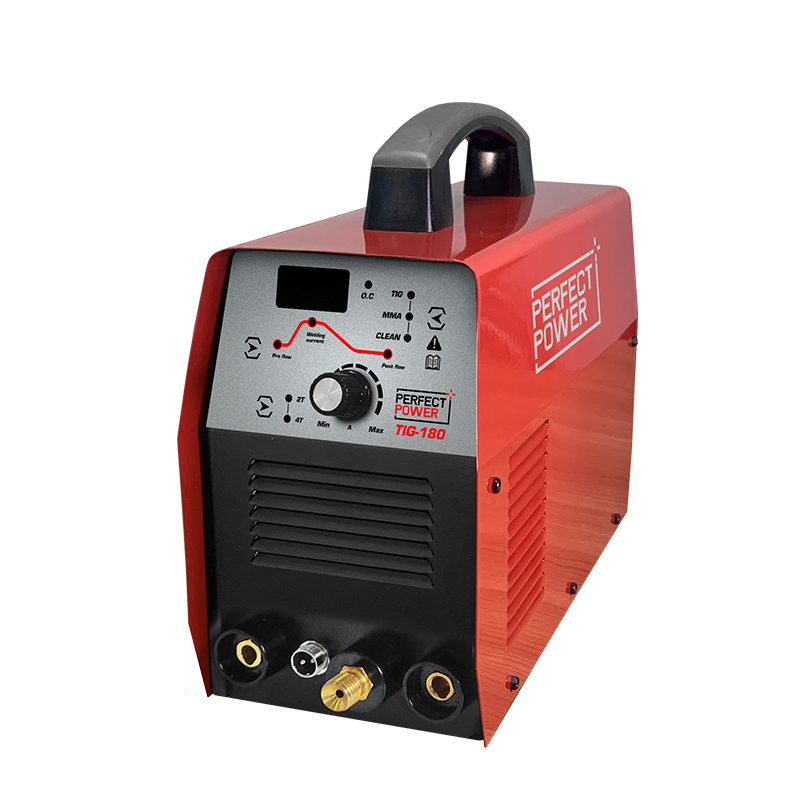

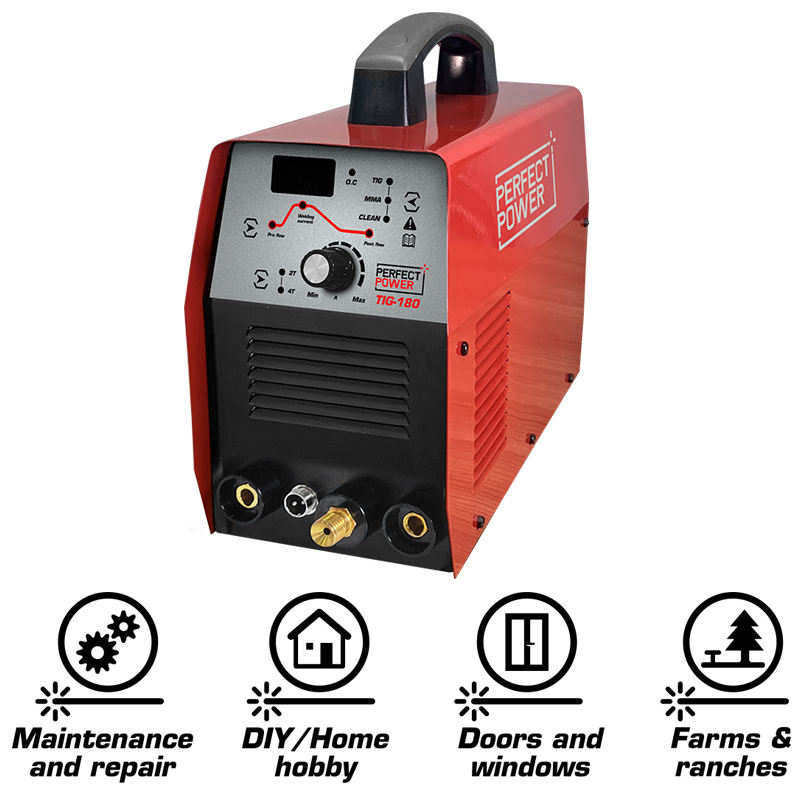

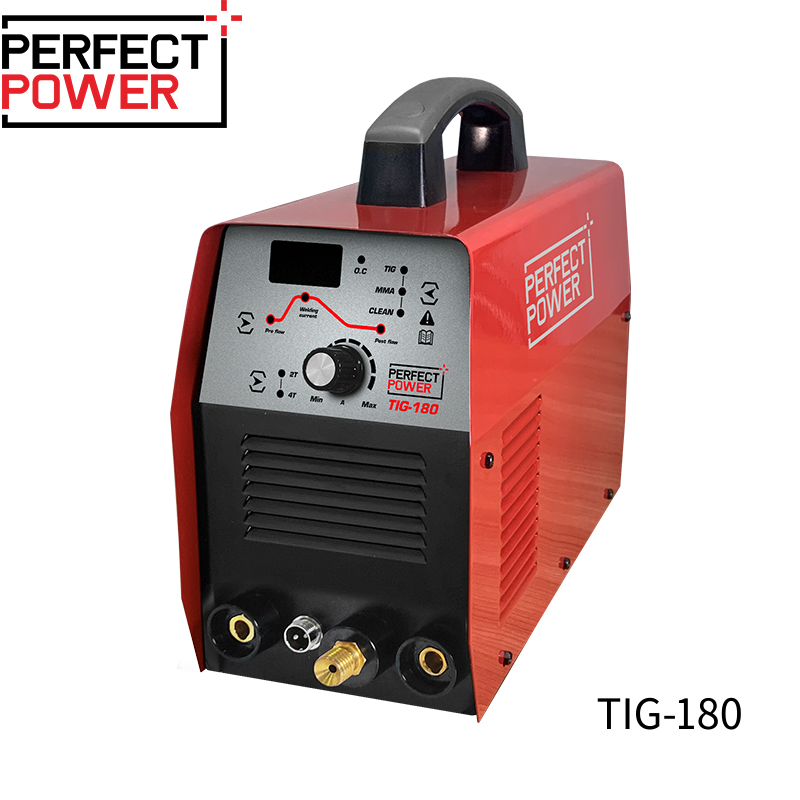

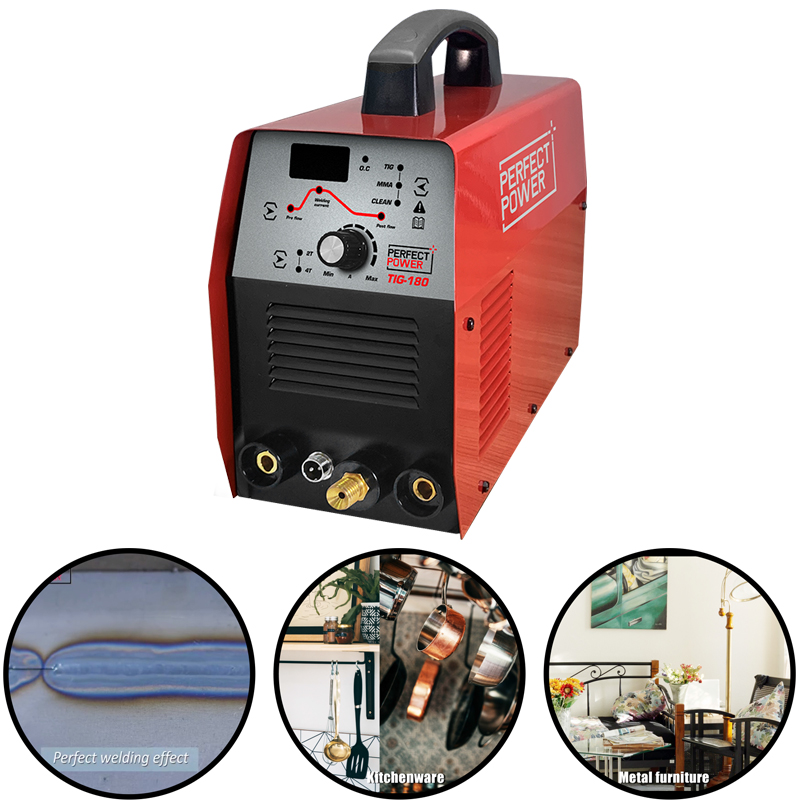

TIG-180 TIG Inverter Welding Machine With Clean Function

In Stock
Welder Custom LabelEasy and safe to use
Welder Custom LabelExcellent for beginners
Welder Custom LabelExcellent performance for the price

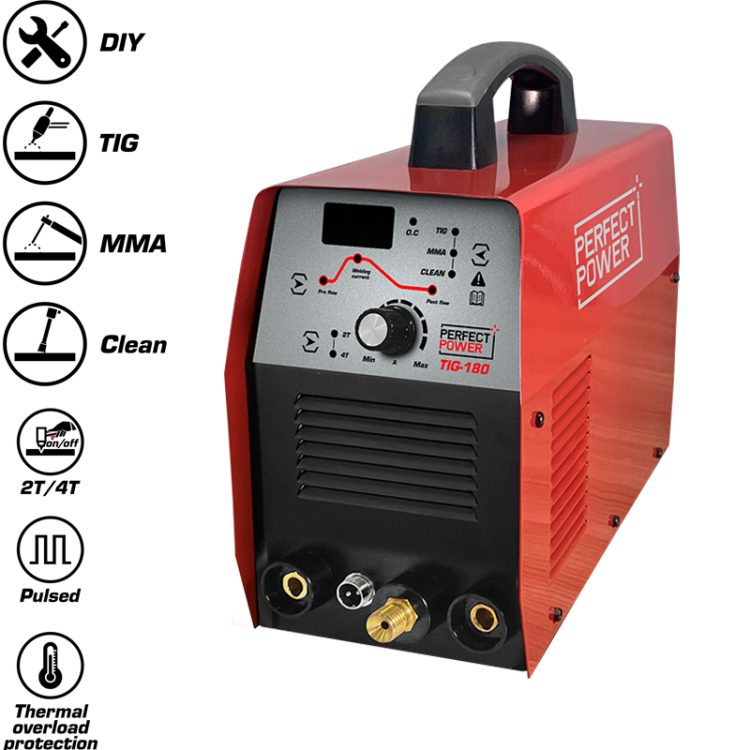

1. Multi-function welder: DC TIG, Pulsed TIG, MMA, and Clean function.
2. High-frequency arc start with a high success rate.
3. Clean function, to clean the rust and oil on the surface of the material, like carbon steel and stainless steel.
4. 2T/4T function, adjustable Pre-Flow, and Post-Flow.
5. Exceptional energy-saving performance and high reliability.
6. Pulsed function only for TIG-160P/180P/200P.

Model

TIG180

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

5.3

Rated current input(A)

24

Rated output current(A)/voltage(V)

180/17.2(TIG) 160/26.4(MMA)

Welding current range(A)

10-180(TIG) 20-160(MMA)

Open circuit voltage DC(V)

60

Rated duty cycle(%)

60

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

400*155*310

N.W.(kg)

5.2

TIG-180 TIG Welder Video
