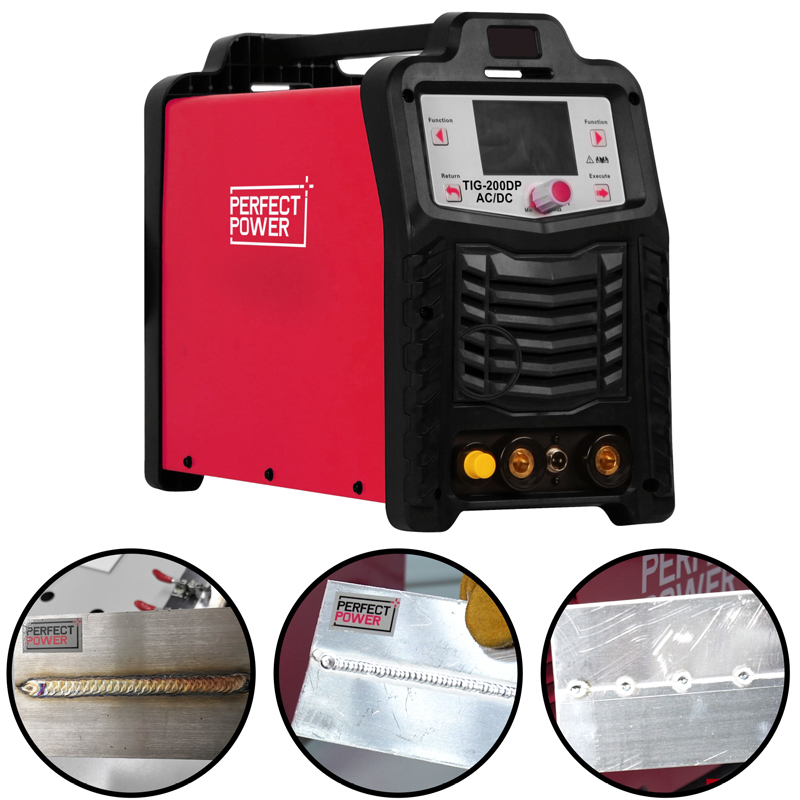

TIG-200DP 110V/220V IGBT Inverter TIG AC DC Welding Machine

In Stock

1. With intelligent LCD visual operation, TIG-200DP AC/DC is a professional TIG welding solution for all types of metal materials like steel, stainless steel, aluminum, copper, titanium, etc.

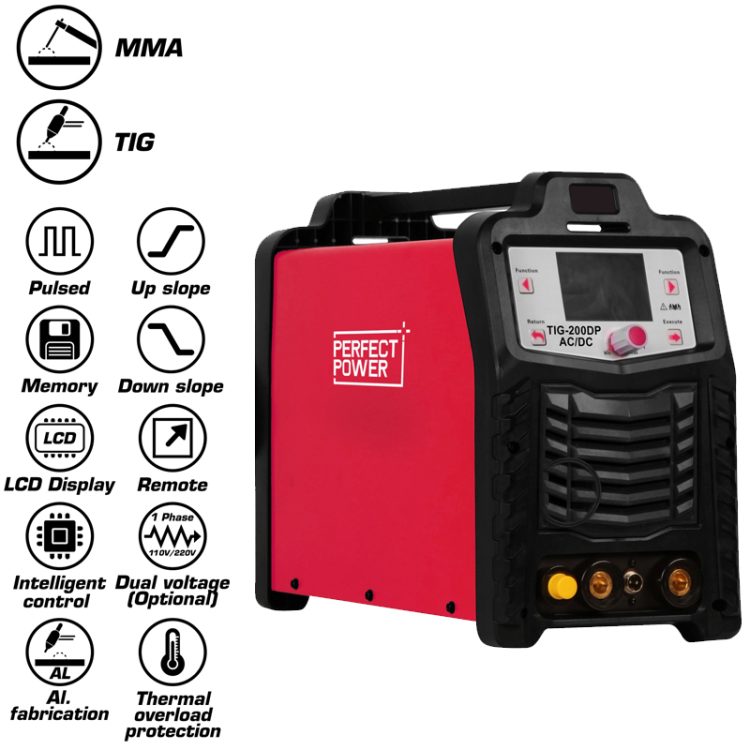

2. Multi-function welding – AC TIG, AC pulse TIG, DC TIG, DC pulse TIG, MMA, and Auto welding

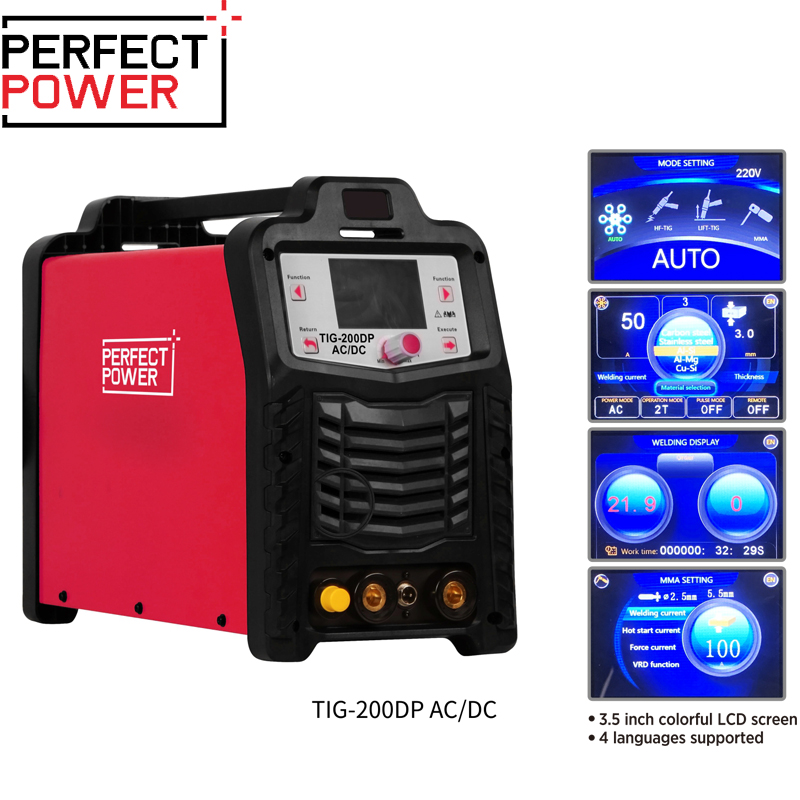

3. Intelligent visual operation instruction make your work easy
4. Adjustable clean width and clean scope
5. Optional torch with amperage control & optional foot pedal switch
6. Digital control technology and one-knob intelligent control panel
7. Capable for different shapes weldings, like a butt joint, corner joint, T-joint, lap joint, and cruciform joint

Model

TIG-200DP AC/DC

Power input AC(V)

1ph 110V/220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

6.6

Rated current input(A)

28.0(TIG,220V )/ 43.6(MMA,220V )
27.6(TIG,110V )/ 46.3(MMA,110V )

Rated output current(A)/voltage(V)

200/18.0(TIG,220V ), 200/28.0(MMA,220V )
120/14.8(TIG,110V ), 120/24.8(MMA,110V )

Welding current range(A)

10-200(TIG,220V )/30-200(MMA,220V )
10-120(TIG,110V )/30-120(MMA,110V )

Open circuit voltage DC(V)

62

Rated duty cycle(%)

30

IP grade

IP21

Insulation grade

F

Dimensions(mm)

530*300*470

N.W.(kg)

16/20

TIG-200DP AC DC TIG Welder
