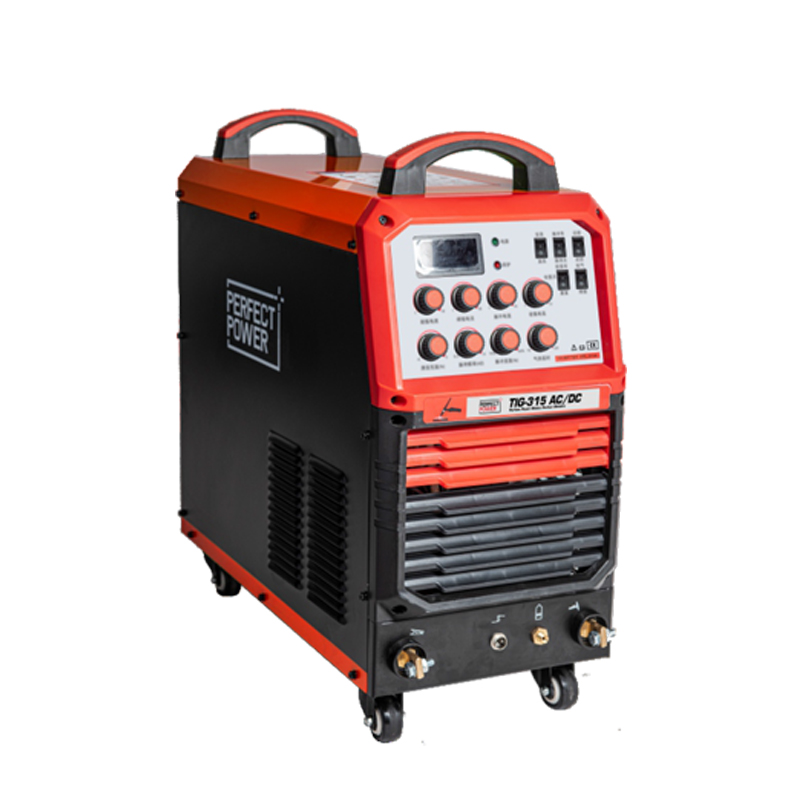

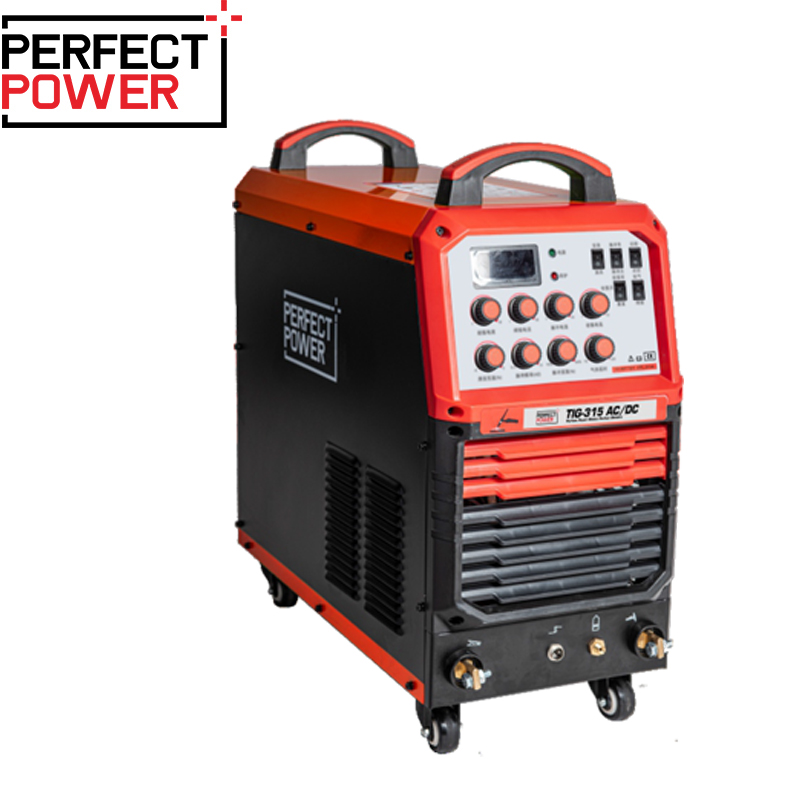

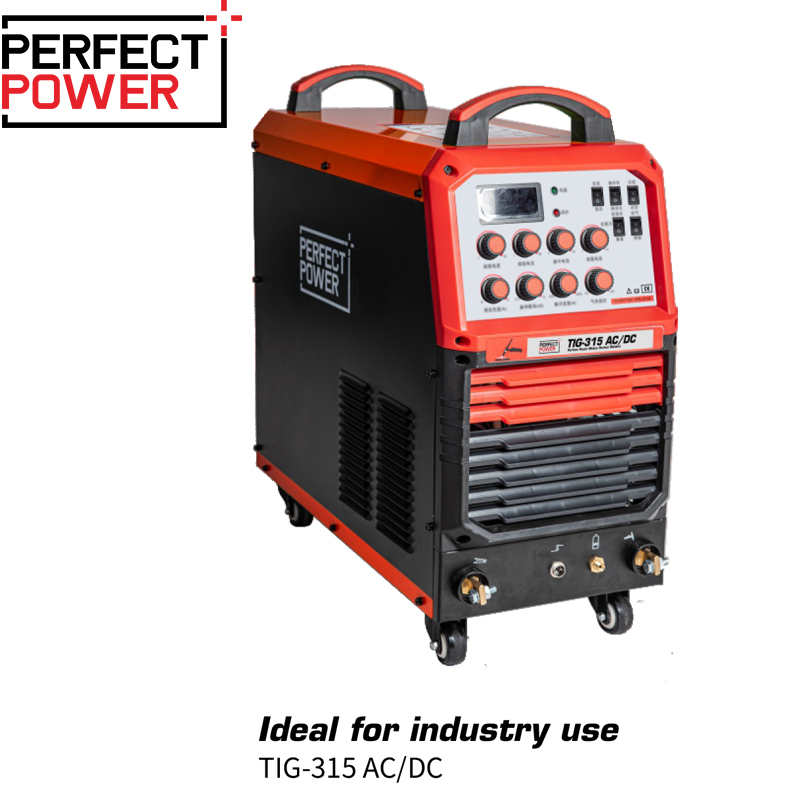

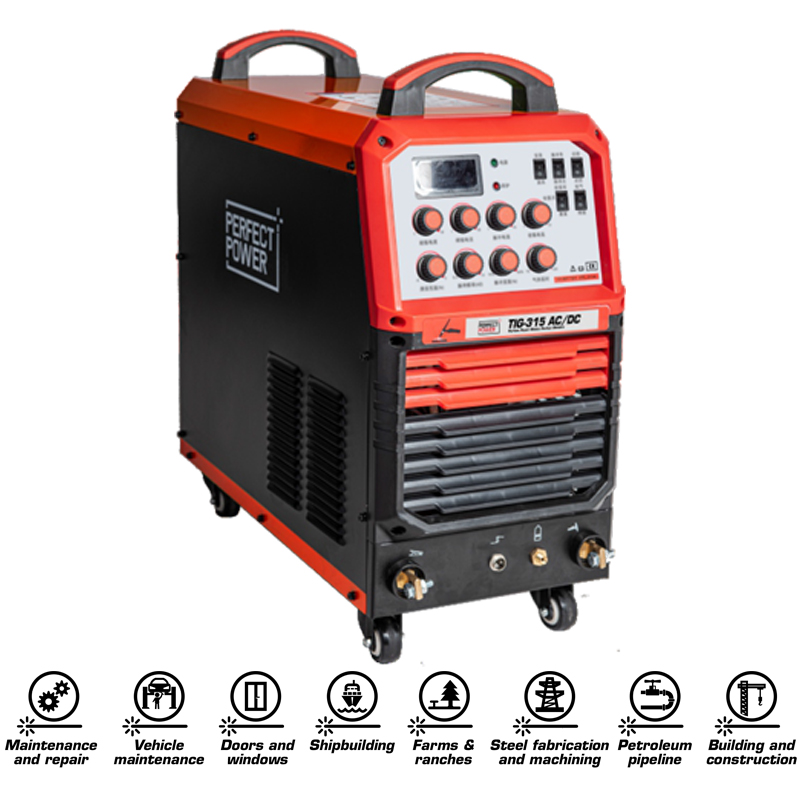

TIG-315 TIG Inverter Welding Machine

In Stock
Welder Custom LabelAccessories are included in the package
Welder Custom LabelCan be used as a TIG or stick welder

1.Adjustable AC frequency per your needs.
2.PWM control technology enables fast and stable arc starting.

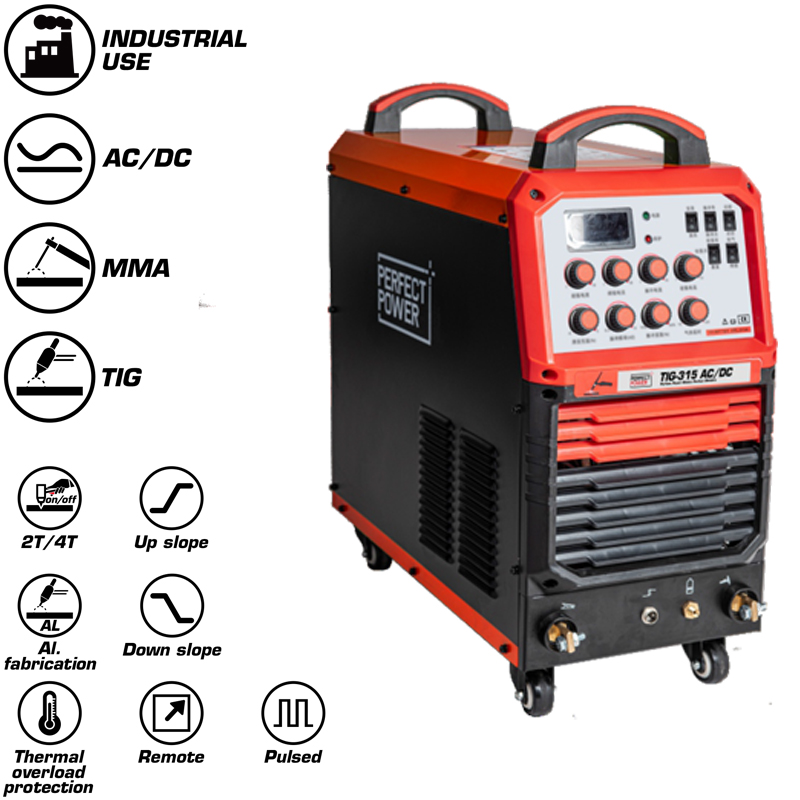

3.5 welding processes: AC TIG; AC pulse TIG; DC TIG; DC pulse TIG; ARC.
4.Cleaning zone width can be adjusted to meet high technological requirements.

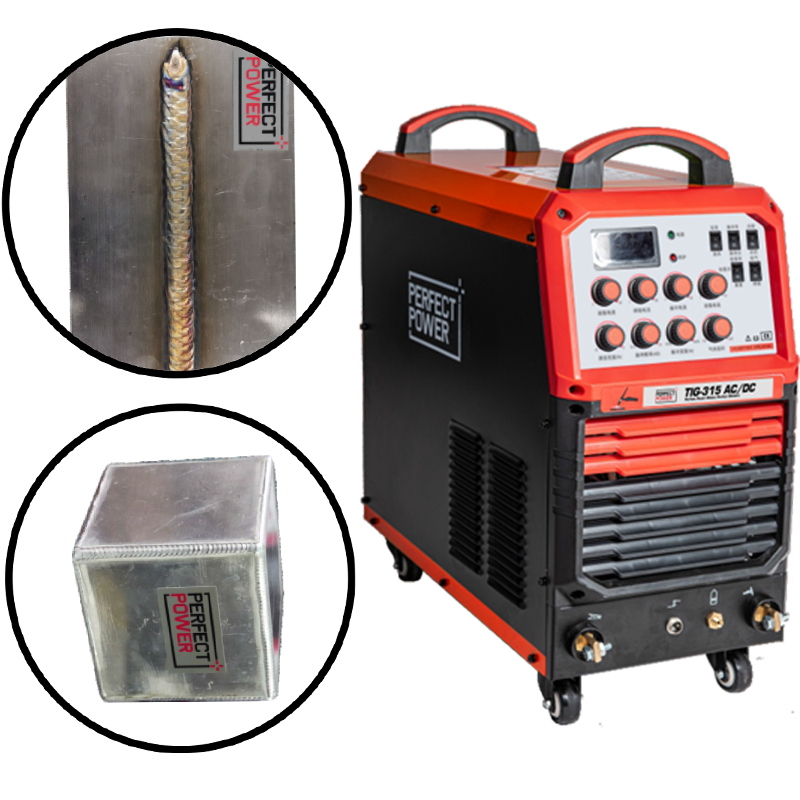

5.Excellent welding capability: aluminum, copper, carbon steel, stainless steel and
6.other metal materials.

Model

TIG-315 AC/DC

Power input AC(V)

3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

8.9

Rated current input(A)

13.5

Welding current range(A)

30-315(DC) 70-315(AC)

Open circuit voltage DC(V)

45

Rated duty cycle (60%/100%)

315A/244A

Power factor (cosΦ)

0.85

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

750*400*710

N.W.(kg)

39

Brochure
