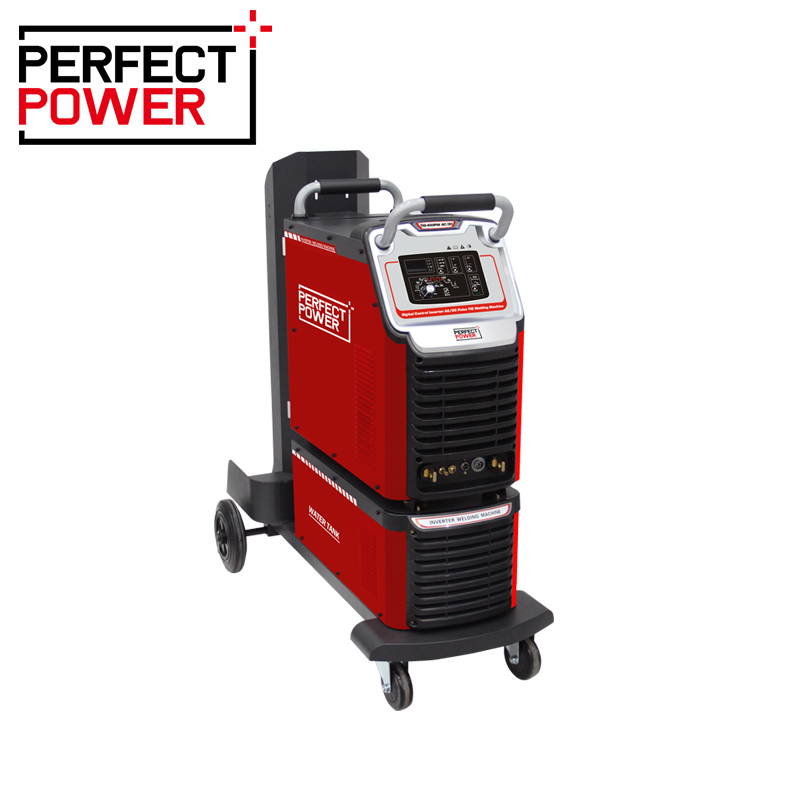

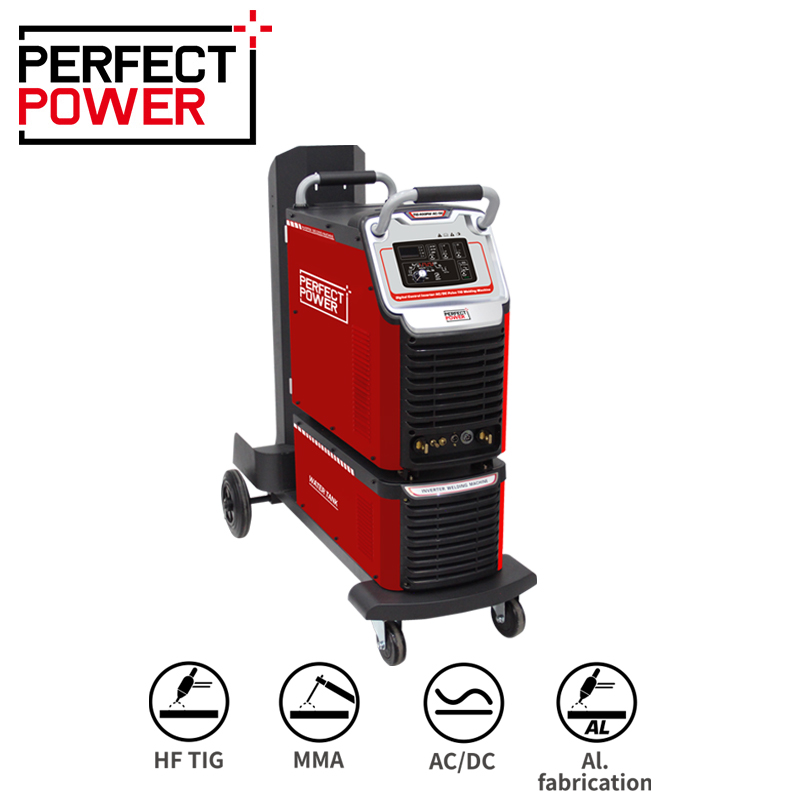

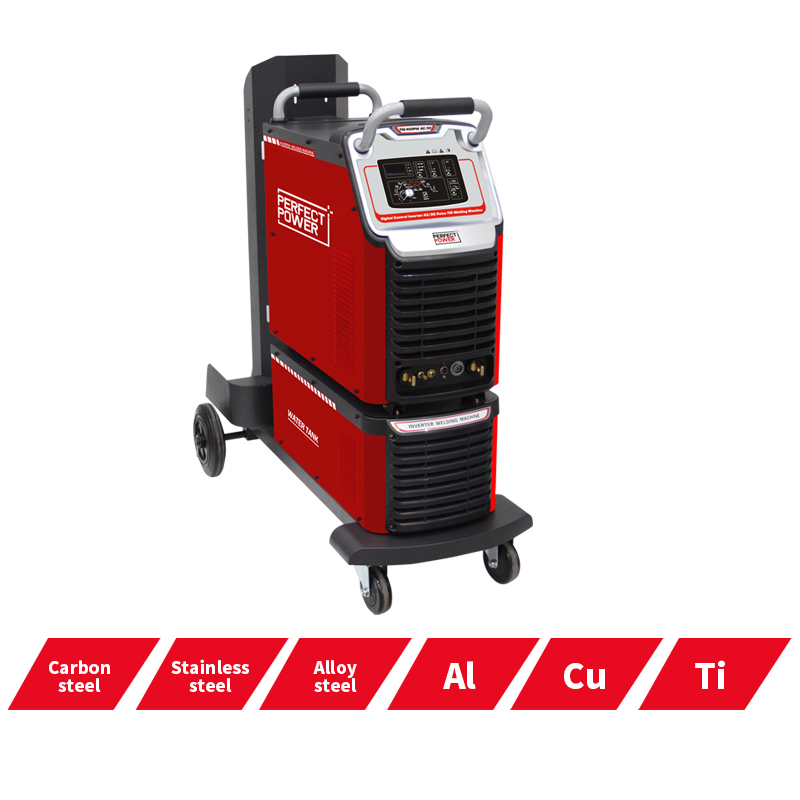

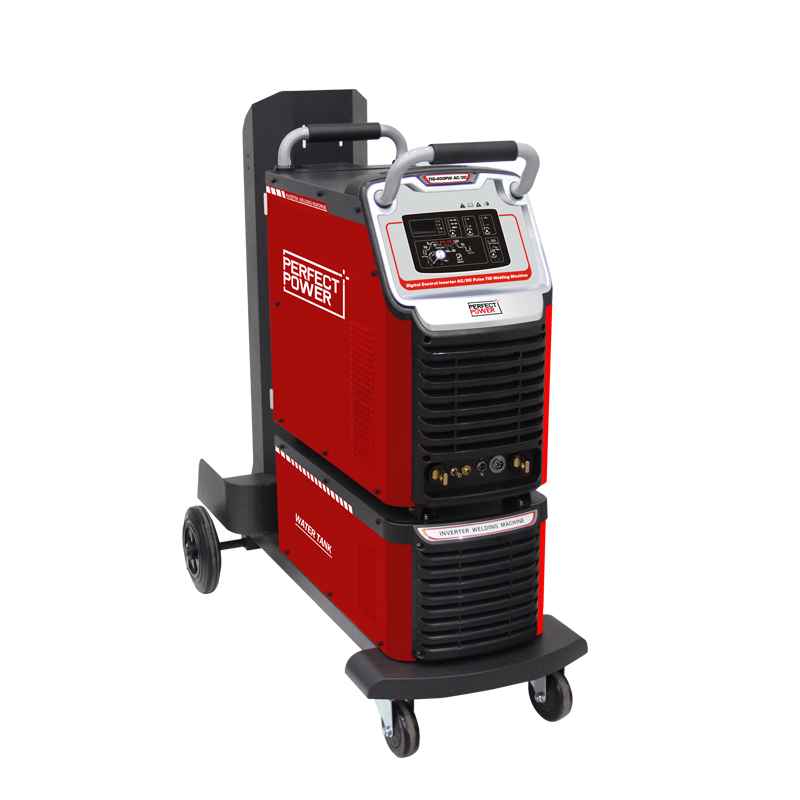

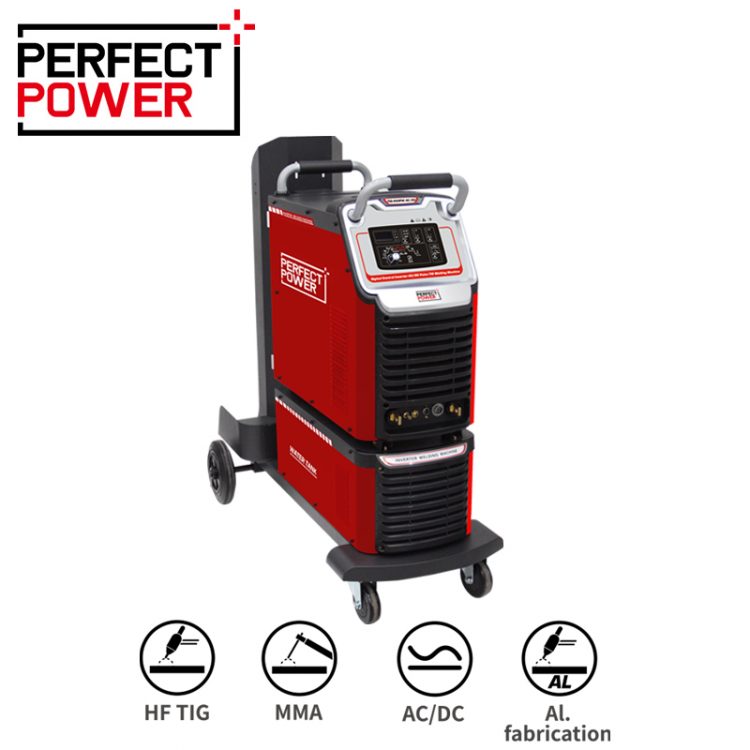

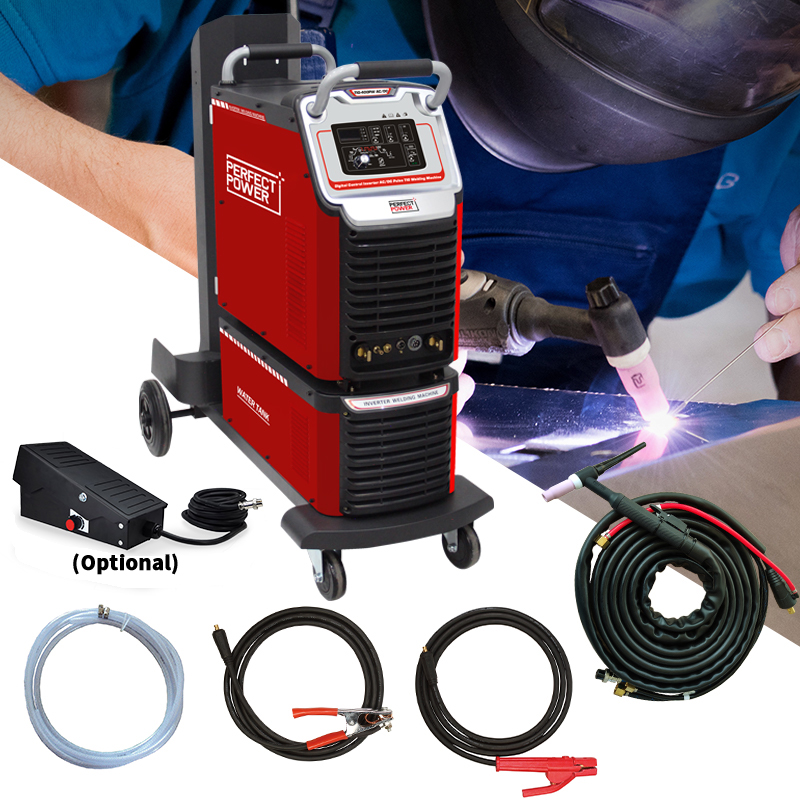

TIG-400PI AC DC TIG Welder

The TIG-400PI AC/DC TIG Welder gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish, and the minimum AC current can be 10A, ensuring optimal welding performance of thin aluminum sheet.

This 3 Phase machine features capable of different shapes of welding, like butt-joint, corner joint, T-joint, lap joint, and cruciform joint

Industrial purpose IGBT dual-module and heavy-duty cycle, TIG-400PI AC/DC TIG Welder is a complete and professional TIG /STICK welding machine that is ideal for all high-end aluminum, stainless steel fabrication, marine, and industrial engineering welding situations.

In Stock

The TIG-400PI AC/DC TIG Welder gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish, and the minimum AC current can be 10A, ensuring optimal welding performance of thin aluminum sheet.

This 3 Phase machine features capable of different shapes of welding, like butt-joint, corner joint, T-joint, lap joint, and cruciform joint

Industrial purpose IGBT dual-module and heavy-duty cycle, TIG-400PI AC/DC TIG Welder is a complete and professional TIG /STICK welding machine that is ideal for all high-end aluminum, stainless steel fabrication, marine, and industrial engineering welding situations.

1. Multi-function welding – AC TIG, AC pulsed TIG, DC TIG, DC pulsed TIG, MMA and Auto welding.
2. Industrial purpose IGBT dual-module and heavy duty cycle.
3. Minimum AC current can be 10A, ensuring optimal welding performance of thin aluminum sheet.
4. High frequency arc start with high success rate.
5. Adjustable clean width and clean scope.
6. Intelligent over-voltage, low-voltage, over-current and over-heat protection, safe and reliable.
7. Capable for different shapes welding, like butt joint, corner joint, T-joint, lap joint and cruciform joint.

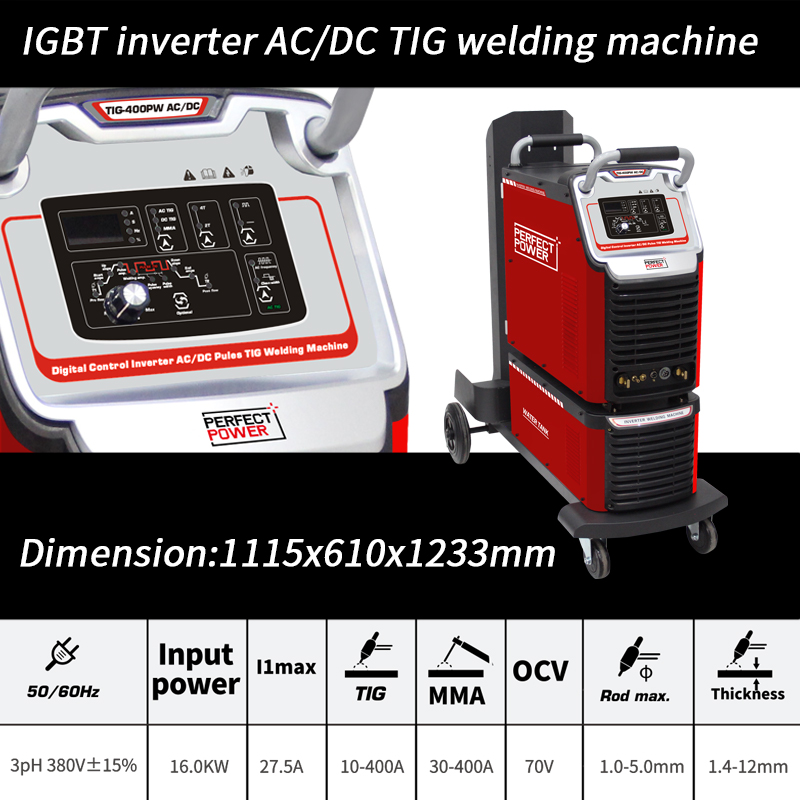

Model

TIG-400PI

Power input AC(V)

3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

16

Rated current input(A)

27.5

Rated output current(A)/voltage(V)

400/26.0(TIG), 400/36.0(MMA)

Welding current range(A)

10-400(TIG), 30-400(MMA)

Open circuit voltage DC(V)

70

Rated duty cycle(%)

60%

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

1115*610*1233

N.W.(kg)

/
