- Small size, lightweight, and high efficiency; easy to move, especially suitable for occasions of high mobility and working at heights;
- The advanced control technology is used to meet various welding applications and greatly improve welding performance;
- User-friendly and cost-effective;
- Operation safety protection against over-voltage, low-voltage over-current, and over-heated;

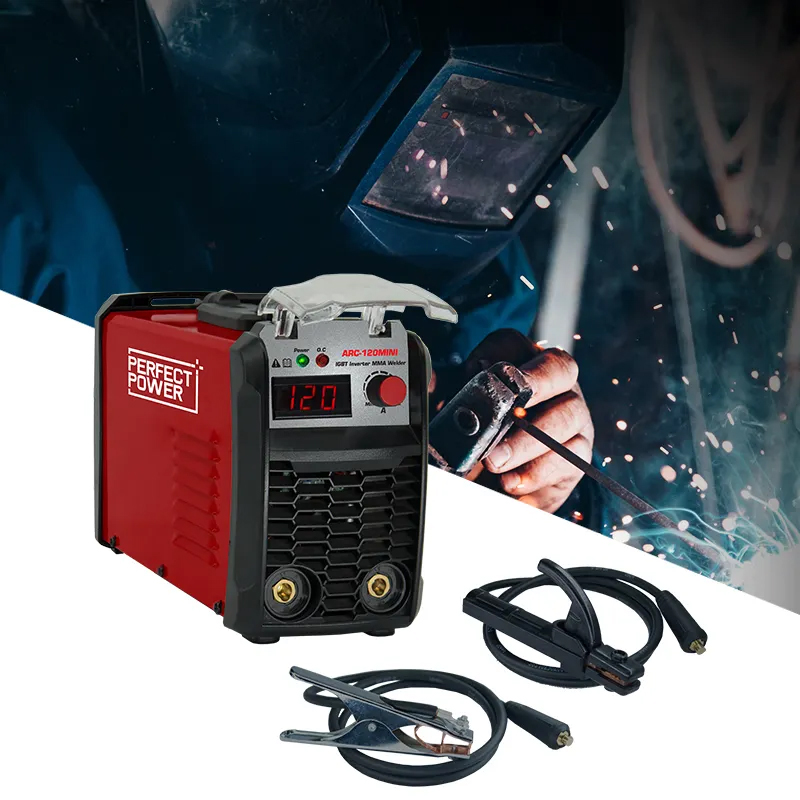

- You can just plug and then weld with a complete accessory set: MMA welding cable, earth cable, welding mask, and steel brush.

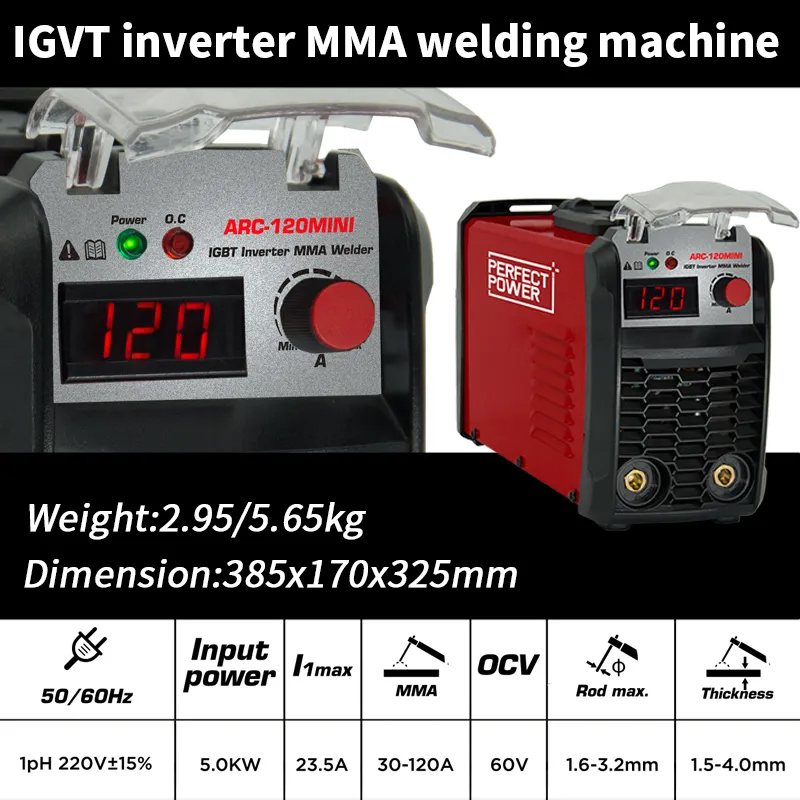

| Model | ARC-120MINI |
|---|---|
| Power input AC(V) | 1pH 220V+15% |
| Power input frequency(Hz) | 50/60 |
| Rated current input(A) | 23.5A |
| Welding current range(A) | 30-120A |
| Open circuit voltage DC(V) | 60V |
| Duty Cycle | 35% 120A, 60% 92A, 100% 71A |
| Rod max | 1.6-3.2mm |

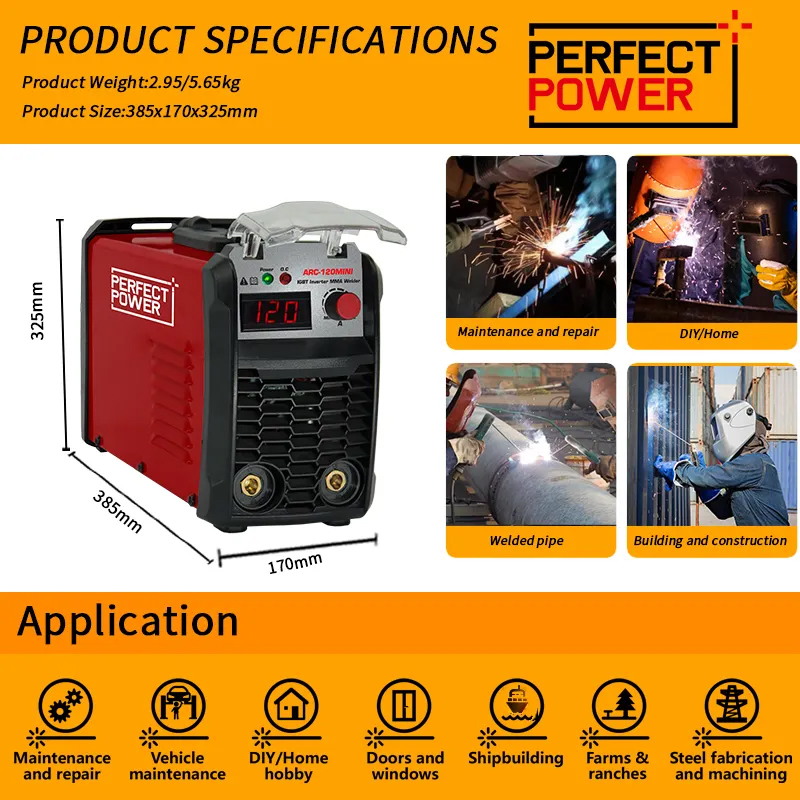

| Dimensions(mm) | 385*170*325 mm |
| N.W(kg) | 2.95/5.65kg |
