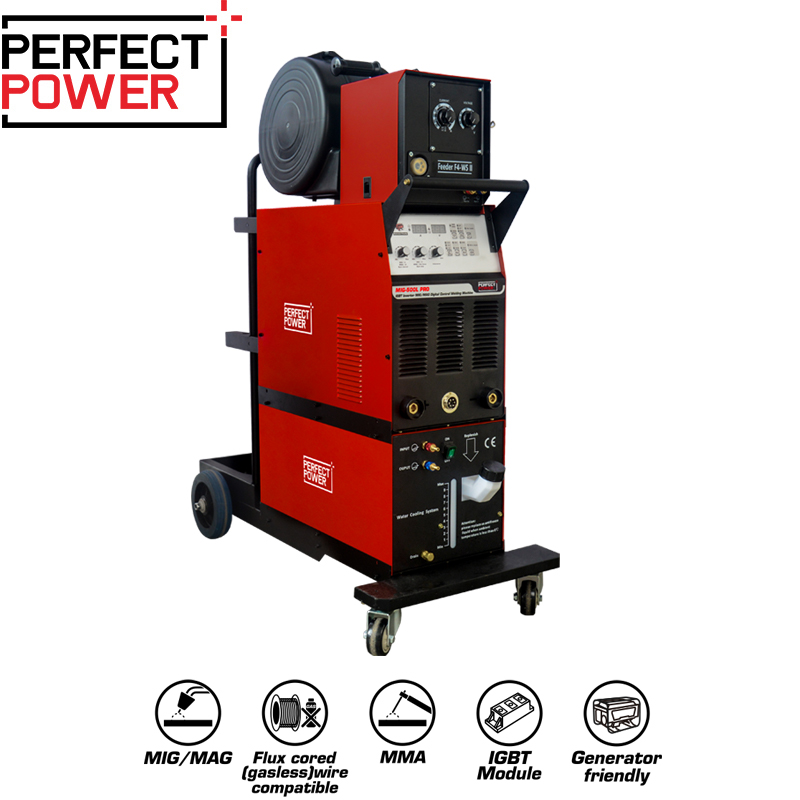

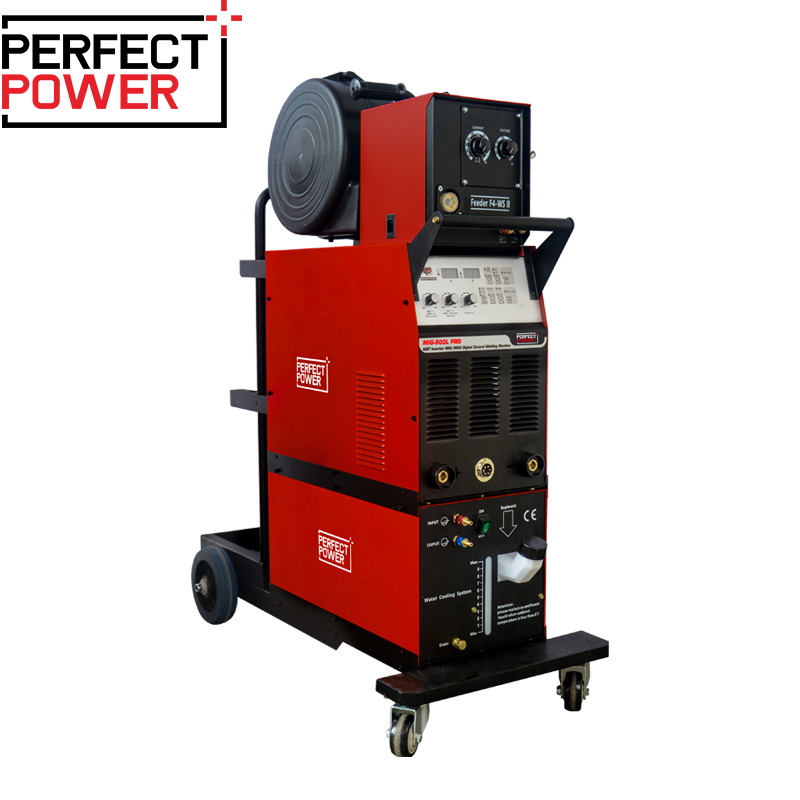

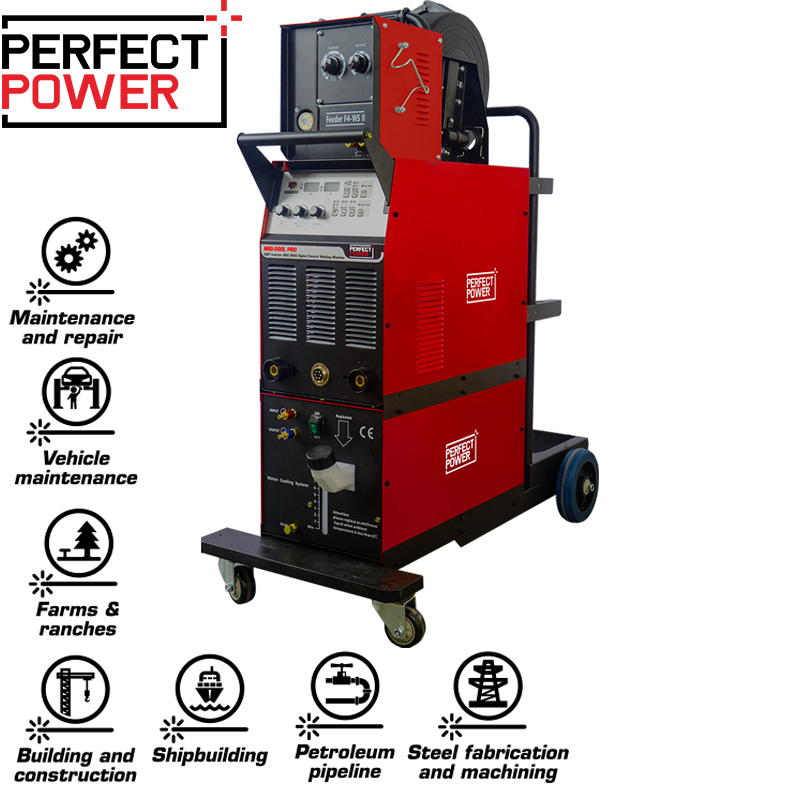

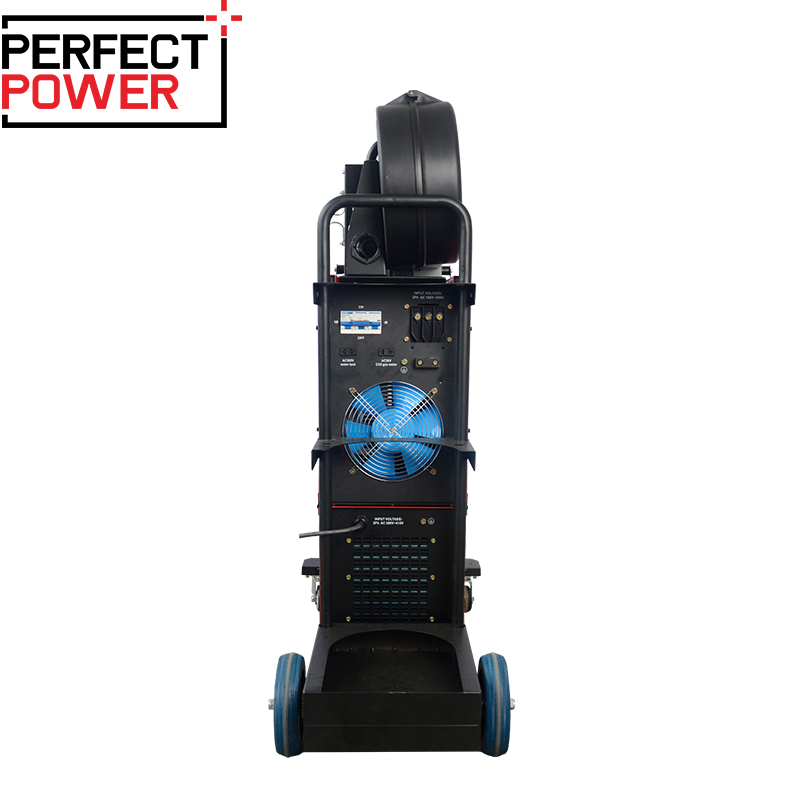

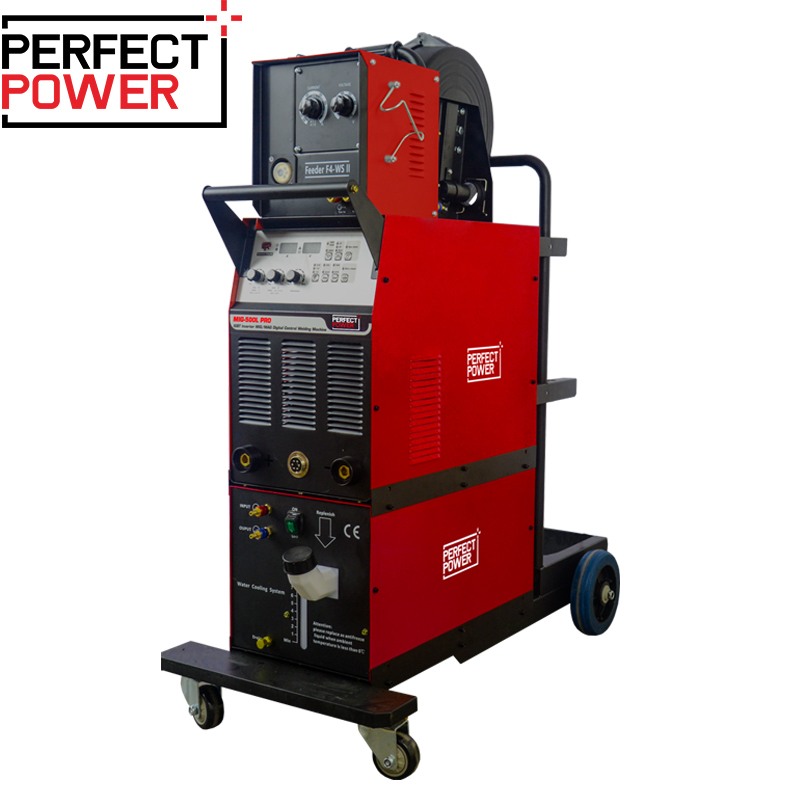

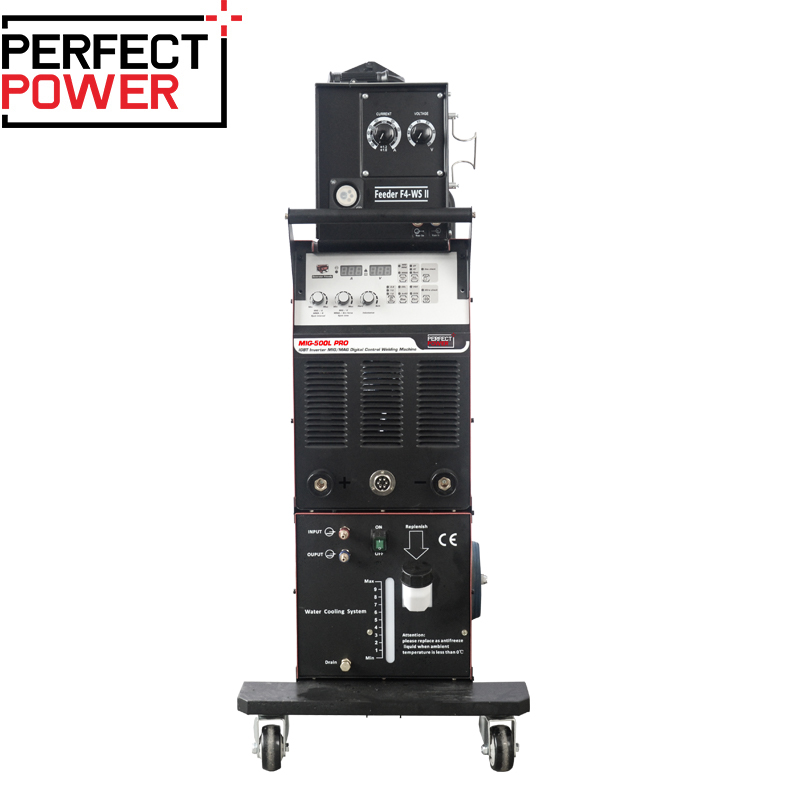

1. Industrial grade IGBT module adopted
2. Multifunction welder for industrial use: MIG/MAG, Gasless flux cored wire welding and MMA
3Full digital control system, welding parameters can be adjusted independently; Stable arc output, superior welding quality.
4. High efficiency and duty cycle, and no noise from arc welding rectifier.
5. Less spatter and high metal deposition rate; nice welding bead and less deformation.

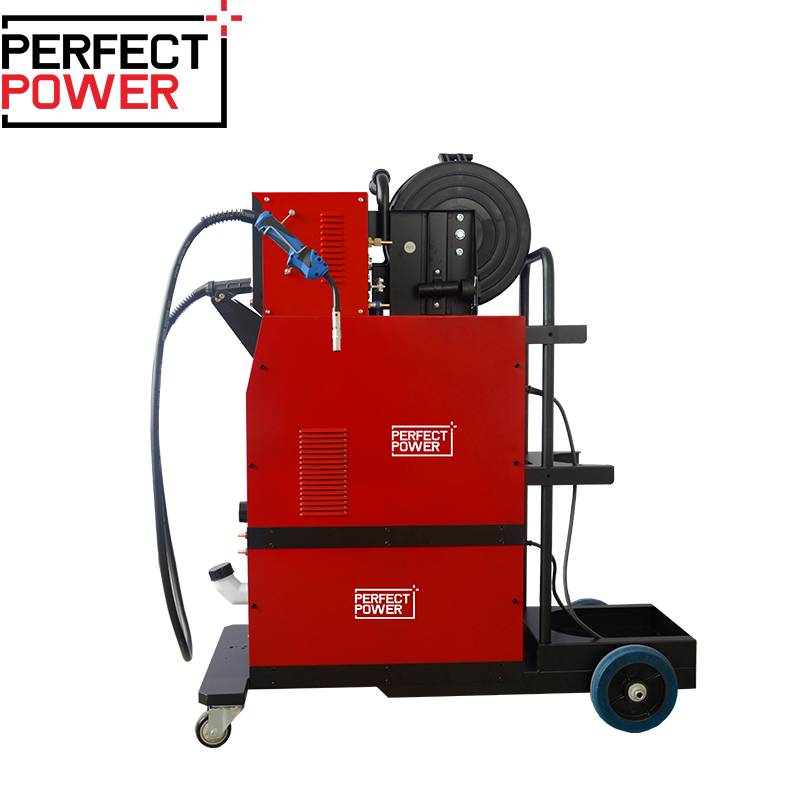

6. Portable separated wire feeder with control cables and control keys.20kg wire spool capability for heavy industrial use.
7. SPLMIG/MAG and SYN MIG/MAG can meet the needs of different users and are more simple to operate.
8. Overheat, overcurrent, and overvoltage protection.
| Model | MIG-500L PRO |
|---|---|
| Power input AC(V) | 3PH 150V-500V |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 25.5 |
| Rated current input(A) | 47.5 |
| Rated output current(A)/voltage(V) | 500/39.0(MIG), 500/40.0(MMA) |
| Welding current range(A) | 40-500 |
| Open circuit voltage DC(V) | 65 |
| Rated duty cycle | 80% |
| Wire Feeding Speed(M/min) | 2～18 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | / |
| Weight (KG) | 72/95 |
| Wire Melting Type | spray transfer |
