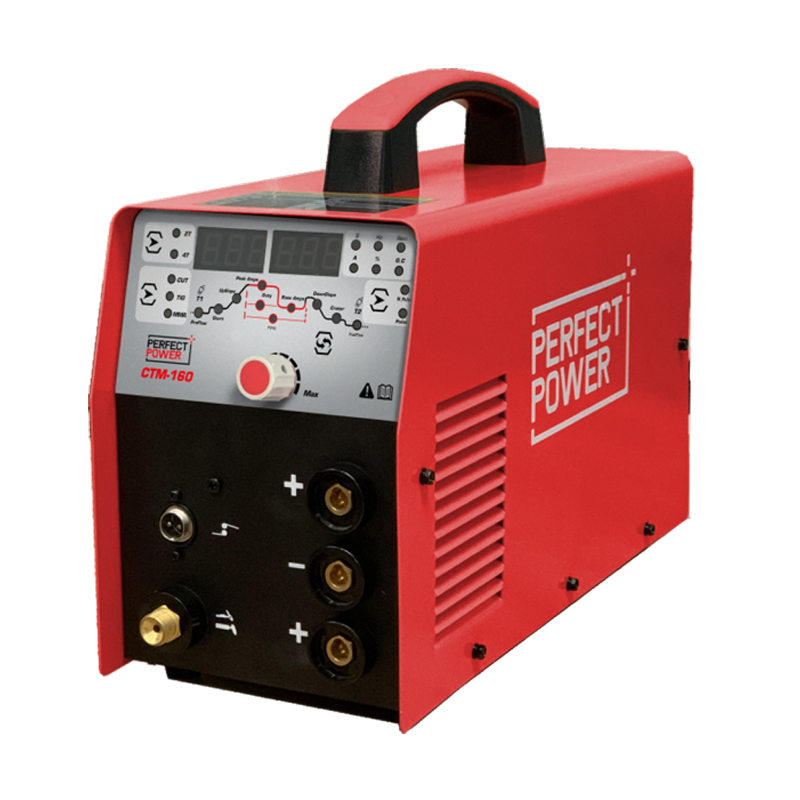

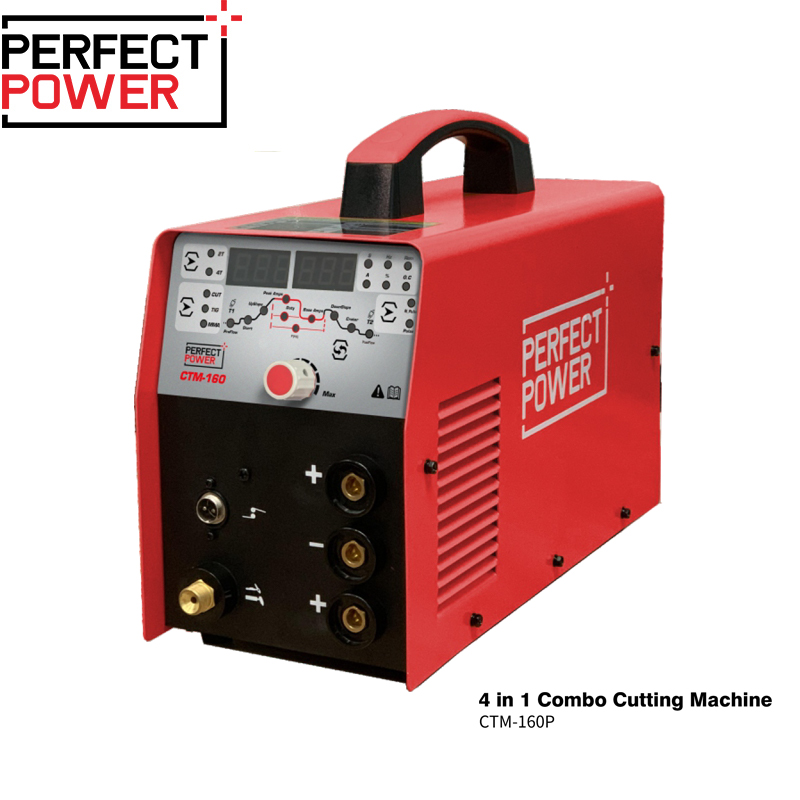

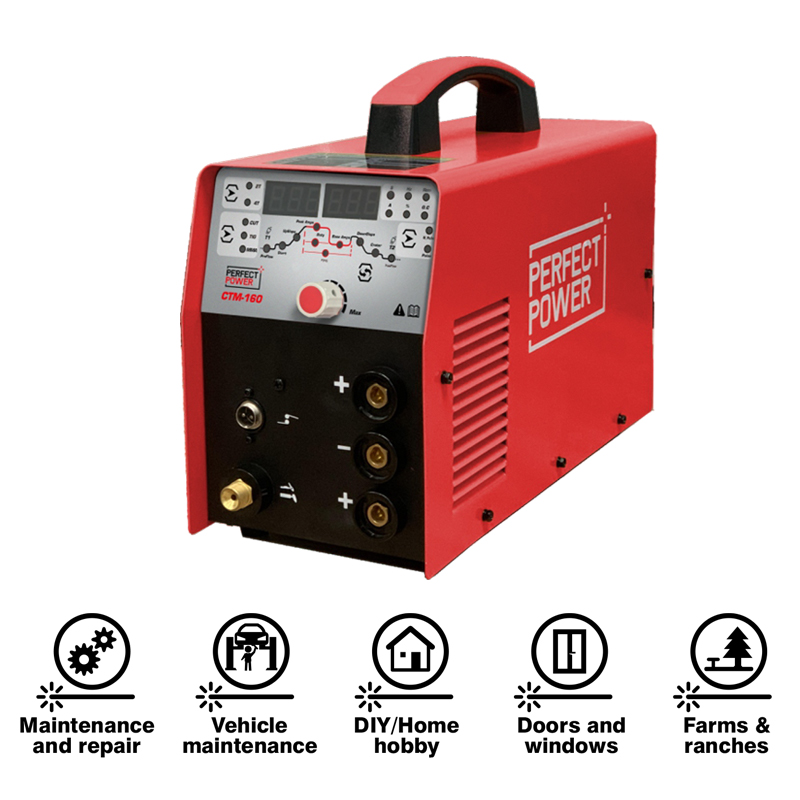

CTM-160P IGBT Inverter Plasma Cutting Machine

In Stock

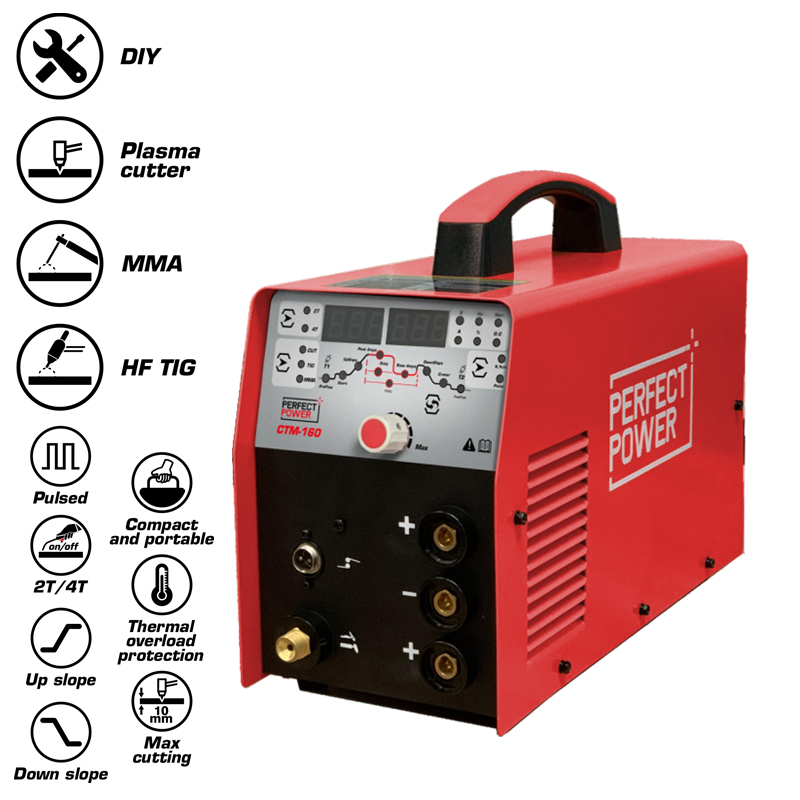

1. MULTIFUNCTIONAL4 in 1: CUT/MMA/DC TIG/Pulsed TIG
2. Digital control technology and one-knob intelligent control panel.
3. Highly convenient, operate it anywhere.
4. High-frequency arc starts with a high success rate.
5. 2T/4T function, adjustable Pre-Flow, and Post-Flow. Peak current & time, base current & time adjustable.

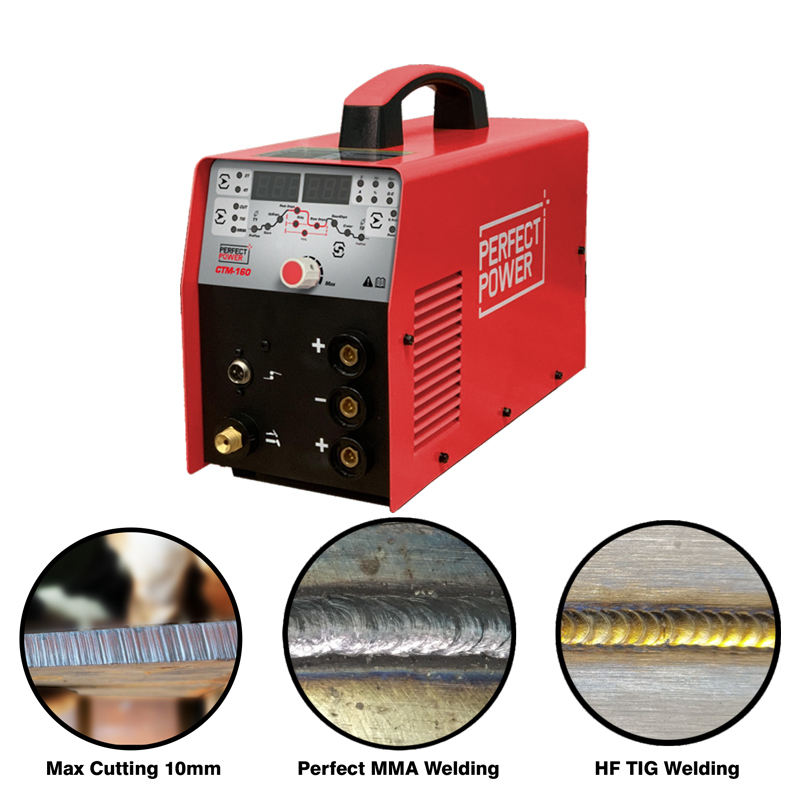

6. Capable of cutting and welding various metals.
Under MMA function can use 3.2mm electrode well.
Under TIG function can weld 0.3-4mm plate.
Max 10mm Cutting thickness.
7. Smart cooling&overheating protection.

Model

CTM-160P

Power input AC(V)

1pH 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

7.0

Rated current input(A)

23.6(CUT) / 25.4(MMA)/ 27.6(TIG)

Rated output current(A)/voltage(V)

40/96(CUT) / 160/26.4(MMA)/ 160/16.4(TIG)

Max. cutting current (A)

40

Open circuit voltage DC(V)

280(CUT) / 62(MMA/TIG)

Rated duty cycle(%)

30%

Max.cutting thickness(mm)

10

IP grade

IP21

Insulation grade

F

Dimensions(mm)

490*265*370

Weight (KG)

9.2/14
