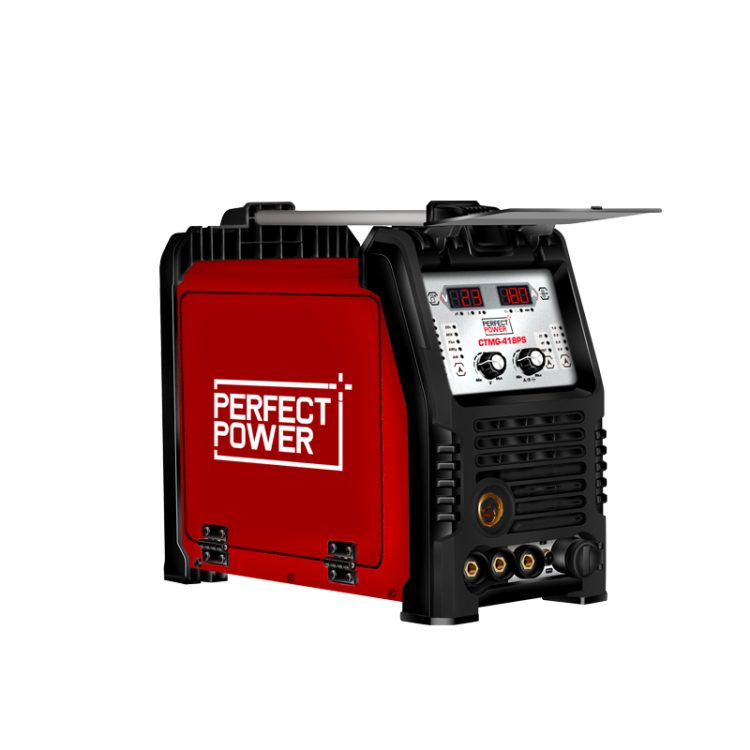

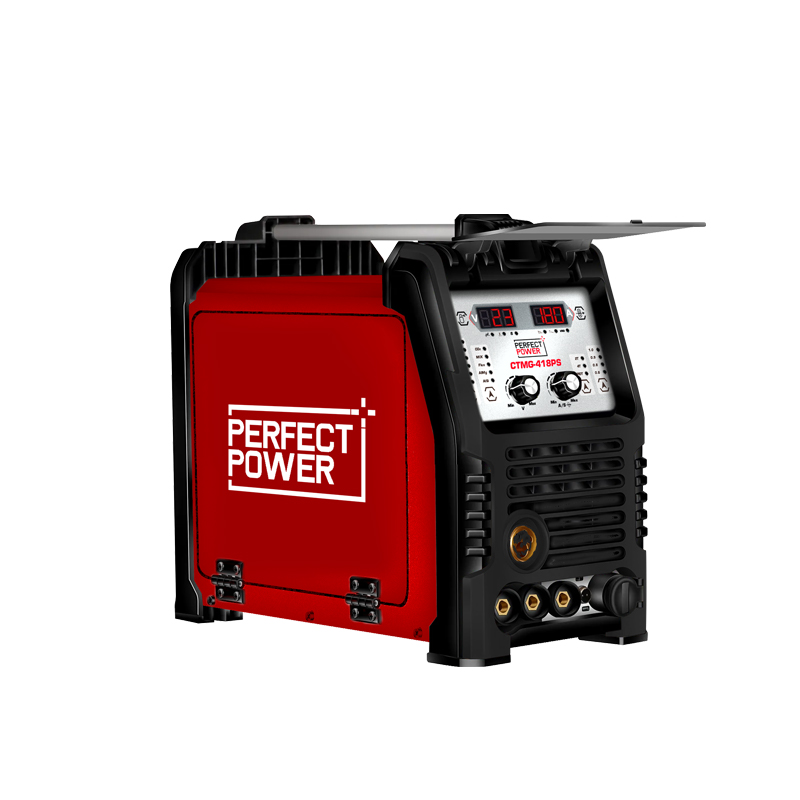

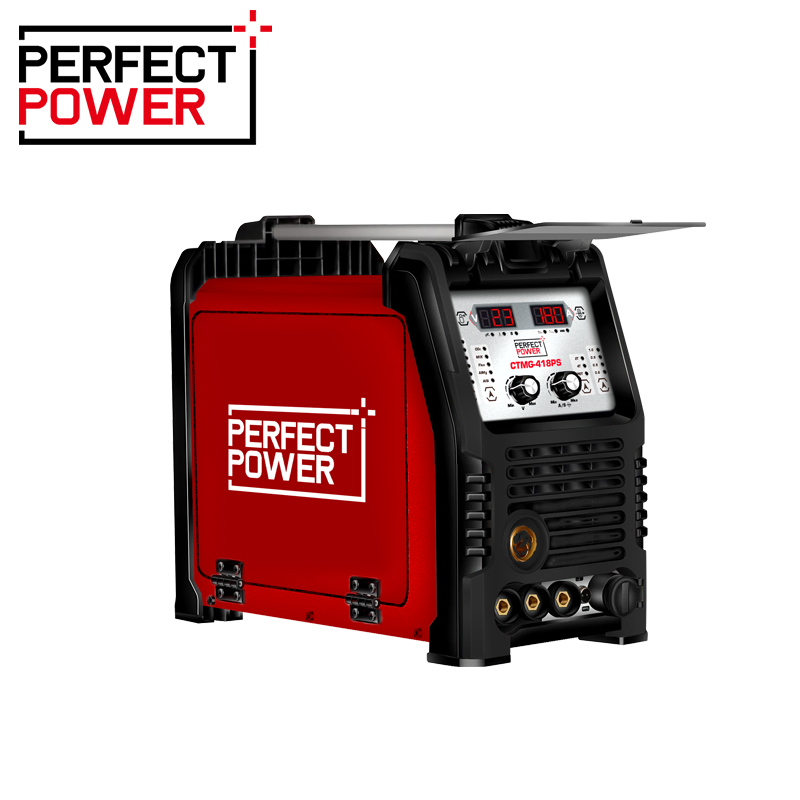

CTMG-418PS 6 in 1 Multi-Functional Welding Machine

CTMG-418PS Multi-Process welder is a 6 in 1 welding machine with MIG, Pulsed MIG, Flux Cored Wire Welding, HF TIG, CUT, and MMA functions. It has a full digital control system, intelligent synergic control, and adjustable welding parameters. The machine also features safety measures like adjustable VRD control and overheat protection. It’s perfect for aluminum welding with a 100% success rate for arc ignition and spatter-free welding.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

The CTMG-418PS Multi-Process welder is a 6 in 1 welding machine with MIG, Pulsed MIG, Flux Cored Wire Welding, HF TIG, CUT, and MMA functions. It has a full digital control system, intelligent synergic control, and adjustable welding parameters. The machine also features safety measures like adjustable VRD control and overheat protection. It’s perfect for aluminum welding with a 100% success rate for arc ignition and spatter-free welding.

1. 10 in 1 machine-MIG/MAG, pulsed MIG/MAGflux cored wire welding, HF TIG, CUT, and MMA.

2. Full digital control system, welding parameters can be adjusted independently.

3. Intelligent synergic control makes your work easy.

4. At TIG mode, arc starting with HF,100%success rate of arc ignition.

5. Pulse function, spatter-free welding.especially suitable for aluminum welding.

6. MMA mode with adjustable VRD control, guarantees operator safety.

7. 2T/4T/spot welding mode. 8. Narrow cutting seam, clean cutting edge anti-deformation, high usage of metal. 9. Overheat, overcurrent and overvoltageprotection.

Model

CTMG-418PS
Power input AC(V)

1ph110V/220V ±15%
Power input frequency(Hz)

50/60
Max. Load Power Capacity

5.0KVA (110V)
6.8KVA (220V)
Rated current input(A)

45.8A(110V)
30.9A(220V)
Welding current range(A)

20-160A (MMA)
20-40A (CUT)
20-180A (TIG)
20-180A (MIG)
Open circuit voltage DC(V)

62(MMA/TIG/MIG) 290(CUT)
Maxcutting thickness(mm)

12 mm
Rated duty cycle(%)

60%-180A, 100%-140A(MIG/TIG)
60%-160A, 1004A(MMA)
60%%-40A, 100%-46A(CUT)

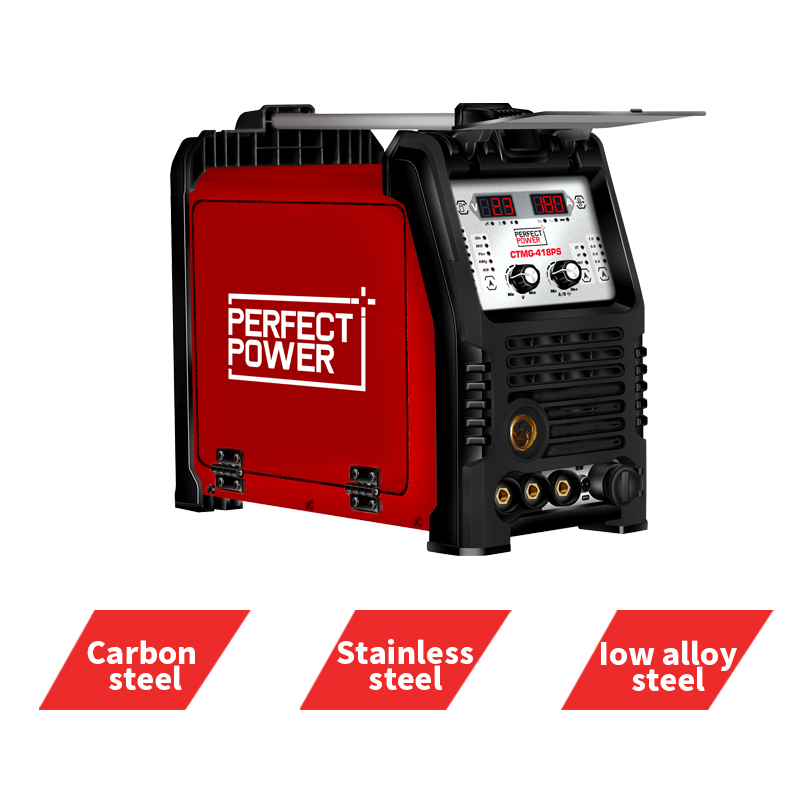

Weldable (cutting) materials

Carbon steel,Stainless steel,low alloy steel, Al,Si,AMg,Cu
IP grade

IP21S
Insulation grade

F
Dimensions(mm)

550*310*440
Weight (KG)

12.3
