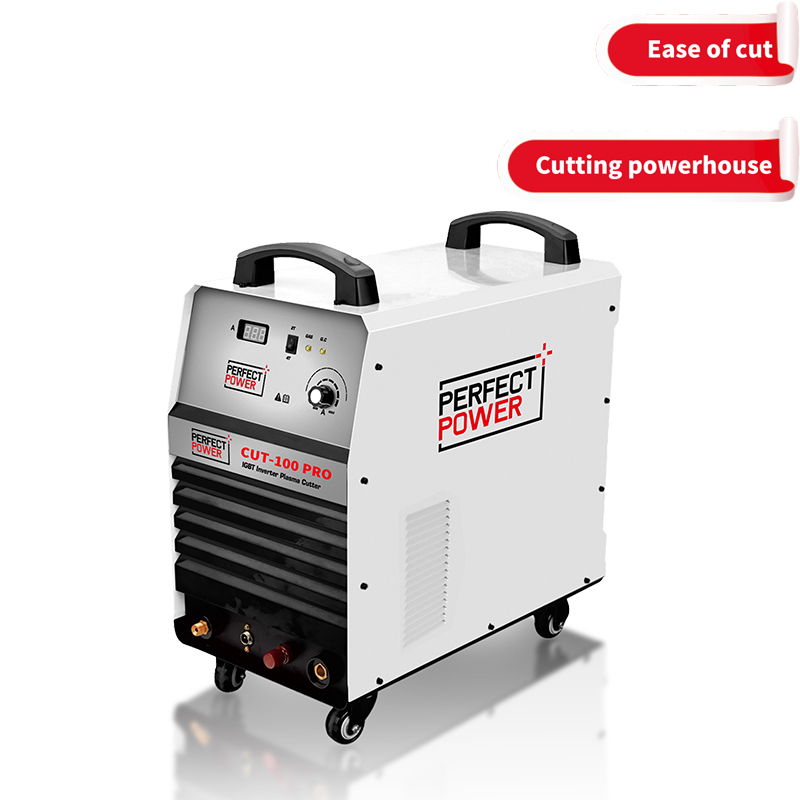

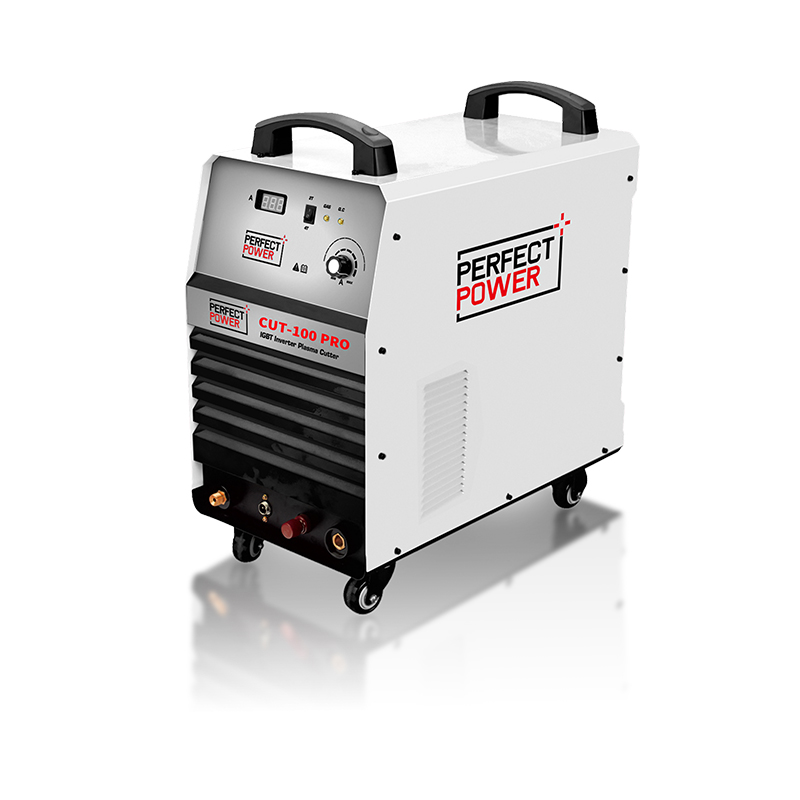

CUT-100PRO Plasma Cutter

100 Amp Non-Touch Pilot Arc Plasma Cutter, 35mm Maximum Cut, 60% Duty Cycle

CUT-100PRO plasma cutter is portable enough to carry to any job site. Hook up the compressed air, grab the torch, and start cutting right away. Due to its reliability and portability, this plasma cutting machine is ideal for onsite maintenance, small construction sites, HVAC, and demolition.The normal cutting thickness of the CUT-100PRO plasma cutting machine is 25 mm, and the maximum cutting thickness is 35 mm.

In Stock

CUT-100PRO plasma cutter is portable enough to carry to any job site. Hook up the compressed air, grab the torch, and start cutting right away. Due to its reliability and portability, this plasma cutting machine is ideal for onsite maintenance, small construction sites, HVAC, and demolition.

The normal cutting thickness of the CUT-100PRO plasma cutting machine is 35 mm, and the maximum cutting thickness is 25 mm.

Features:

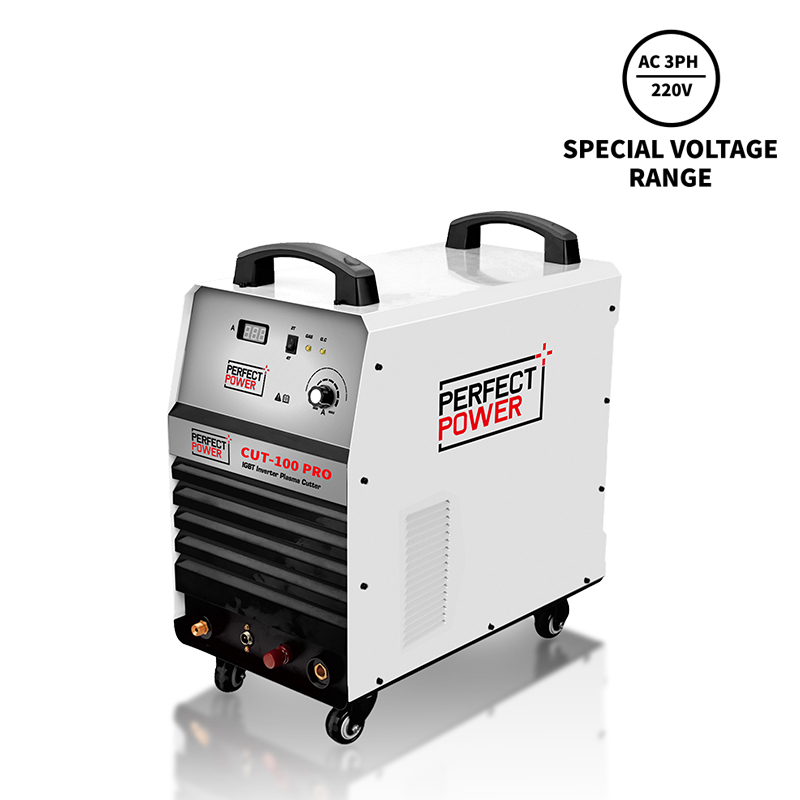

1. 3ph/220V input power allows even 160A cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting function; the connector is optional.
3. MULTI-FUNCTION two in one, optional MMA function.
4. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
5. 2T/4T self-locking function.
6. Pilot Arc Starting increases cutting capability and cutting speed, improving the service life of the torch kit.
7. Heavy-duty cycle for industrial use.

What’s Included:

3M(L) 3*6mm²+1*4mm² power cable
5M(L) P80 cutting torch 10mm²
3M(L) 16mm² ground cable with 300A clamp
3M(L) gas hose
gas valve

Power input AC(V)

3ph 220V ±15%

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

18.4kVA

Rated current input(A)

48.4A

ated output current(A)/voltage(V)

100A/120V

Max. cutting current (A)

100A

Open circuit voltage DC(V)

320V

Rated duty cycle(%)

60%

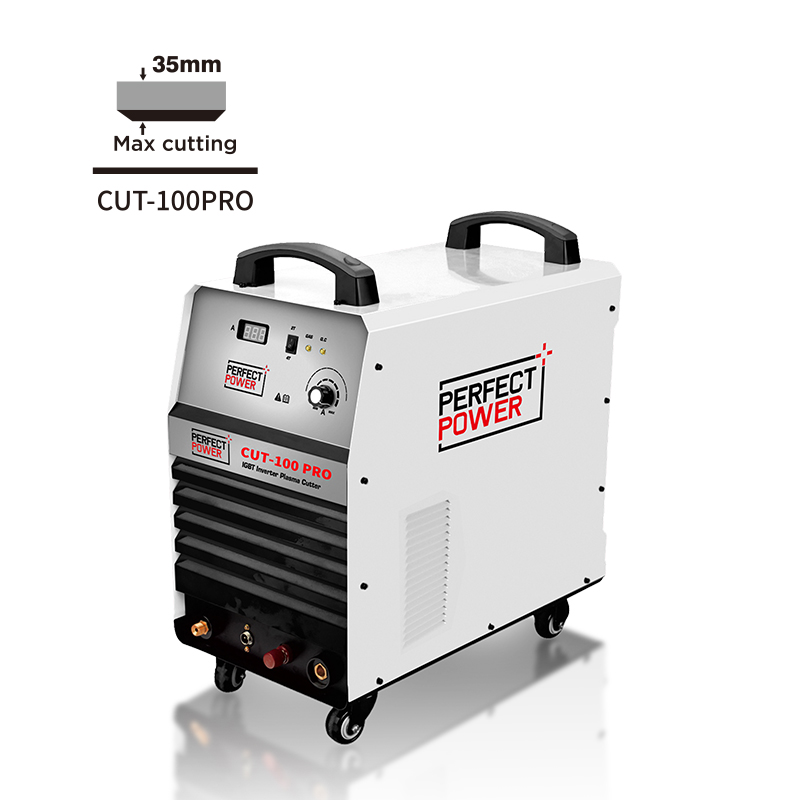

Max.cutting thickness(mm)

35mm

IP grade

IP21

Insulation grade

F

Dimensions(mm)

615*380*635 mm

N.M./G.W.(kg)

28kg/31kg

Quality cutting thickness (mm)

Steel/Carbon Steel:≤25 mm
Stainless Steel:≤25 mm
Aluminum:≤15 mm
Copper/Brass:≤10 mm

Welding Process

CUT / MMA / HF / Pilot-arc / 2T / 4T
