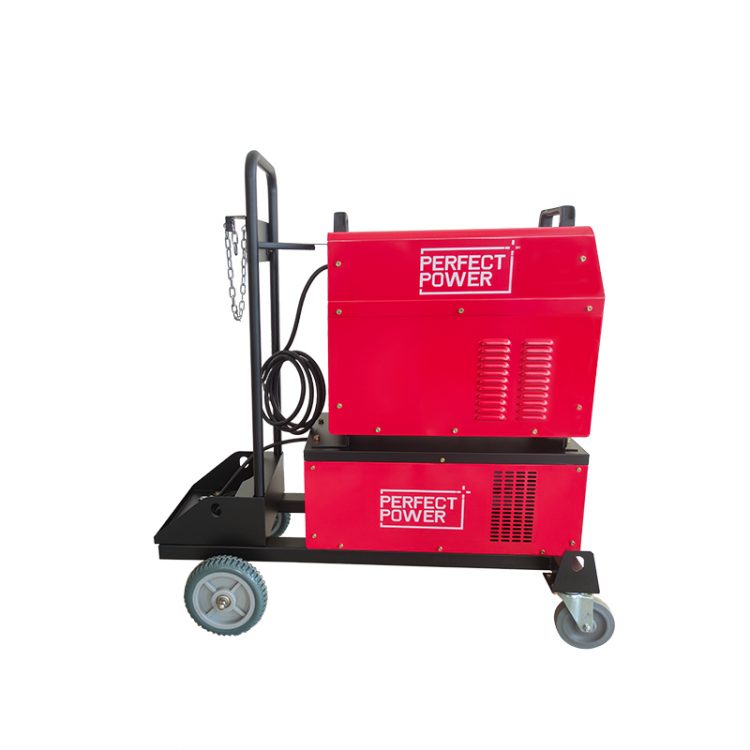

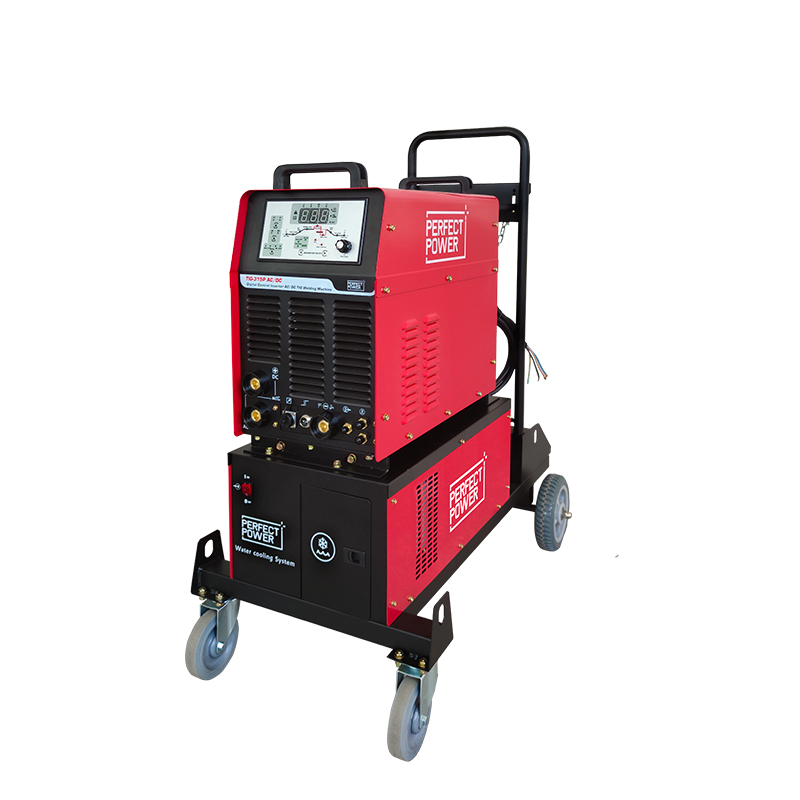

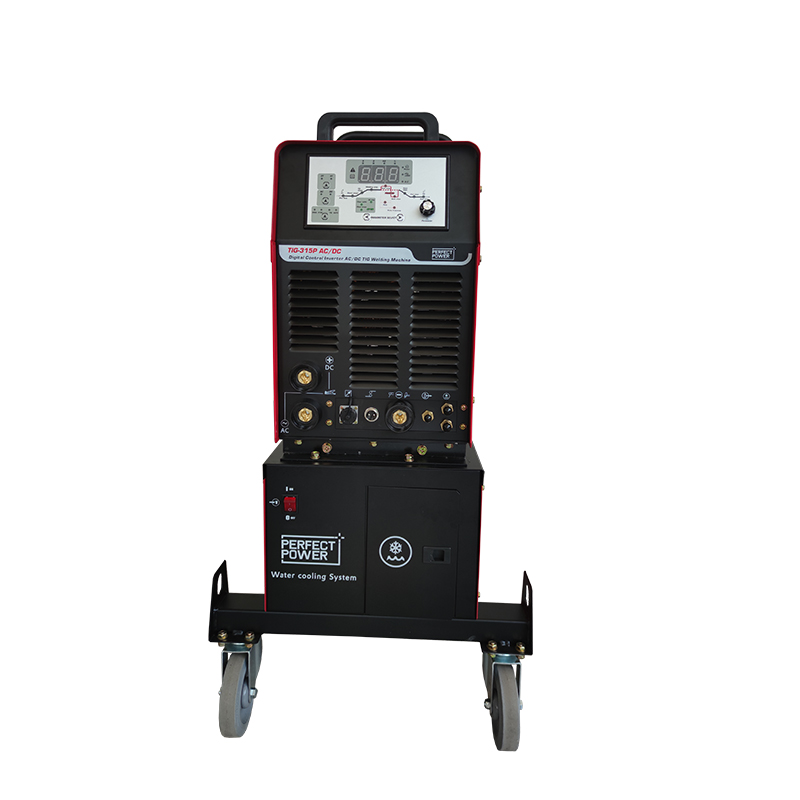

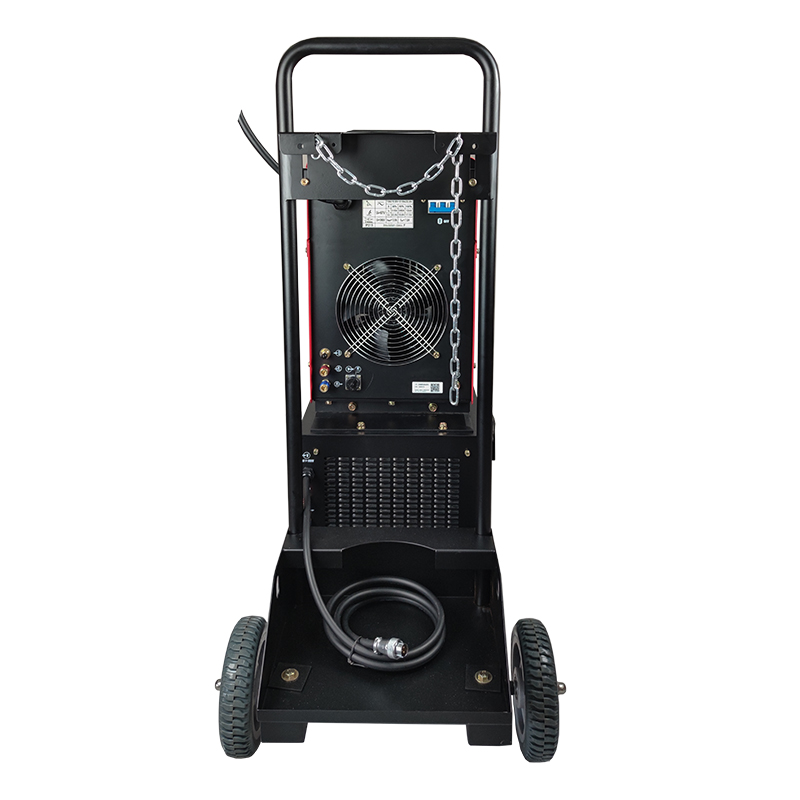

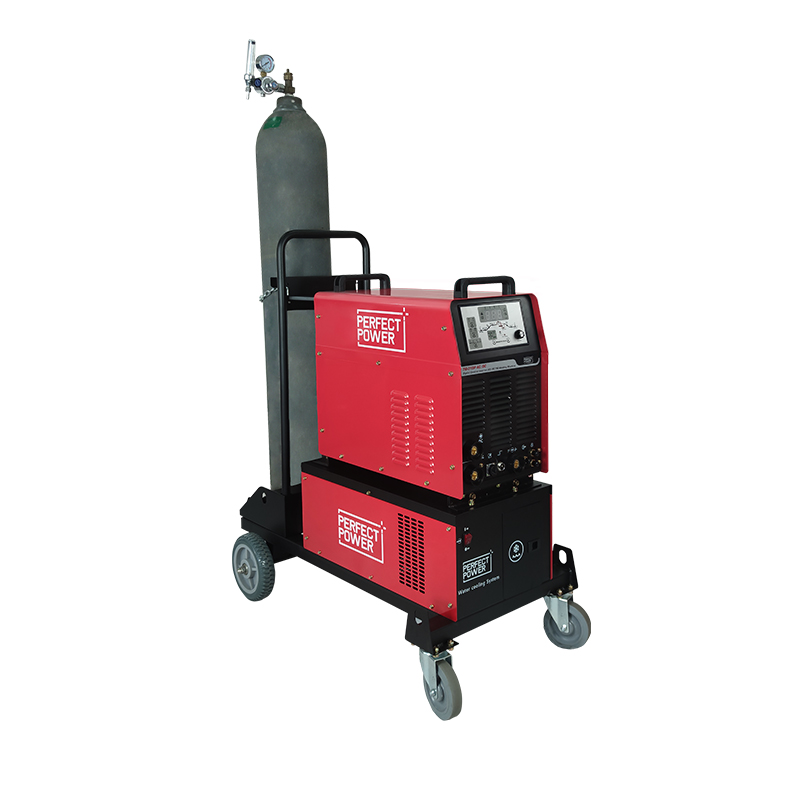

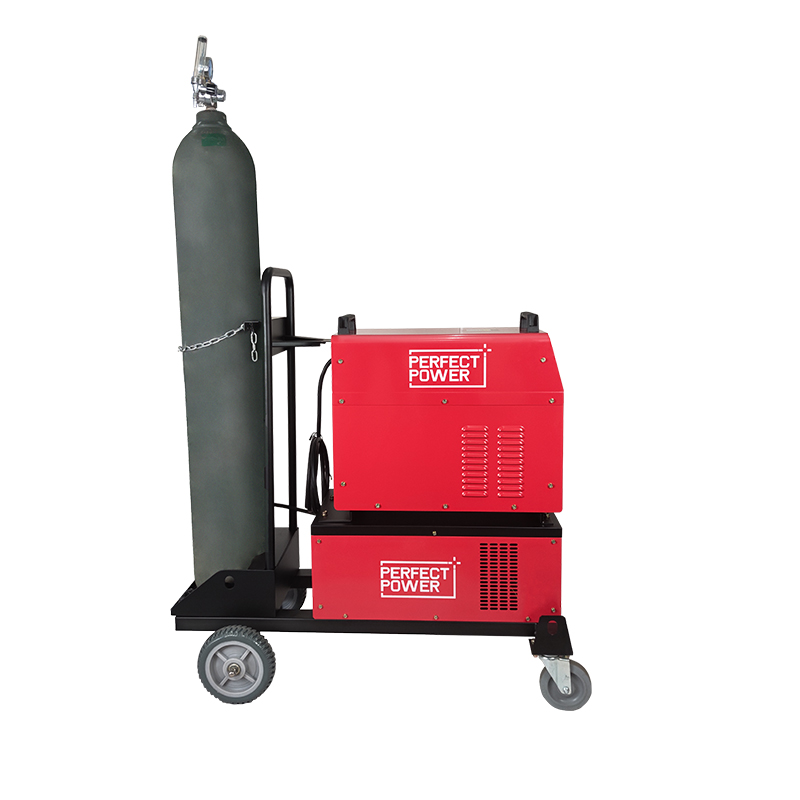

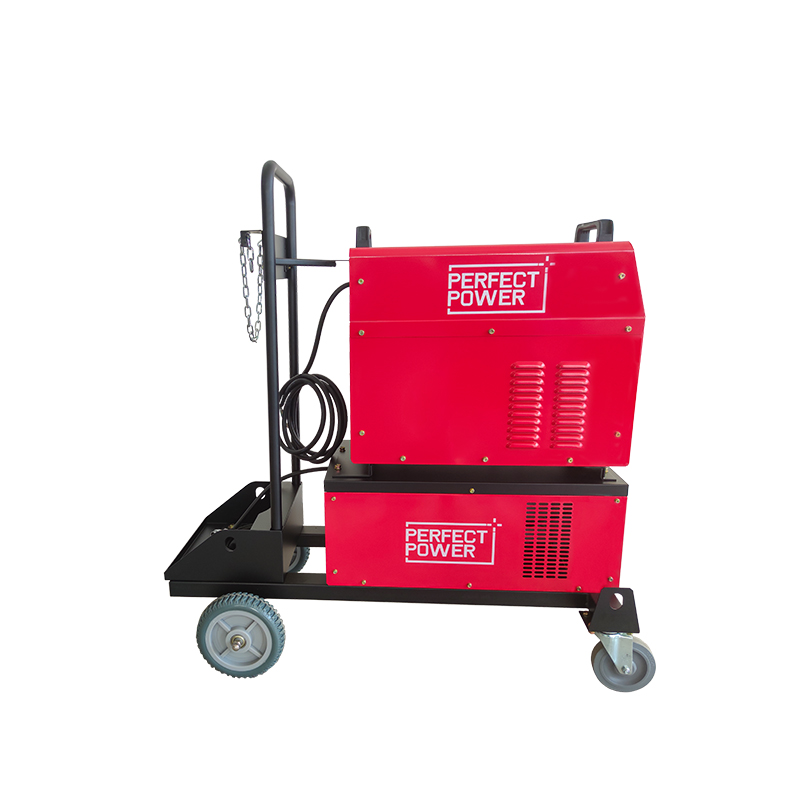

TIG-315P AC DC TIG Welder IGBT Inverter AC DC TIG Welding Machine

Code: TIG-315P AC/DC

The TIG-315P AC/DC TIG welder is capable of welding with either AC or DC current. This allows the user to choose DC current welding for carbon steel, stainless steel, copper, and many other metals, while also being equipped with the ability to switch over to AC welding commonly used in welding aluminum and aluminum alloys, magnesium, and even TIG brazing. The new Memory Function allows users to save presets for all their most often-used welding settings.

Available on backorder
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

1. Multi-function welding – AC TIG, AC pulsed TIG, DC TIG, DC pulsed TIG, MMA, and Auto welding.
2. Digital control technology and one-knob intelligent control panel.
3. Thanks to the high frequency & high voltage arc ignition circuit, it realizes excellent arc starting with a 99.9% success rate, especially suited for different types of spot welding.
4. Pulsed welding with adjustable pulse frequency, achieving high-quality welding of thin metal sheets, dissimilar metal, materials of different thicknesses, and even the requirement of double-sided forming welds.
5. Adjustable clean width and clean scope.
6. Optional torch with amperage control & optional foot pedal switch.
7. Intelligent over-voltage, low-voltage, over-current, and over-heat protection, safe and reliable.

Model

TIG-315P AC/DC
Power input AC(V)

AC380V±15% 3PH
Power input frequency(Hz)

50/60Hz
Max. Load Power Capacity(kVA)

12.8 KVA
Rated current input(A)

19.5 A
Welding current range(A)

15-315（TIG） 20-315（MMA）
Open circuit voltage DC(V)

64
Rated duty cycle(%)

35%(315A TIG) 60%(240A TIG) 100%(186A TIG)
35%(315A MMA) 60%(240A MMA) 100%(186A MMA)
IP grade

IP21S
Insulation grade

F
Dimensions(mm)

1160*650*1270mm
N.W.(kg)

67/102kg
Rod max.

1.0-5.0mm
Thickness

1.0-10mm
