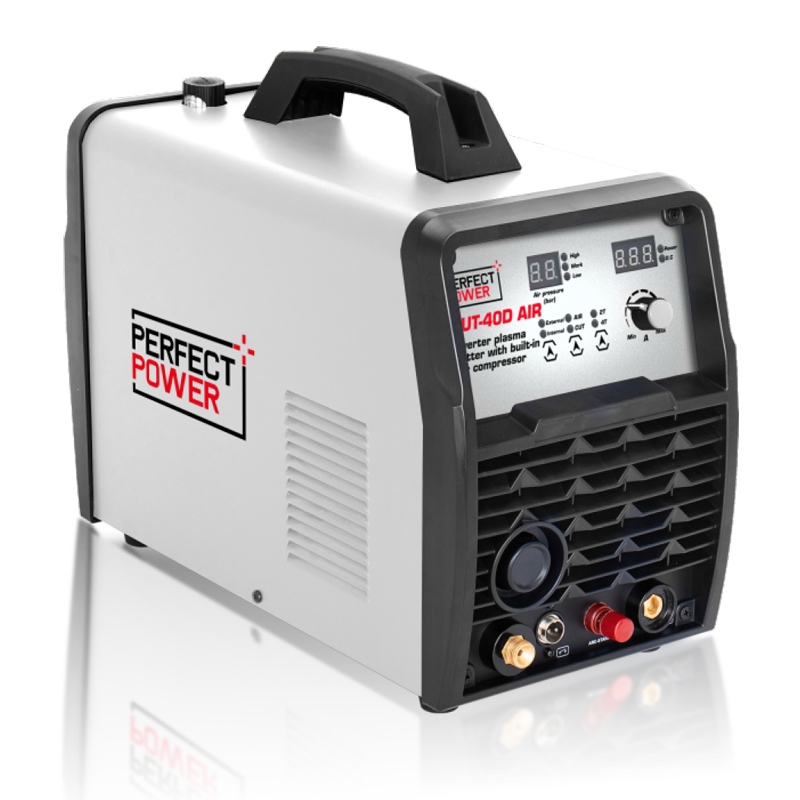

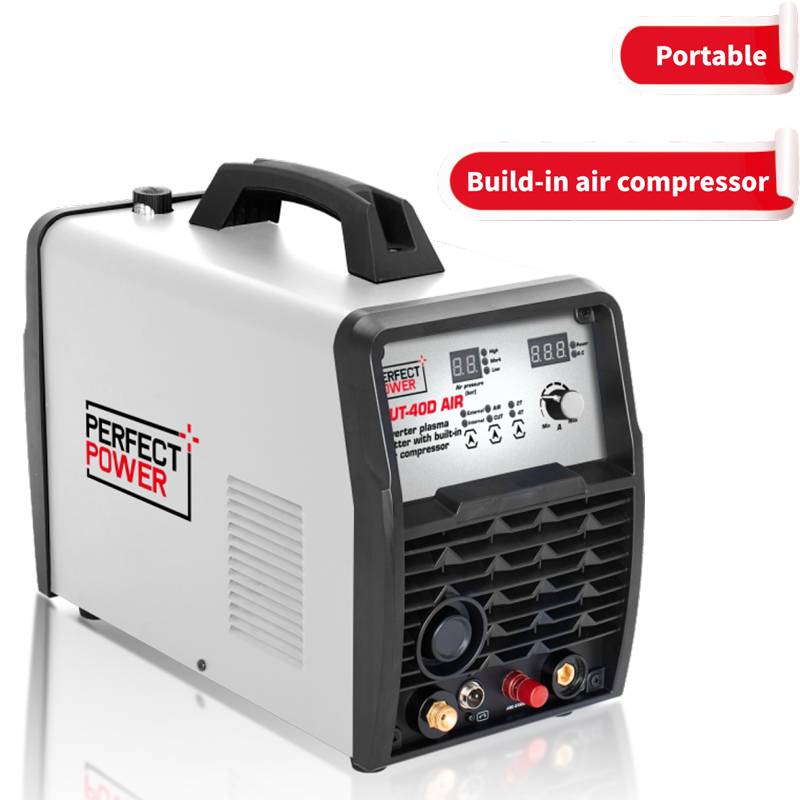

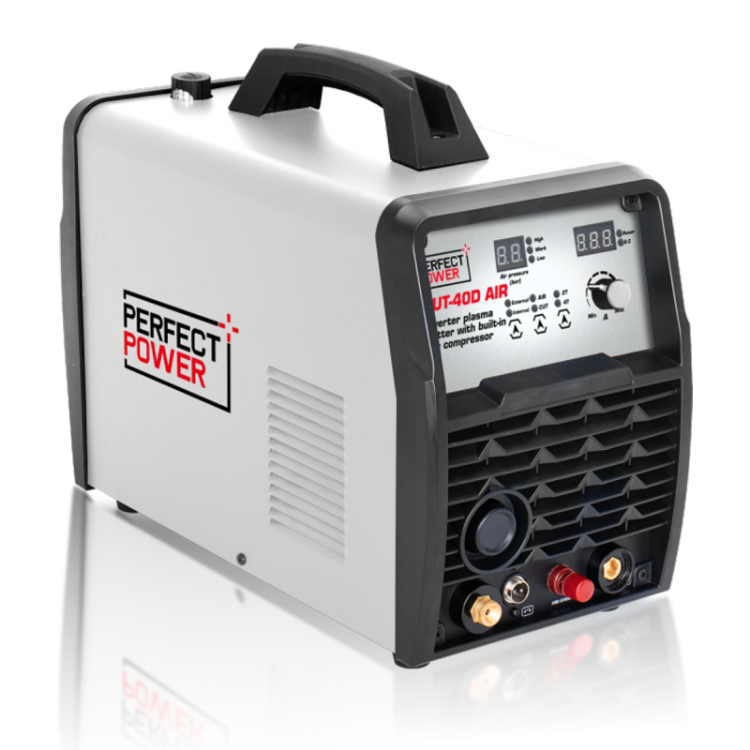

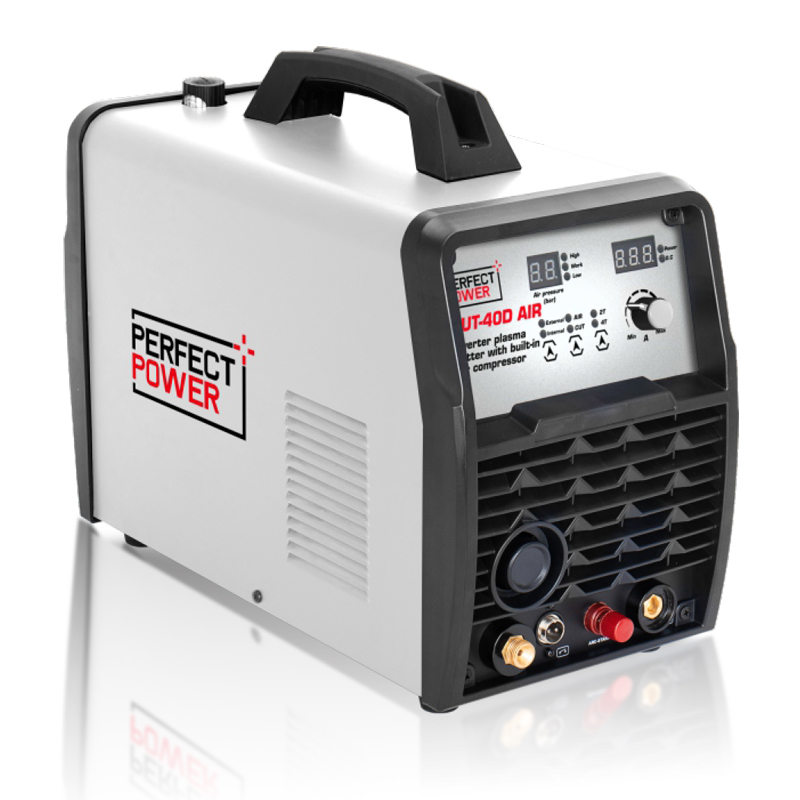

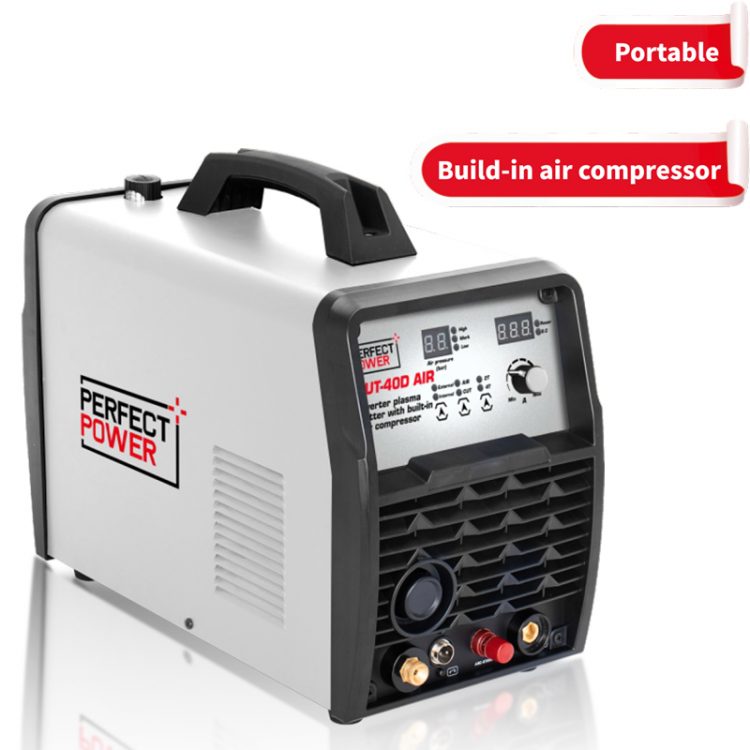

CUT-40D Air Plasma Cutter

40 Amp HF Plasma Cutter, 16mm Maximum Cut, 35% Duty Cycle, Plasma Cutting – Anywhere, Anytime

CUT-40D air plasma cutter is the newest model of the professional digital control plasma cutting machine with built-in air compressor advanced inverter technology. CUT-40D plasma cutter is a high-quality design manufactured in accordance with industrial-level standards. The plasma cutting machine has a high-cutting performance and is very user-friendly with a beautiful appearance and exquisite production technology. The instrument is installed inside the machine on the panel, making it more convenient and easier to use. The air filter is installed in the machine and is controlled automatically by a solenoid valve, which greatly improves the work efficiency. The normal cutting thickness of the CUT-40D air plasma cutting machine is 8mm, and the maximum cutting thickness is 16mm.

In Stock

CUT-40D air plasma cutter is the newest model of the professional digital control plasma cutting machine with built-in air compressor advanced inverter technology. CUT-40D plasma cutter is a high-quality design manufactured in accordance with industrial-level standards. The plasma cutting machine has a high-cutting performance and is very user-friendly with a beautiful appearance and exquisite production technology. The instrument is installed inside the machine on the panel, making it more convenient and easier to use. The air filter is installed in the machine and is controlled automatically by a solenoid valve, which greatly improves the work efficiency. The normal cutting thickness of the CUT-40D air plasma cutting machine is 8mm, and the maximum cutting thickness is 16mm.

Features:

1. Built-in reliable high-power air compressor, no additional gas source is required, stable gas output after long-term use.
2.2-3 times faster than the oxyacetylene cutting speed with significant benefits of less deformation, low costs and high efficiency.
3. Quick switch between built-in and external air pump.
4. HF is available for easy arc ignition.
5. Pilot arc starting increases cutting capability and speed.
6. Overheat, overcurrent, and overvoltage protection.
7. Simple operation, smooth precise cutting.
8. Narrow cutting seam, clean cutting edge,anti-deformation.

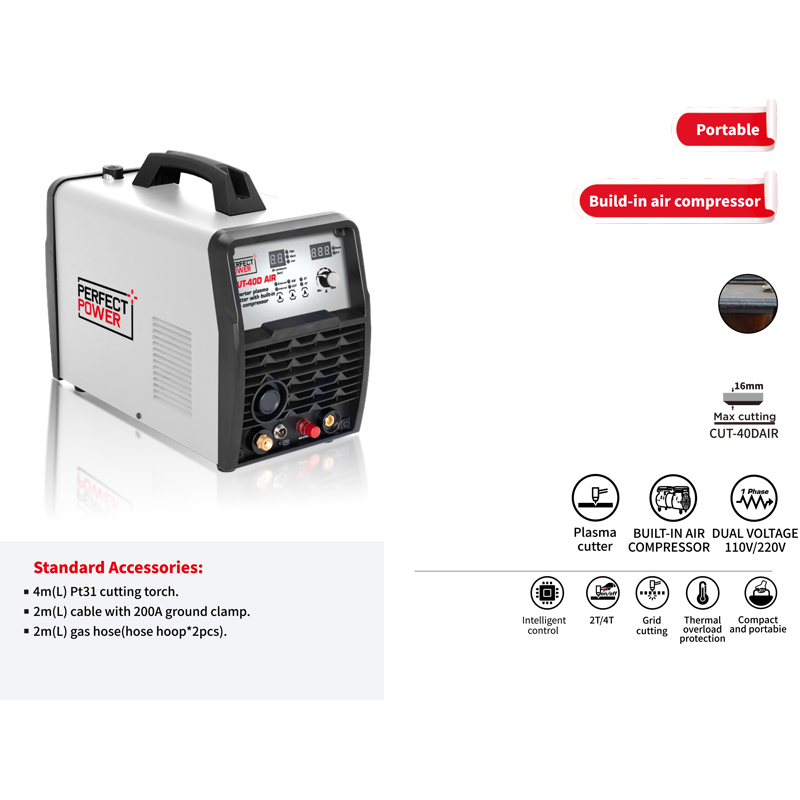

What’s Included:

2M(L) Power Cable(American standard)
2M(L) 25mm² Cable With 300A Ground Clamp
5M(L) AG60 6mm² Cutting Torch

Power input AC(V)

1ph 220V ±15% / 1ph 110V ±15%

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

5.8kVA

Rated current input(A)

38A

ated output current(A)/voltage(V)

40A/96V / 32A/81V

Max. cutting current (A)

40A / 32A

Open circuit voltage DC(V)

265V

Rated duty cycle(%)

60%

Max.cutting thickness(mm)

16mm

IP grade

IP21

Insulation grade

F

Dimensions(mm)

530*325*400 mm

N.M./G.W.(kg)

16.7kg/22.8kg

Quality cutting thickness (mm)

Steel/Carbon Steel:≤8 mm
Stainless Steel:≤8 mm
Aluminum:≤5 mm
Copper/Brass:≤3 mm

Welding Process

CUT / HF
