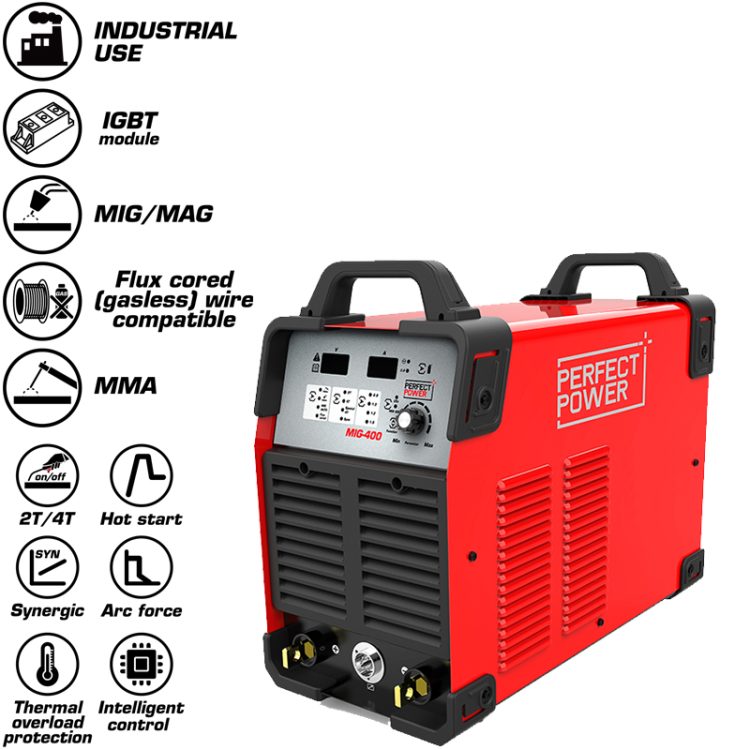

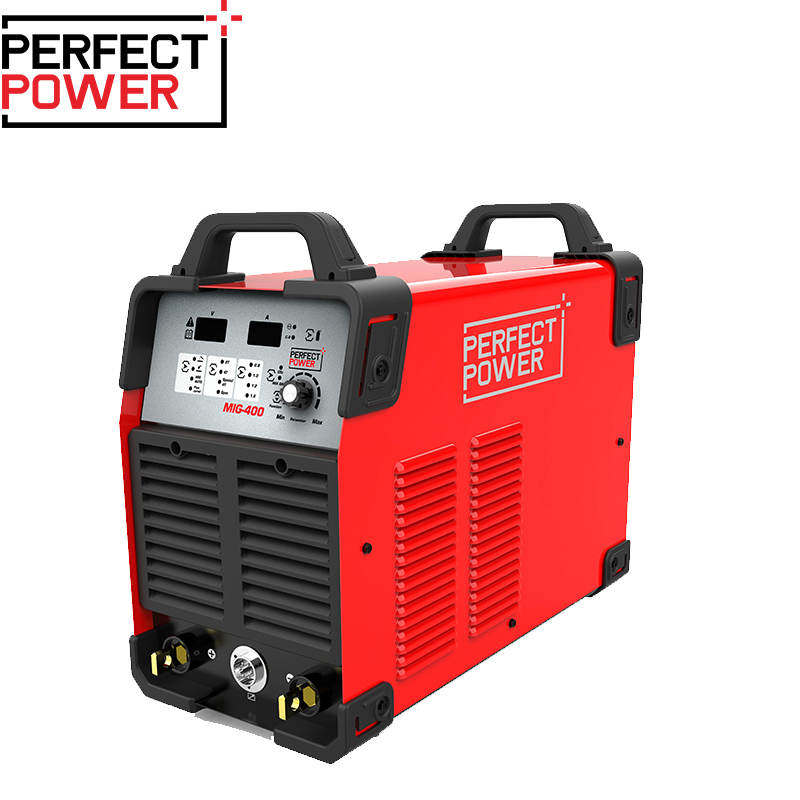

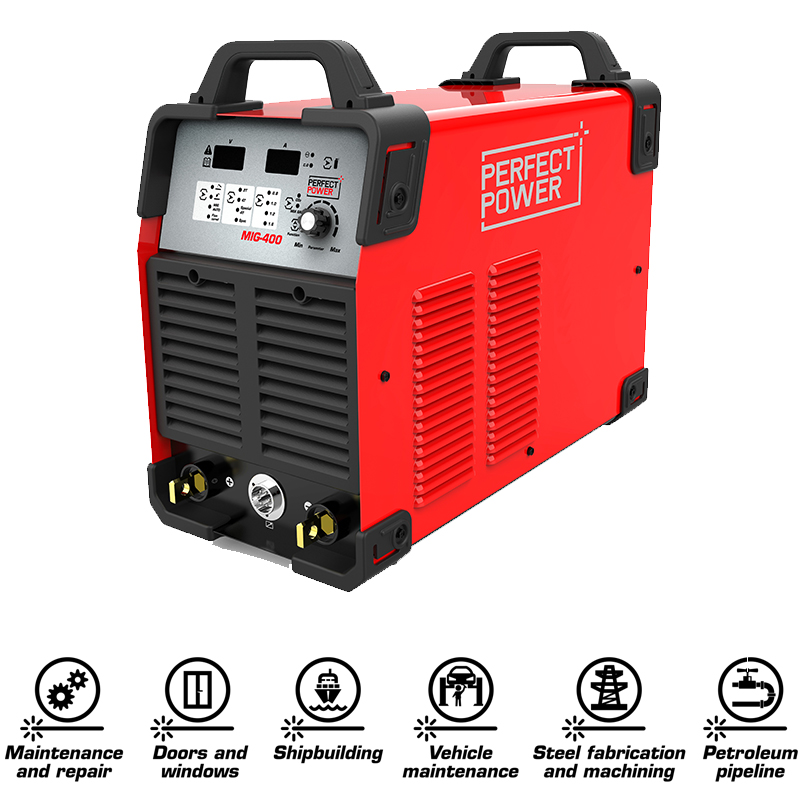

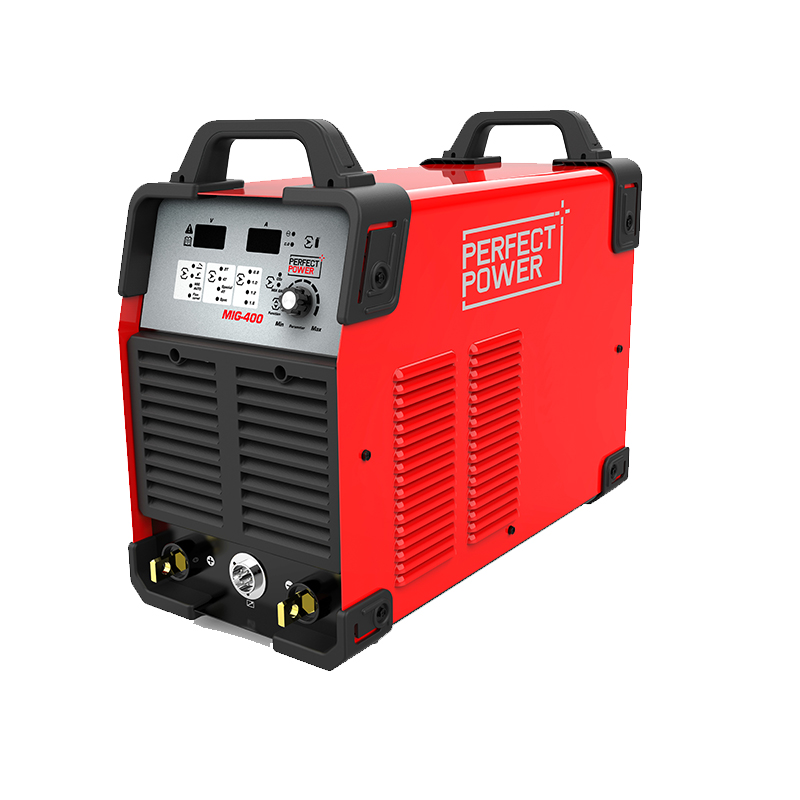

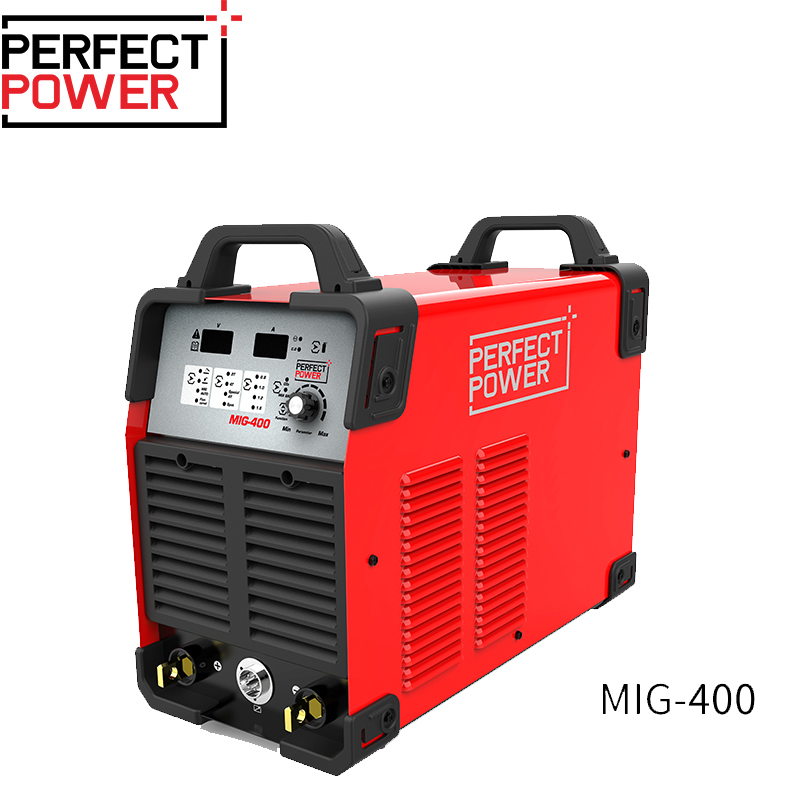

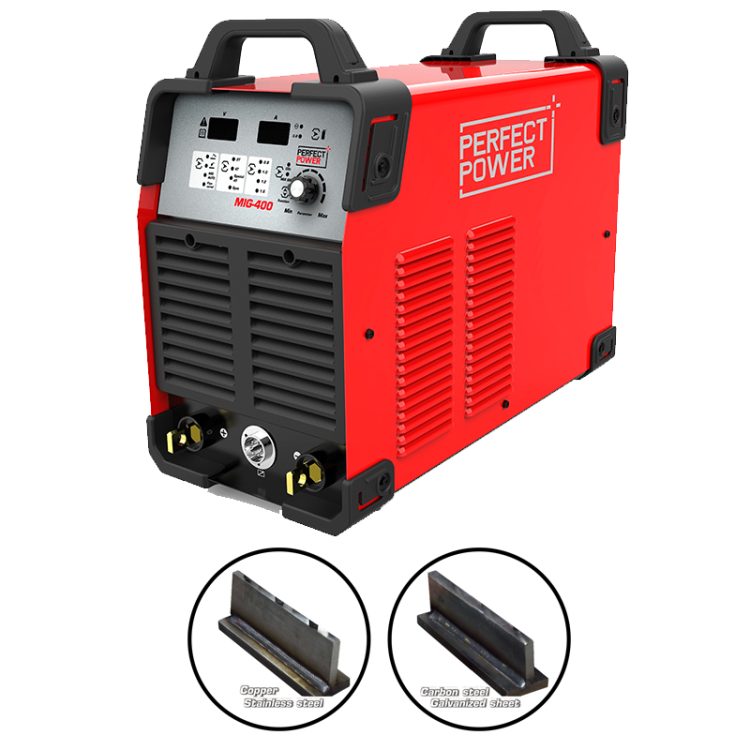

MIG-400 MIG MAG IGBT Inverter Welding Machine

In Stock

1. Multi-function welding – MIG/MAG, MMA, and FLUX CORED Wire welding.
2. 20kg wire spool capability for heavy industrial use.
3. 2T/4T function.
4. Stable arc with less spatter.
5. Industrial grade IGBT module adopted.
6. Portable separated wire feeder with control cables and control keys, can be carried to perform distance welding work.

Model

MIG-400

Power input AC(V)

3ph 380V ±10%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

17.1

Rated current input(A)

26

Rated output current(A)/voltage(V)

400/34.0(MIG) 400/36.0(MMA)

Welding current range(A)

50-400(MIG) 20-400(MMA)

Open circuit voltage DC(V)

58

Rated duty cycle(%)

60

Wire Feeding Speed(M/min)

2-18

IP grade

IP21S

Insulation grade

H

Dimensions(mm)

655*340*510

Weight (KG)

27

Wire Melting Type

spray transfer
