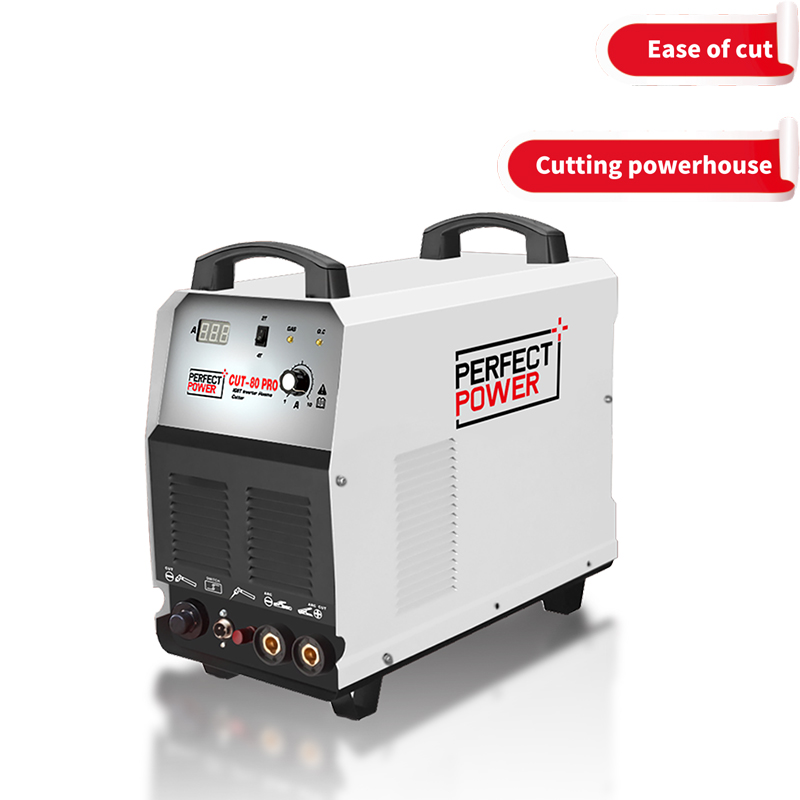

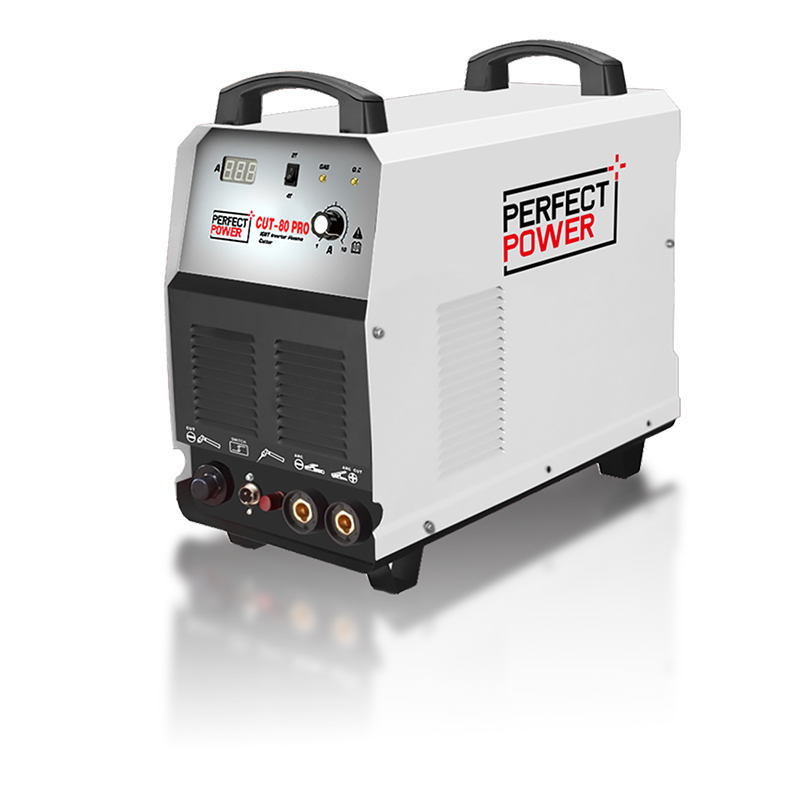

CUT-80PRO Plasma Cutter

80 Amp Non-Touch Pilot Arc Plasma Cutter, 30mm Maximum Cut, 60% Duty Cycle

CUT-80PRO plasma cutter is portable enough to carry to any job site. Hook up the compressed air, grab the torch, and start cutting right away. Due to its reliability and portability, this plasma cutting machine is ideal for onsite maintenance, small construction sites, HVAC, and demolition.The normal cutting thickness of the CUT-80PRO plasma cutting machine is 20 mm, and the maximum cutting thickness is 30 mm.

In Stock

CUT-80PRO plasma cutter is portable enough to carry to any job site. Hook up the compressed air, grab the torch, and start cutting right away. Due to its reliability and portability, this plasma cutting machine is ideal for onsite maintenance, small construction sites, HVAC, and demolition.

The normal cutting thickness of the CUT-80PRO plasma cutting machine is 20 mm, and the maximum cutting thickness is 30 mm.

Features:

1. 3ph/220V input power allows even 160A cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting function; the connector is optional.
3. MULTI-FUNCTION two in one, optional MMA function.
4. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
5. 2T/4T self-locking function.
6. Pilot Arc Starting increases cutting capability and cutting speed, improving the service life of the torch kit.
7. Heavy-duty cycle for industrial use.

What’s Included:

3M(L) 3*4mm²+1*2.5mm² Power Cable
3M(L) 35mm² cable with 300A ground clamp
3M(L) 35mm² cable with 300A electrode holder
(Copper-clad aluminum wire、50-70)
5M(L) P80 cutting torch
3M(L) Gas Hose (Hose Hoop*2pcs)
Valve/regulator (1PC)

Power input AC(V)

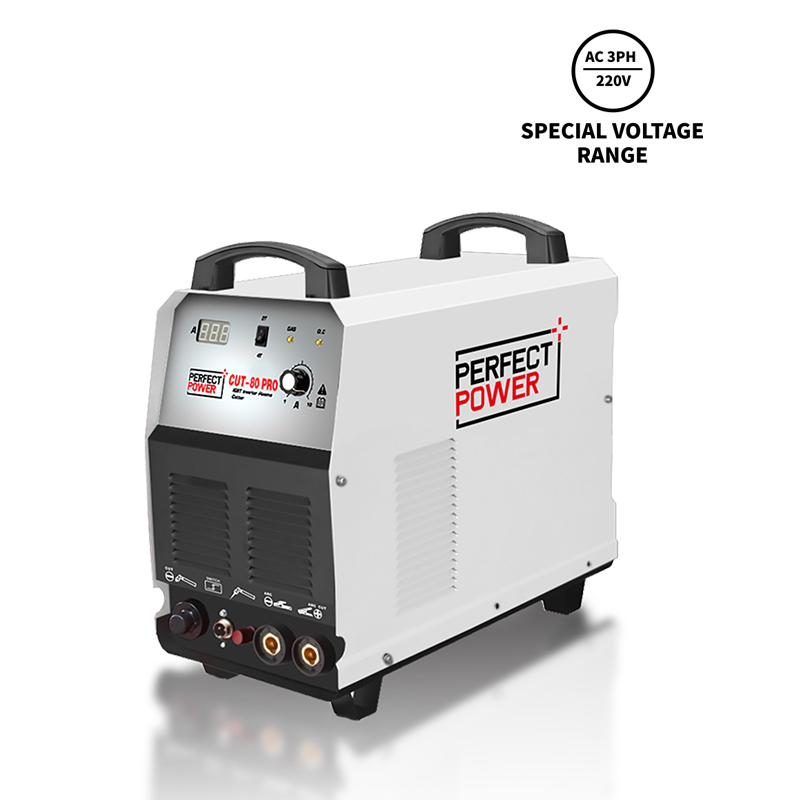

3ph 220V ±15%

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

14.0kVA

Rated current input(A)

36.5A

ated output current(A)/voltage(V)

80A/112V

Max. cutting current (A)

80A

Open circuit voltage DC(V)

280V

Rated duty cycle(%)

60%

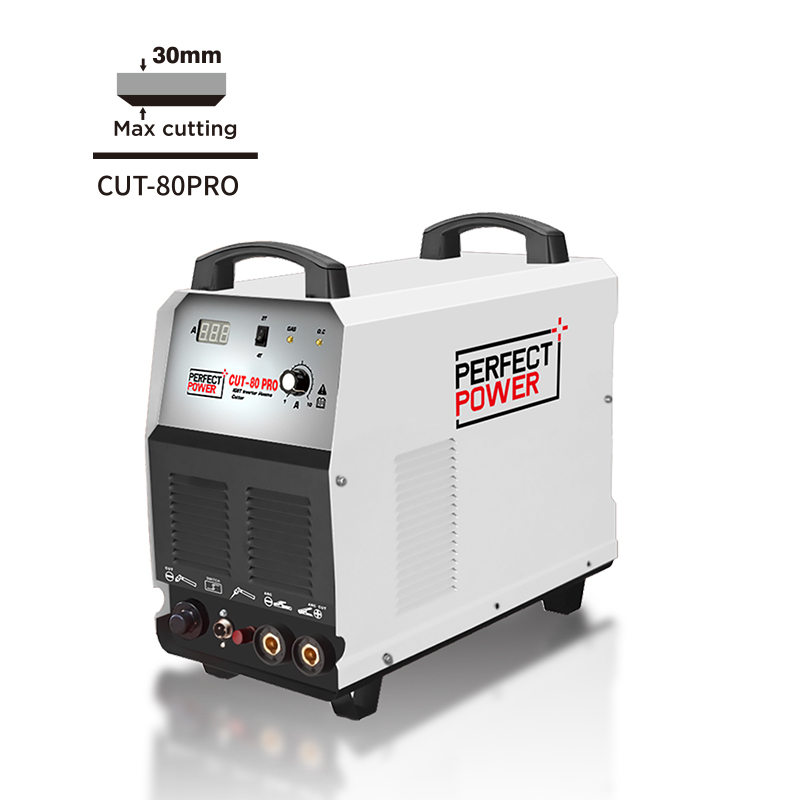

Max.cutting thickness(mm)

30mm

IP grade

IP21

Insulation grade

F

Dimensions(mm)

575*333*490 mm

N.M./G.W.(kg)

16.5kg/19.0kg

Quality cutting thickness (mm)

Steel/Carbon Steel:≤20 mm
Stainless Steel:≤20 mm
Aluminum:≤10 mm
Copper/Brass:≤5 mm

Welding Process

CUT / MMA / HF / Pilot-arc / 2T / 4T
