1. Multi-function welding – MIG/MAG, LIFT TIG, MMA, FLUX CORED Wire welding.
2. 1KG/5KG wire spool capable.
3. Stable arc with less spatter.
4.Ideal for use in outdoor and indoor conditions.
Excellent performance for the price
It delivers powerful performance

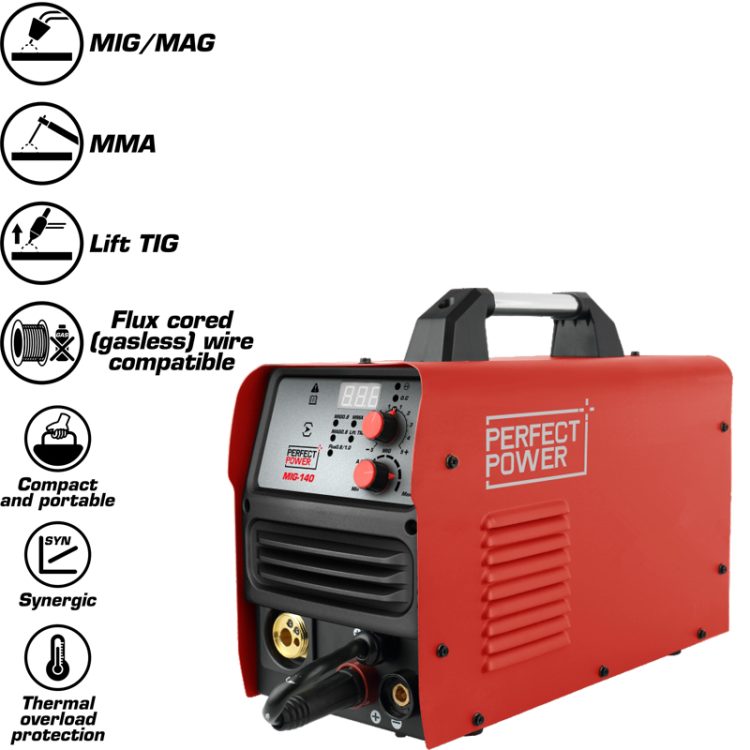

Multi-function welding - MIG/MAG / LIFT TIG / MMA / FLUX CORED Wire welding
Model | MIG-140 |
---|---|
Power input AC(V) | 1ph 220V ±15% |
Power input frequency(Hz) | 50/60 |
Max. Load Power Capacity(kVA) | 5.7 |
Rated current input(A) | 26 |
Rated output current(A)/voltage(V) | 140/21.0(MIG) 140/25.6(MMA) |
Welding current range(A) | 30-140(MIG) 20-140(MMA) |
Open circuit voltage DC(V) | 60 |
Rated duty cycle(%) | 60 |
Wire Feeding Speed(M/min) | 2-15 |
IP grade | IP21 |
Insulation grade | H |
Dimensions(mm) | 520*240*375 |
Weight (KG) | 10.2 |
Wire Melting Type | short circuit transfer |
