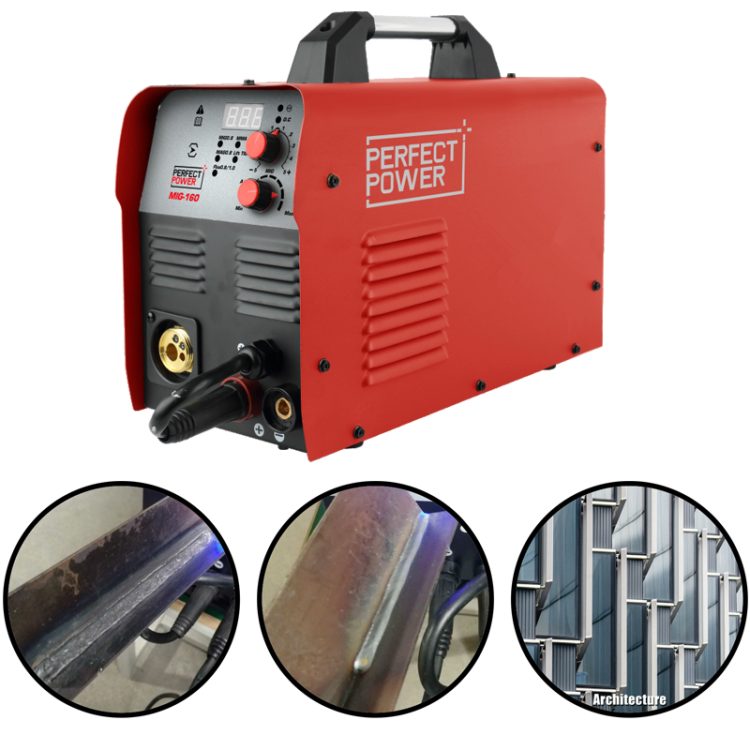

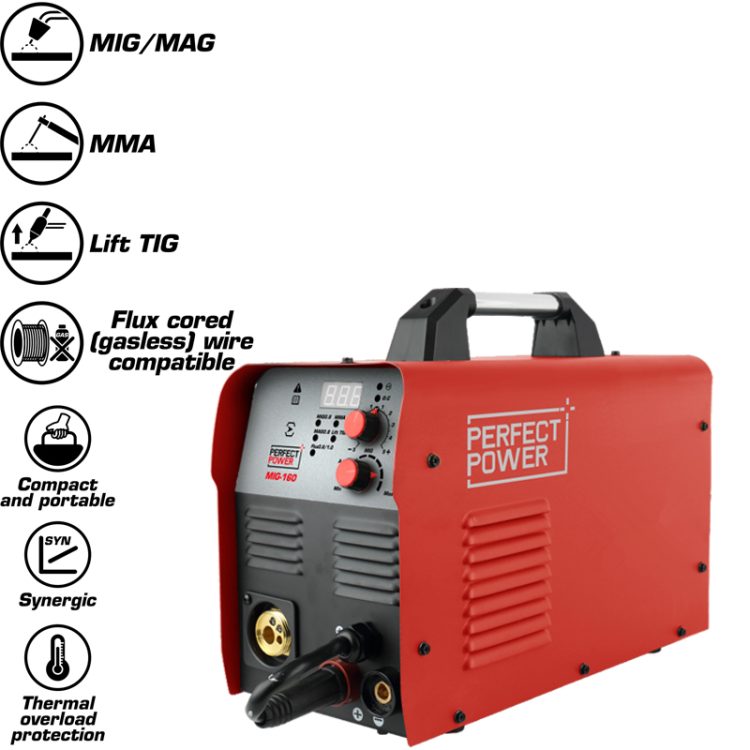

1. Multi-function welding – MIG/MAG, LIFT TIG, MMA, FLUX CORED Wire welding.
2. 1KG/5KG wire spool capable.
3. Stable arc with less spatter.
4.Ideal for use in outdoor and indoor conditions.

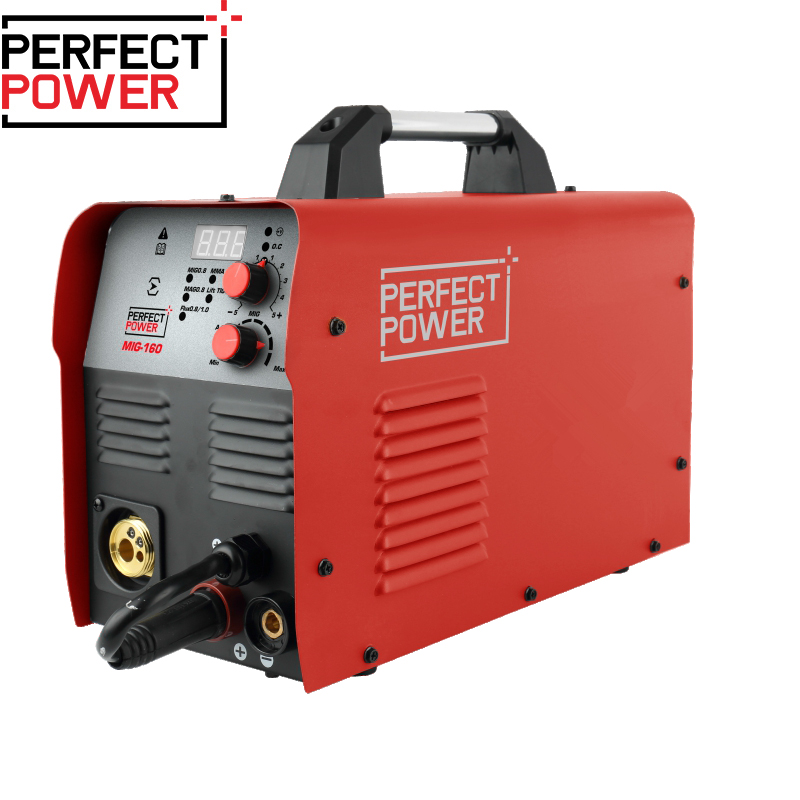

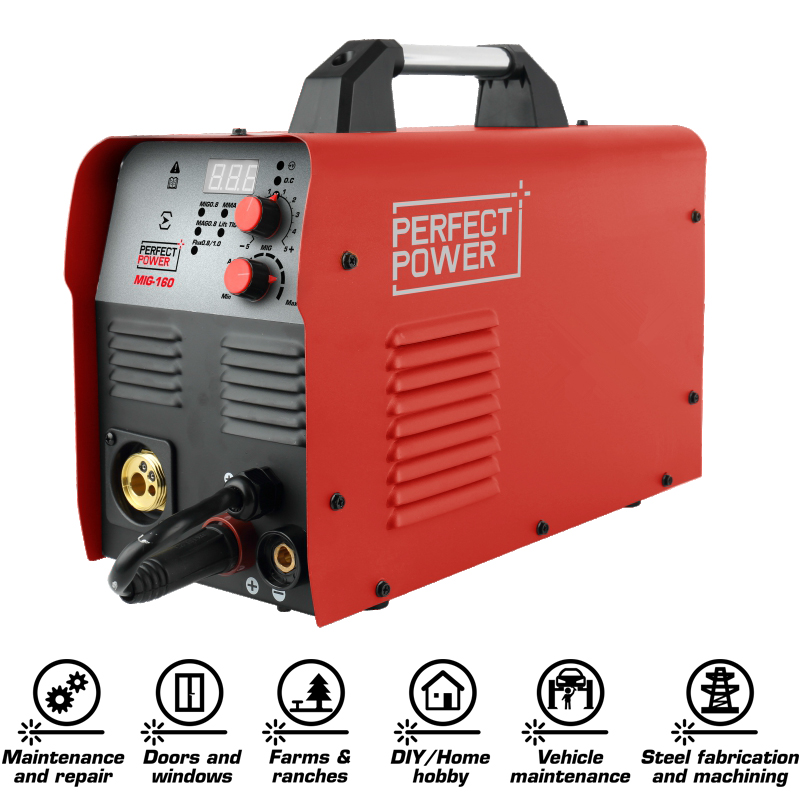

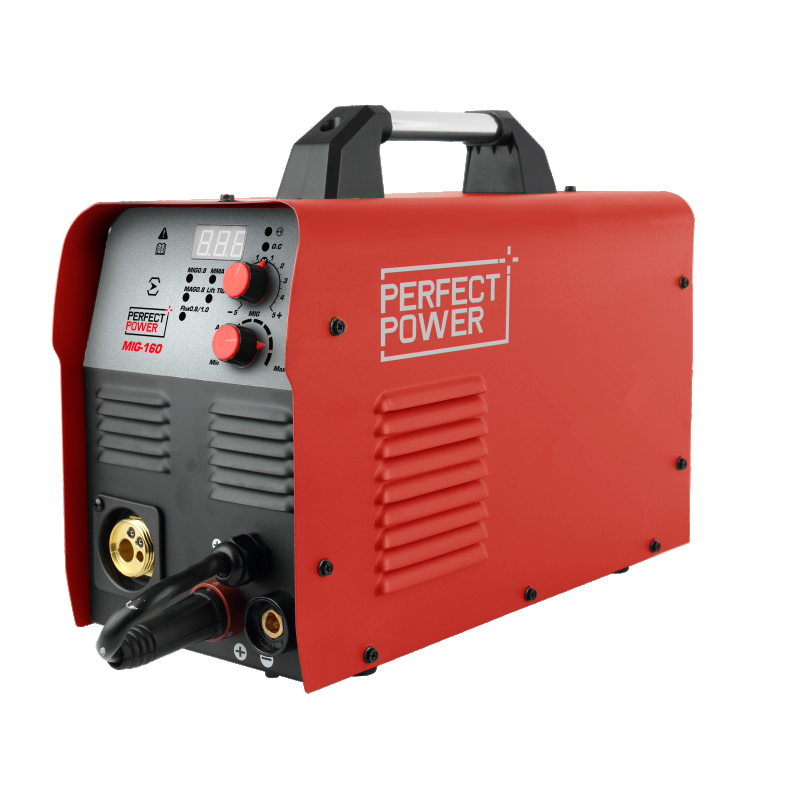

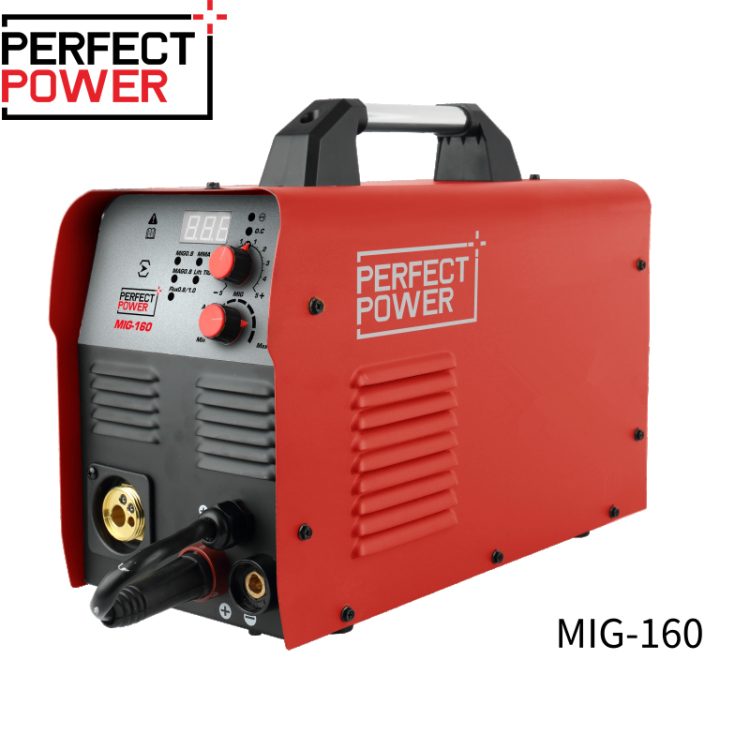

Excellent performance for the priceIt delivers powerful performanceMulti-function welding - MIG/MAG / LIFT TIG / MMA / FLUX CORED Wire welding| Model | MIG-160 |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 6.4 |
| Rated current input(A) | 29 |
| Rated output current(A)/voltage(V) | 160/22.0（MIG） 160/26.4（MMA） |
| Welding current range(A) | 30-160（MIG） 20-160（MMA） |
| Open circuit voltage DC(V) | 60 |
| Rated duty cycle(%) | 60 |
| Wire Feeding Speed(M/min) | 2-15 |
| IP grade | IP21 |
| Insulation grade | H |
| Dimensions(mm) | 520*240*375 |
| Weight (KG) | 10.6 |
| Wire Melting Type | short circuit transfer |
Mig-160 Mig Welder Video
