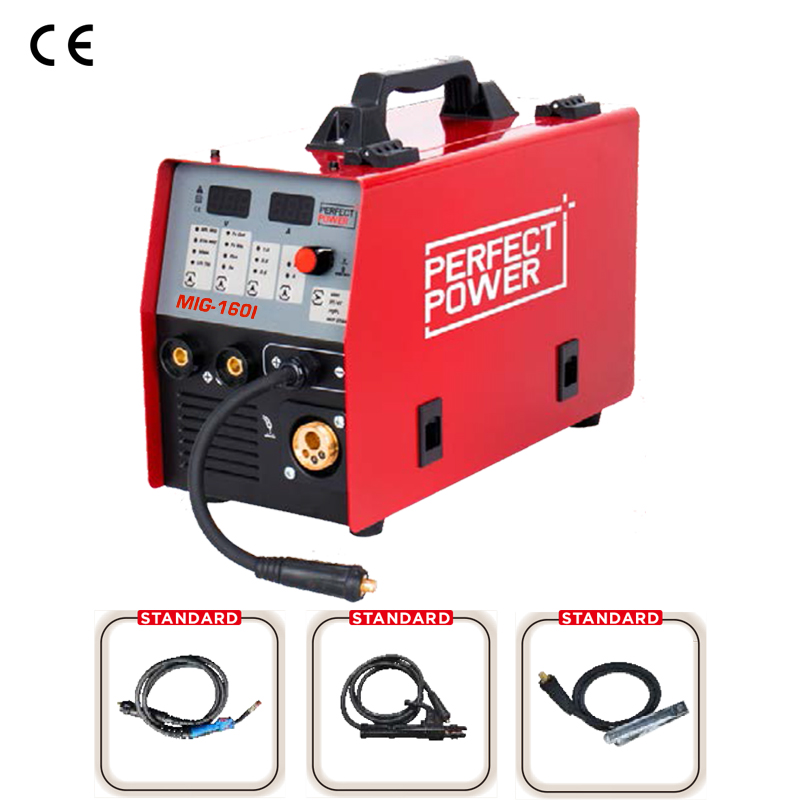

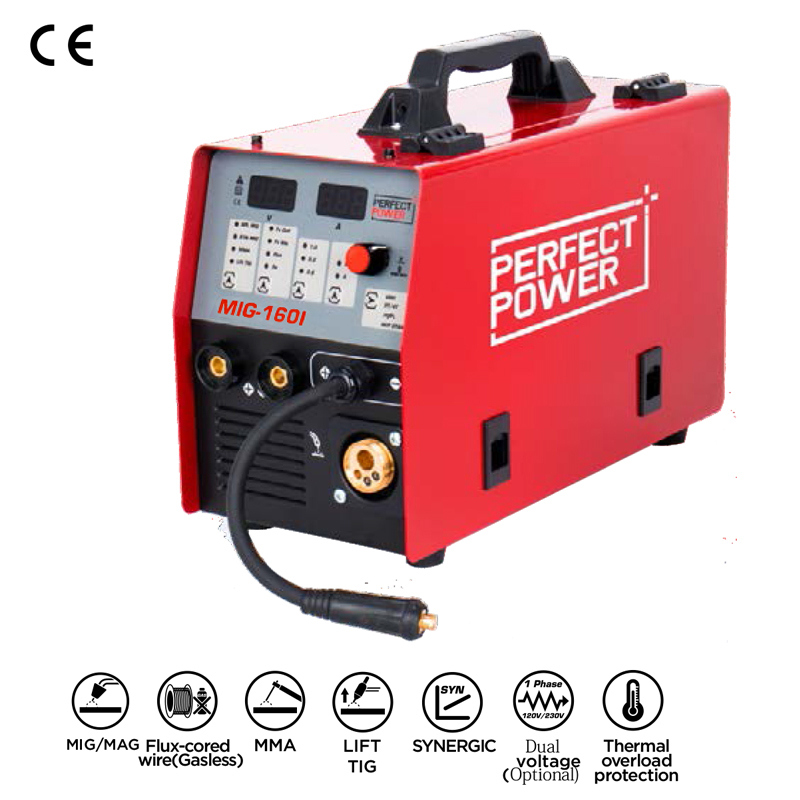

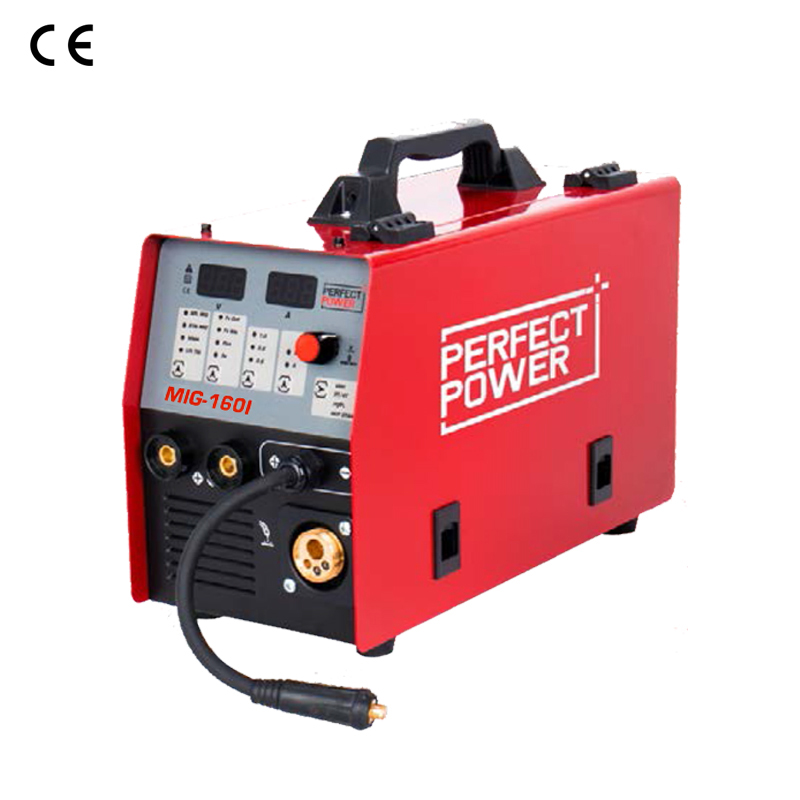

Perfect Power MIG-160I, Multi-function 160-Amp MIG/MAG/Flux-cored/Lift-TIG/Stick Arc DC Inverter Welder, Can weld all metals, Spool gun weld aluminum.
1. Portable Multi-function MIG/MAG welder with Double Pulse. Advanced IGBT inverter technology.
2. Multiple processes with Gas/No Gas MIG, MMA, and LIFT-TIG.
3. Digital control Pulse MIG and Double Pulse MIG for Aluminum welding.
4. The synergetic setting is an easy setup. Available for 1KG and 5KG wire spools.
5. Automatic over-current, overheat, and overvoltage protection.
MIG Welder Factory Price
Portable Multi-function MIG/MAG welder
Support OEM/ODM Orders
| Model | MIG-160I |
|---|---|
| Power input AC(V) | 1pH 220V |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 4.5 kVA MIG welding machine |
| Rated current input(A) | 20.5 |
| Rated output current(A)/voltage(V) | 160/20.4 |
| Welding current range(A) | 30~160 |
| Open circuit voltage DC(V) | 56 |
| Rated duty cycle( 40℃) | 35% |
| Wire Feeding Speed(M/min) | 2~14 |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 525*300*375 |
| Weight (KG) | 8.5/11 |
| Wire Melting Type | spray transfer |
