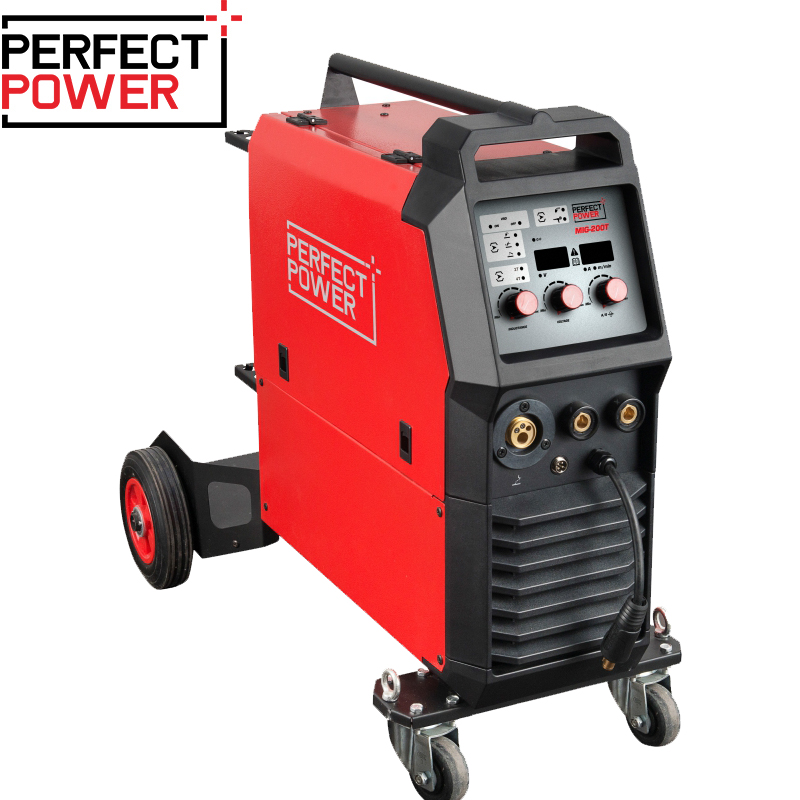

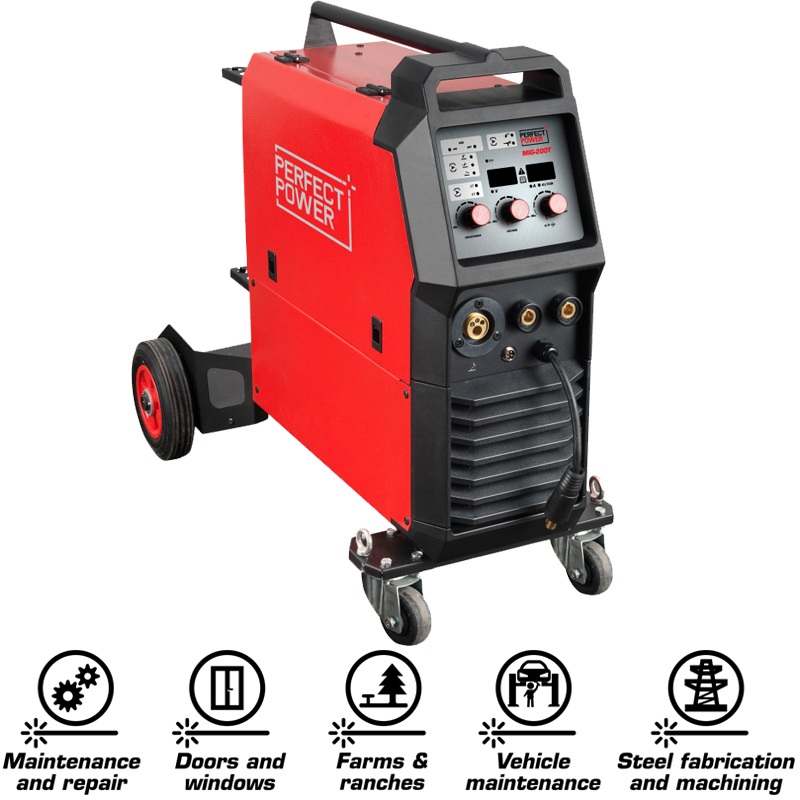

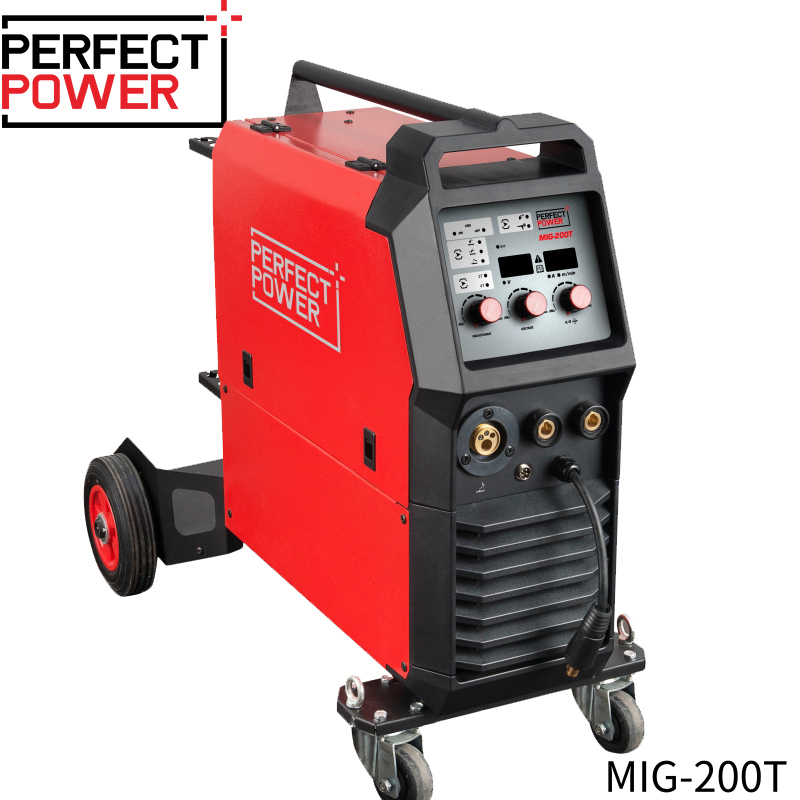

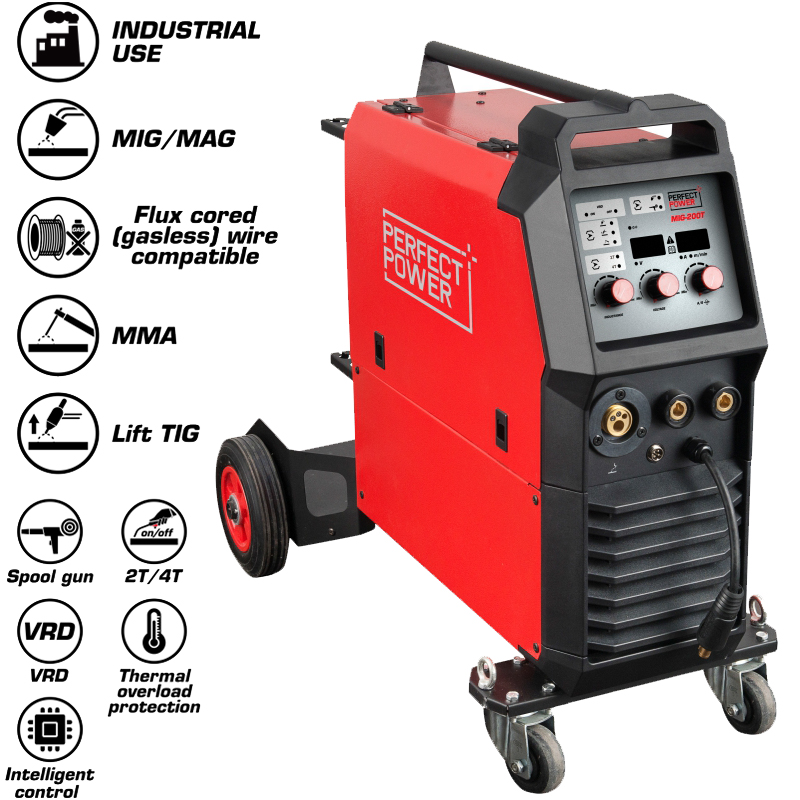

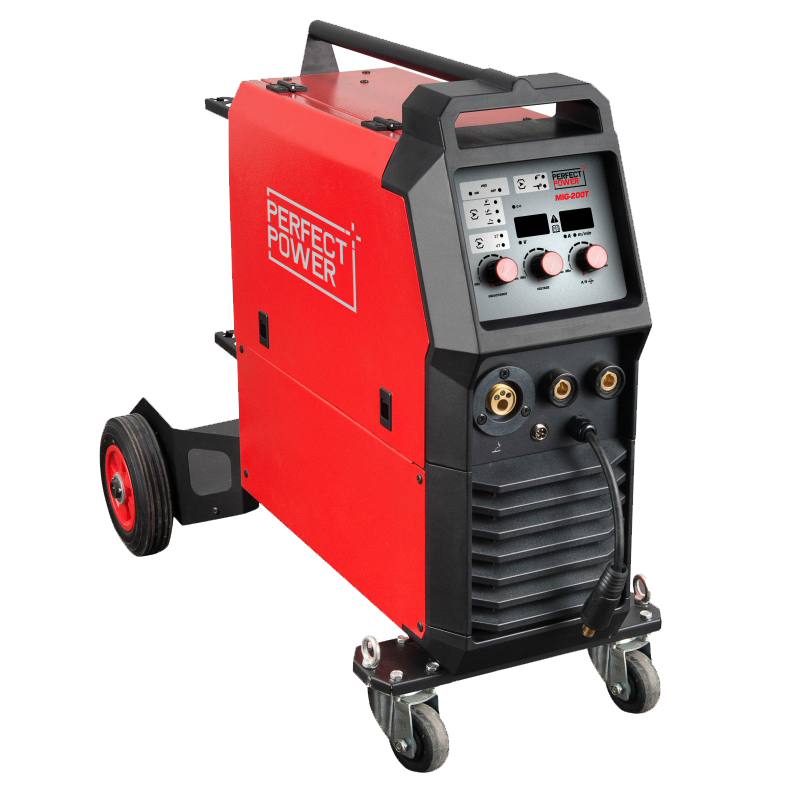

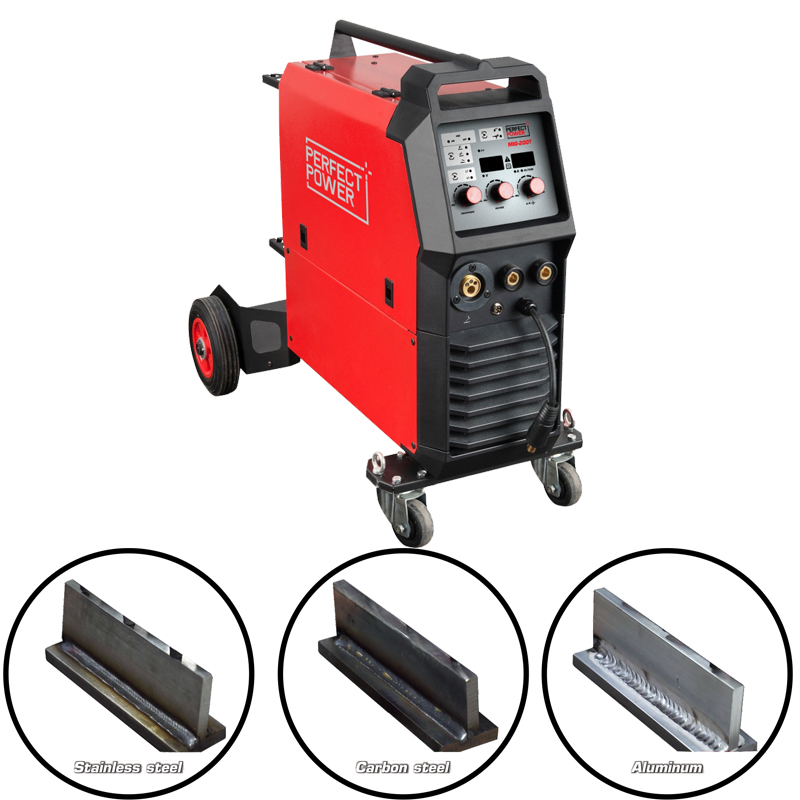

MIG-200T MIG MAG IGBT Inverter Welding Machine

In Stock

1. Multi-function welding – MIG/MAG, LIFT TIG, MMA, Spool Gun, and FLUX CORED Wire welding.
2. Capable for 15kg wire spool.
3. Professional MMA welding process with VRD function.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.
7. Standard equipped with cylinder rack.

Model

MIG-200T

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

8.2(MIG) 9.6(MMA) 6.2(TIG)

Rated current input(A)

37.4(MIG) 43.6(MMA) 28.0(TIG)

Rated output current(A)/voltage(V)

200/24.0(MIG) 200/28.0(MMA) 200/18.0(TIG)

Welding current range(A)

50-200(MIG) 25-200(MMA) 15-200(TIG)

Open circuit voltage DC(V)

56

Rated duty cycle(%)

60

Wire Feeding Speed(M/min)

2-14

IP grade

IP21

Insulation grade

H

Dimensions(mm)

1000x430x795

Weight (KG)

43.5

Wire Melting Type

short circuit transfer
