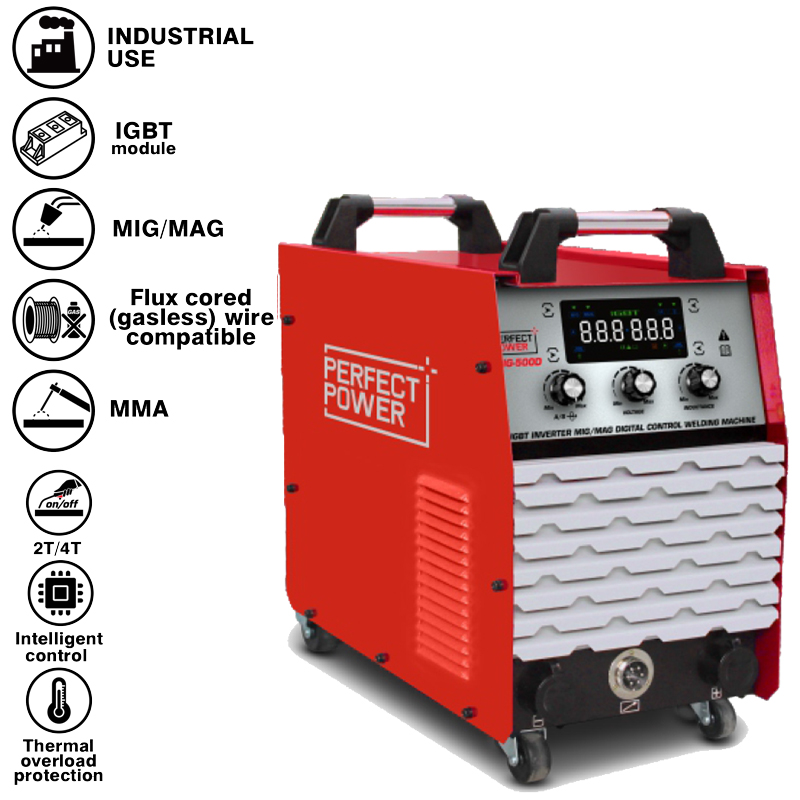

1. Multi-function welding – MIG/MAG, MMA, and FLUX CORED Wire welding.
2. 20kg wire spool capability for heavy industrial use.
3. 2T/4T function.
4. Stable arc with less spatter.
5. Industrial grade IGBT adopted.
6. Portable separated wire feeder with control cables and control keys, can be carried to perform distance welding work.
2T/4T function
Industrial grade IGBT adopted
Multi-function welding
| Model | MIG-500D |
|---|---|
| Power input AC(V) | 3ph 380V ±10% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 25 |
| Rated current input(A) | 38.5 |
| Rated output current(A)/voltage(V) | 500/39.0(MIG) 500/40.0(MMA) |
| Welding current range(A) | 60-500(MIG) 40-500(MMA) |
| Open circuit voltage DC(V) | 70 |
| Rated duty cycle(%) | 60 |
| Wire Feeding Speed(M/min) | 2-18 |
| IP grade | IP21S |
| Insulation grade | H |
| Dimensions(mm) | 658*383*658 |
| Weight (KG) | 32/34 |
| Wire Melting Type | spray transfer |

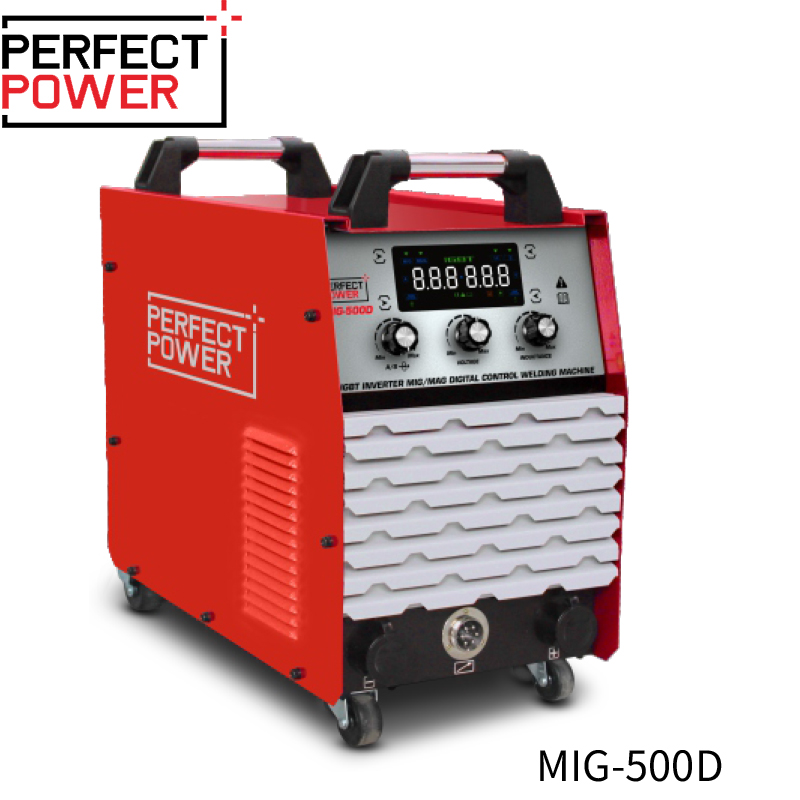

MIG-500D MIG Welder
