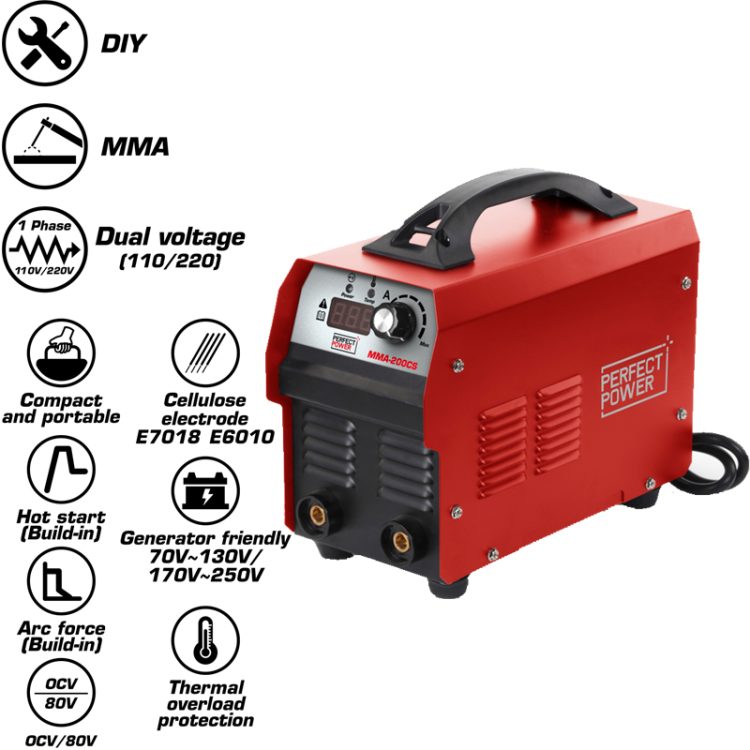

1.80V open circuit voltage ensures smooth cellulose electrode welding, such as E7018 and E6010.
2.Compact design, lightweight, but robust.
3.User-friendly and cost effective.
4.Arc Force, Anti-Stick and Hot Start technology enable easy arc starting, arc stability and smooth welding.
5.Generator Friendly : wide voltage range supporting, 70V ~ 130v /170V ~ 250V.
6.Overload protection.
7.You can just plug and then weld with a complete accessory set : MMA welding cable, earth cable, welding mask and steel brush.
Arc Force/Anti-Stick and Hot Start technology enable easy arc starting arc stability and smooth weldinOverload protection is a great featurePortable and lightweight design and handle makes transportation easy| Model | MMA-200CS |
|---|---|
| Power input AC(V) | 1ph 110V/220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 7.0（220V） 3.8（110V） |
| Rated current input(A) | 32（220V） 35（110V） |
| Rated output current(A)/voltage(V) | 200/28.0（220V） 120/24.8（110V） |
| Welding current range(A) | 20-200（220V） 20-120（110V） |
| Open circuit voltage DC(V) | 80 |
| Rated duty cycle(%) | 60 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 380*240*300 |
| N.W(kg) | 3.5 |
MMA-200CS MMA Welder Video
