1. Multi-function welder: DC TIG, Cold TIG, MMA, and Clean function.
2. Exceptional energy-saving performance and high reliability.
3. With HF TIG arc starting, allows to strike the arc easily with high frequency and make it easy to establish an arc under a variety of conditions
4. Digital control technology, accurate welding power control, Cold TIG spot welding 0.4mm sheet no deformation.
5. Clean function, to clean the rust and oil on the surface of the material, like carbon steel and stainless steel.
6. Adjustable post-flow function.
7. Compact and portable, high efficiency and energy
8. Overcurrent & heating protection.
Adjustable post-flow function
Digital control technology
Multi-function welder

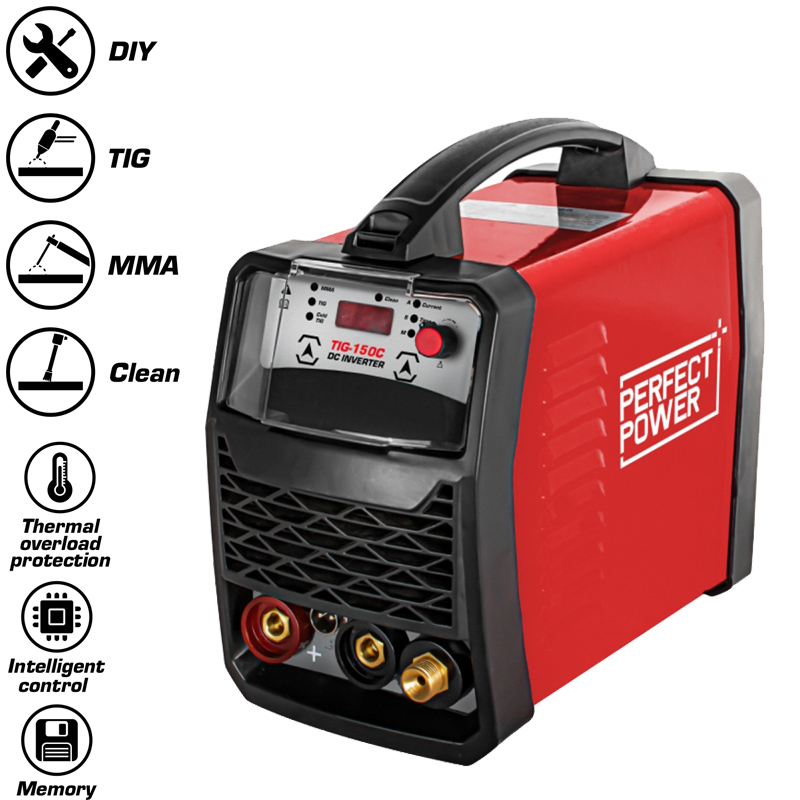

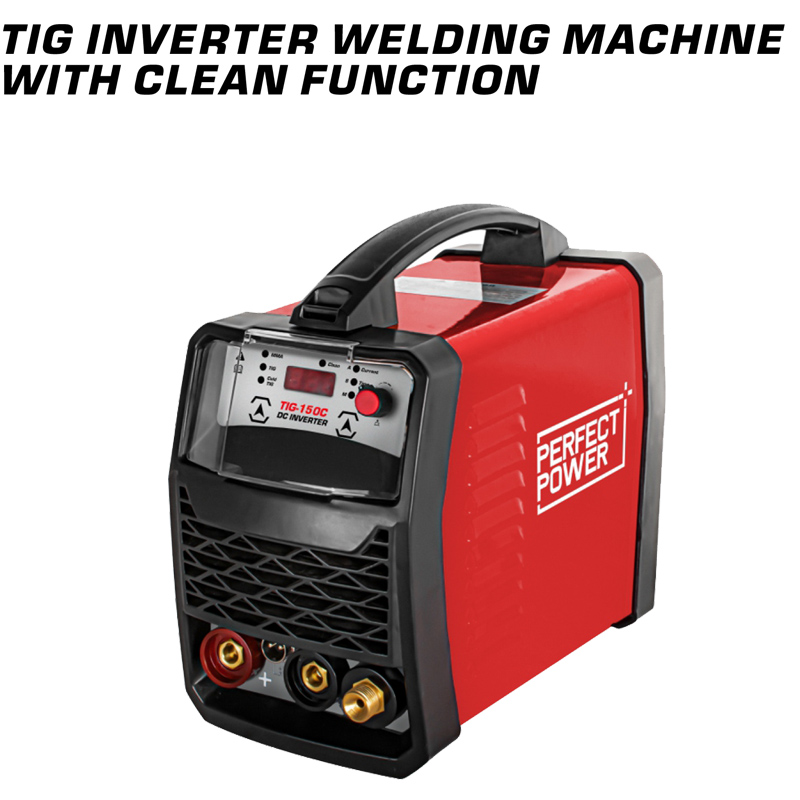

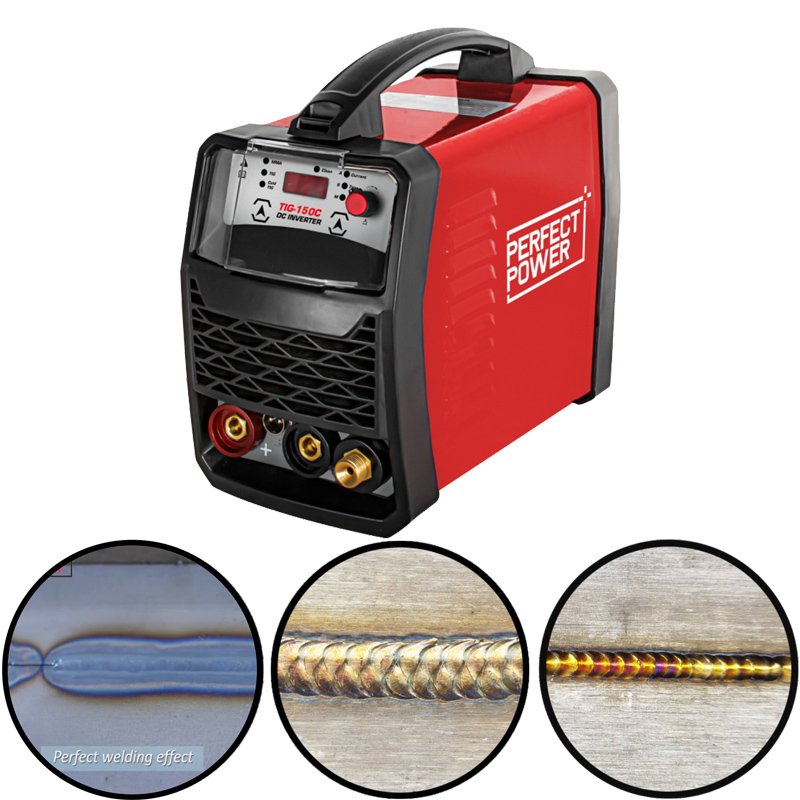

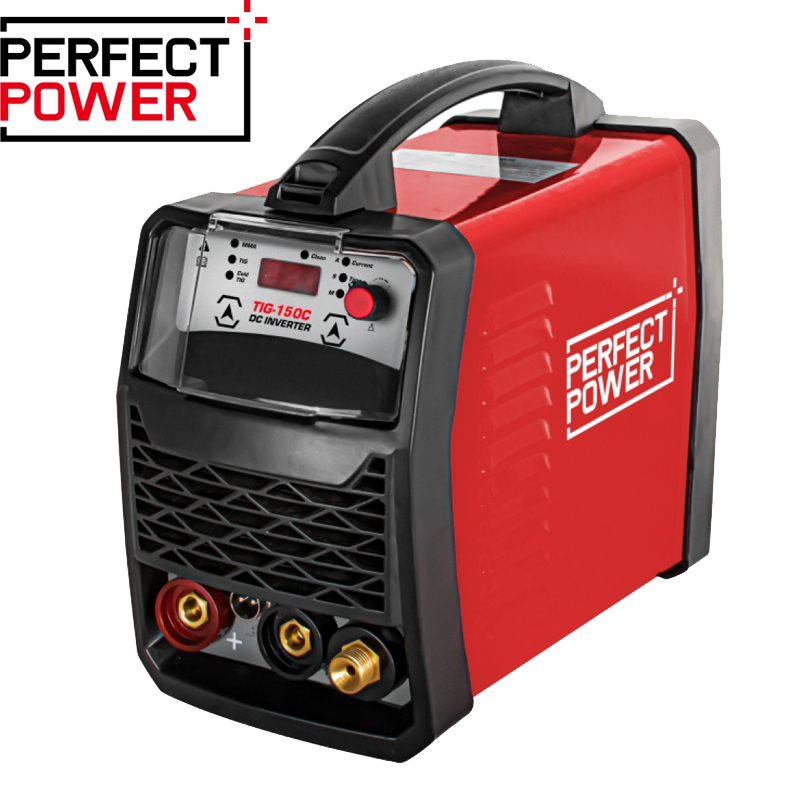

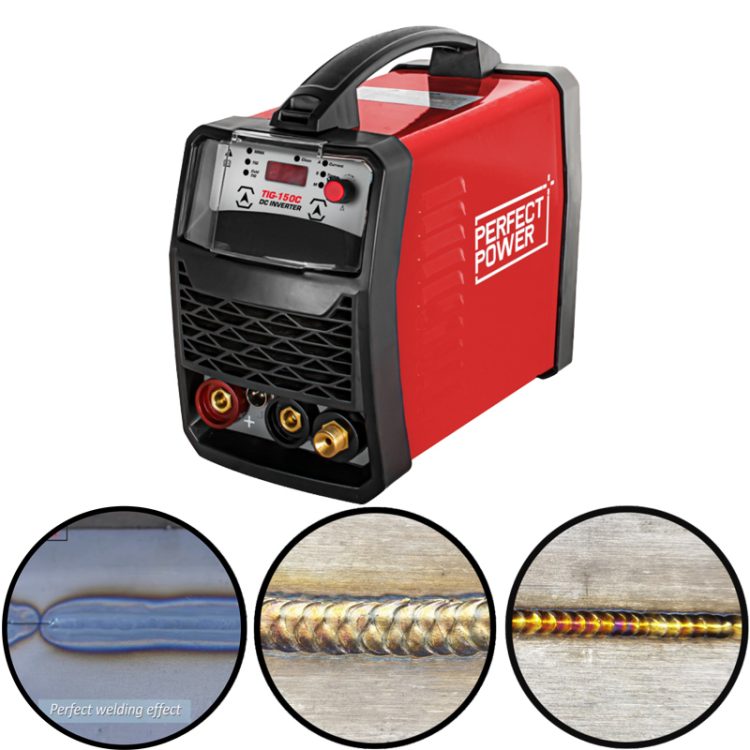

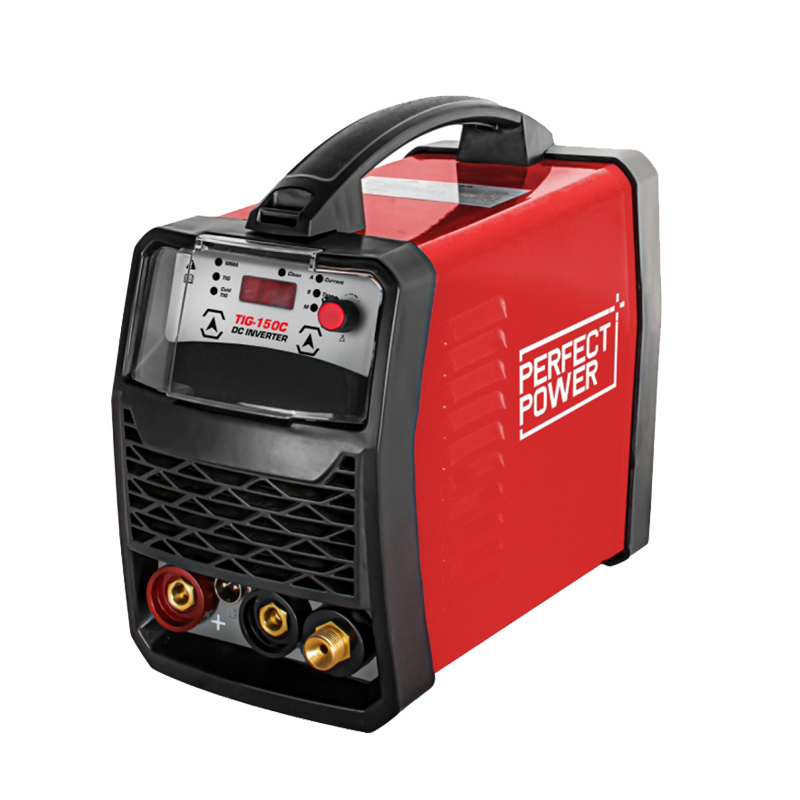

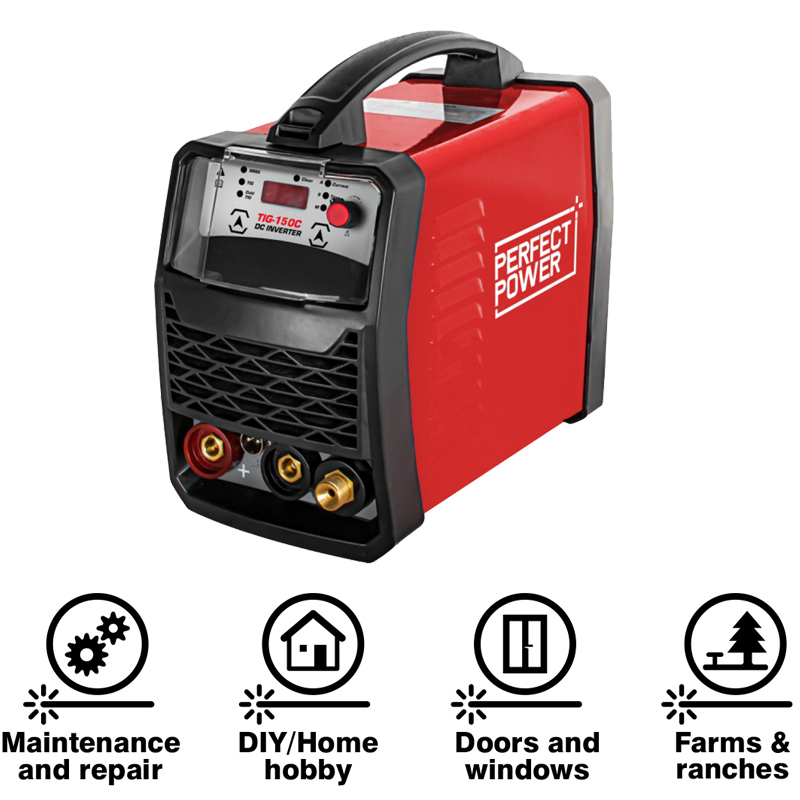

Model | TIG-150C |
---|---|
Power input AC(V) | 1ph 220V ±15% |
Power input frequency(Hz) | 50/60 |
Max. Load Power Capacity(kVA) | 6.6 kva tig welder |
Rated current input(A) | 20.4 |
Rated output current(A)/voltage(V) | 150/16.0(TIG) 130/25.2(MMA) |
Welding current range(A) | 20-150(TIG) 20-130(MMA) |
Open circuit voltage DC(V) | 56 |
Rated duty cycle(%) | 40 |
IP grade | IP21S |
Insulation grade | F |
Dimensions(mm) | 450*245*315 |
N.W.(kg) | 6.9/9.4 |
