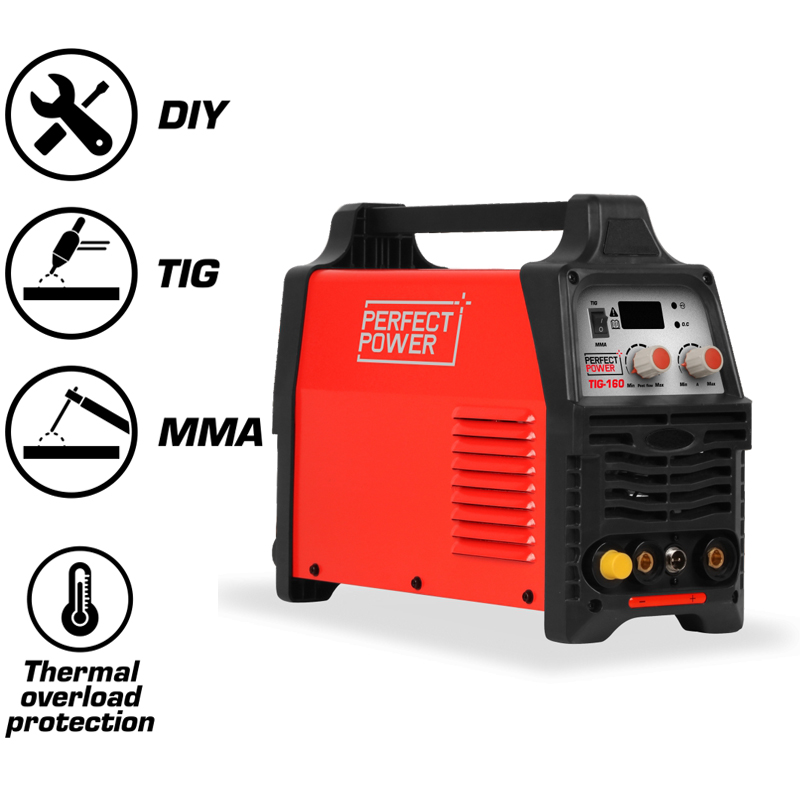

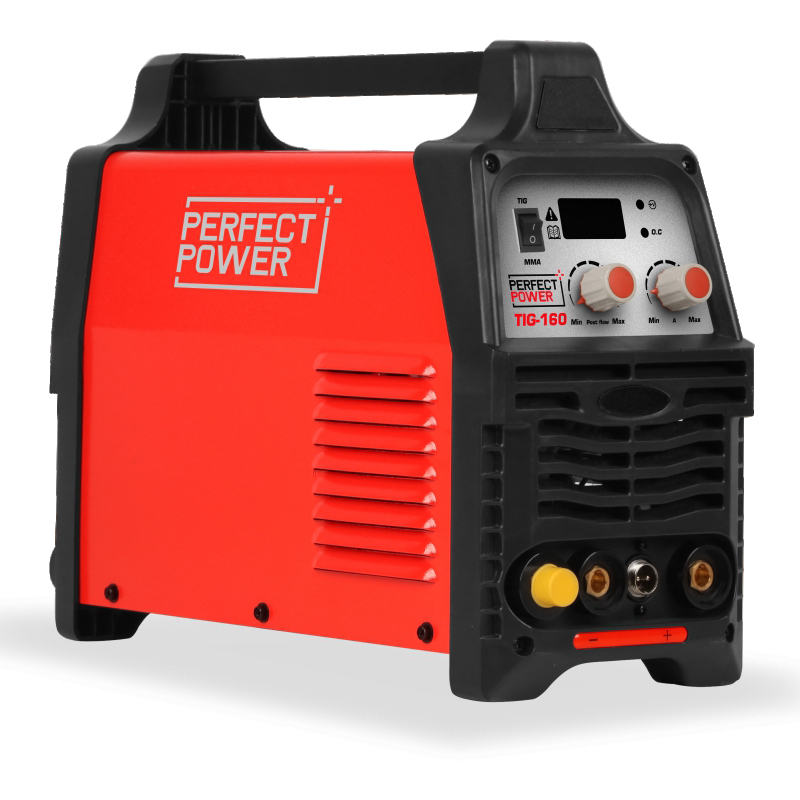

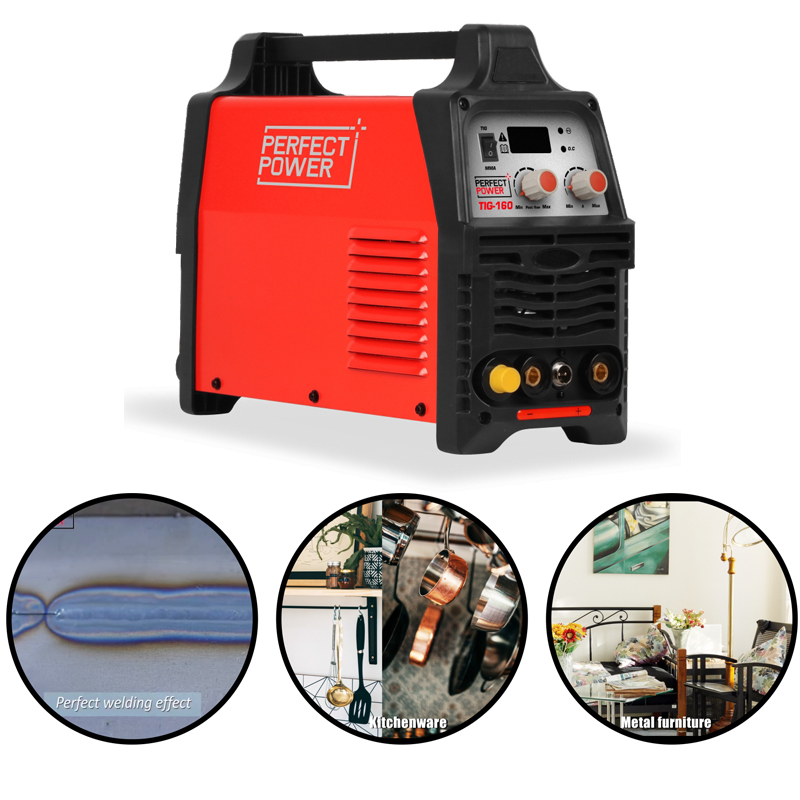

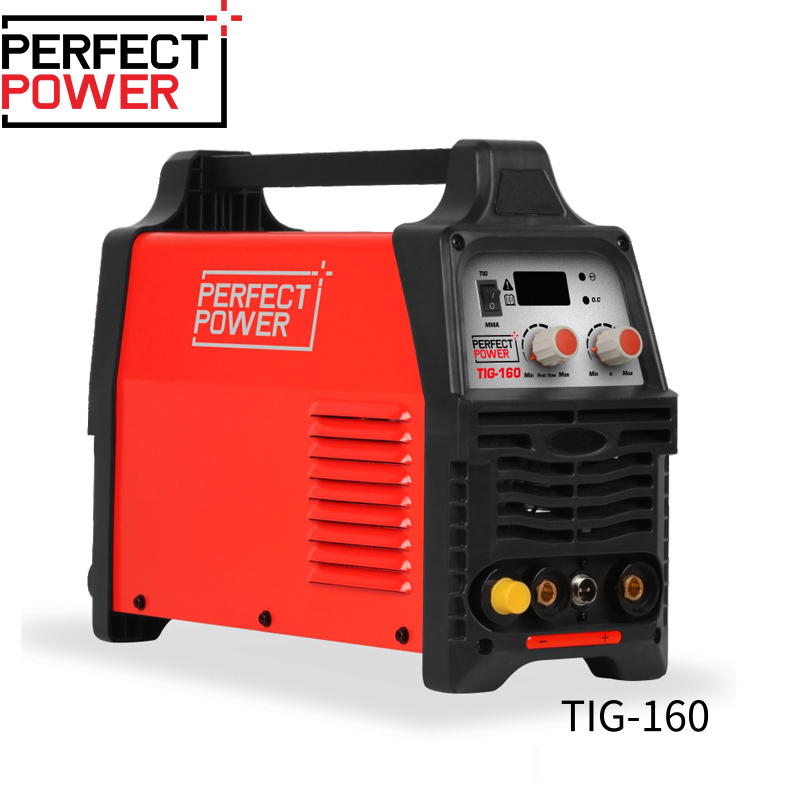

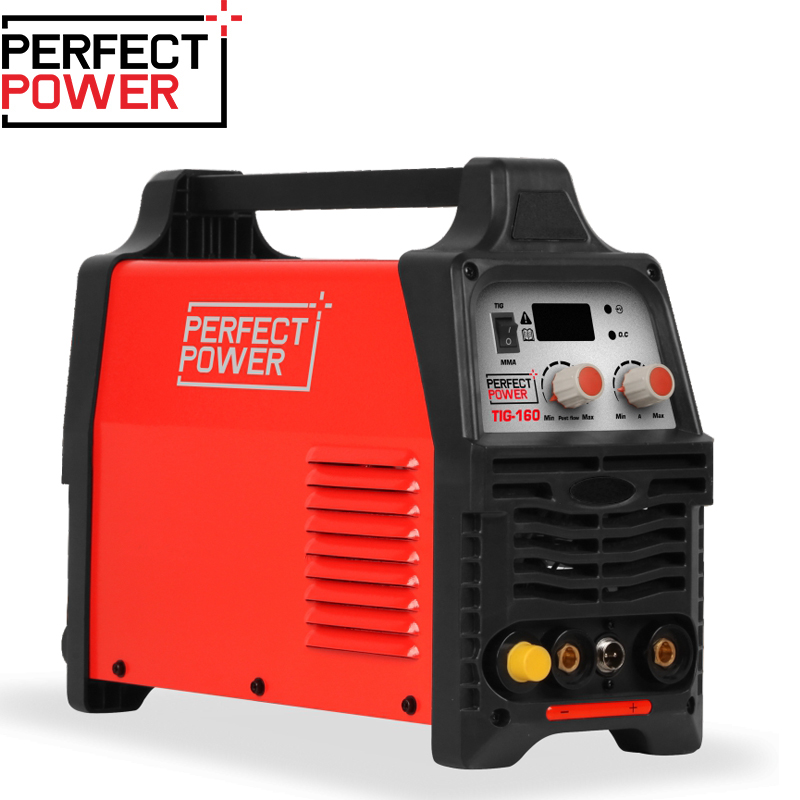

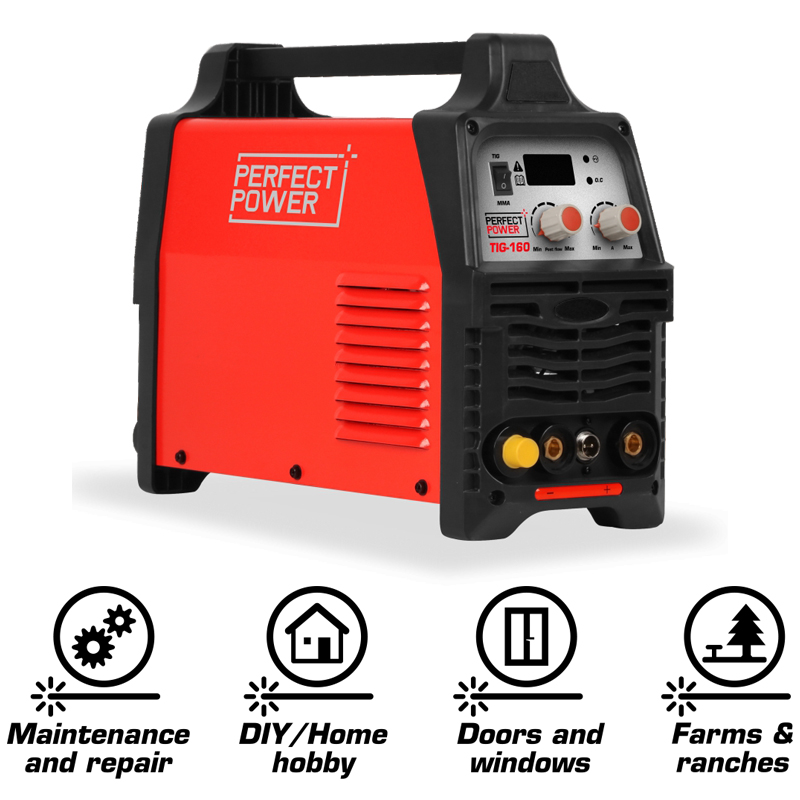

TIG-160 TIG Inverter Welding Machine With MMA Function

In Stock

1. Both TIG & MMA function.
2. 3pcs circuit structure design, robust and reliable performance.
3. 10A min output current is ideal for thin iron and stainless steel welding.
4. Adjustable post-flow function.
5. Overcurrent & heating protection.

Model

TIG-160

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

4.2 kva tig welder

Rated current input(A)

20.4

Rated output current(A)/voltage(V)

160/16.4(TIG) 140/25.6(MMA)

Welding current range(A)

10-160(TIG) 10-140(MMA)

Open circuit voltage DC(V)

62

Rated duty cycle(%)

60

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

470*280*370

N.W.(kg)

7.1/10.4
