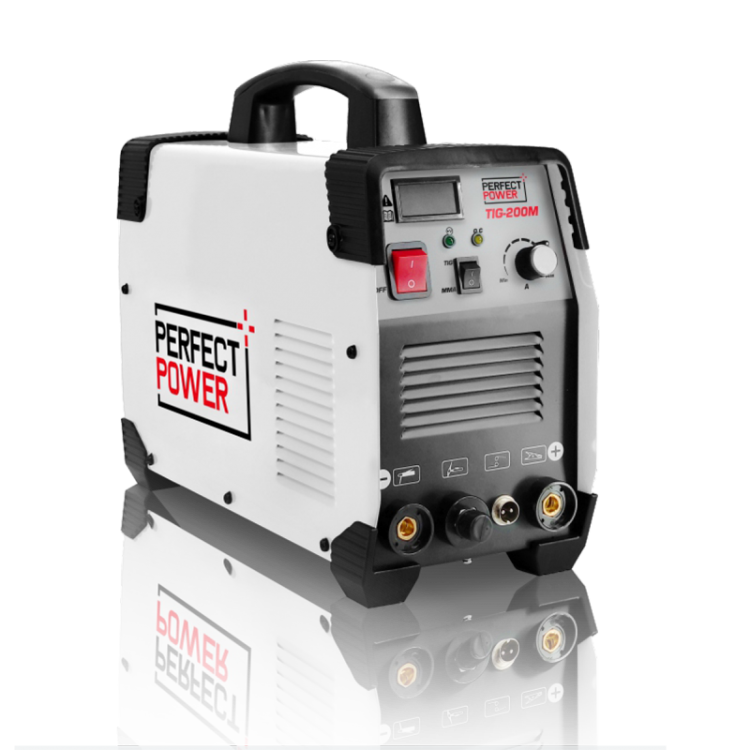

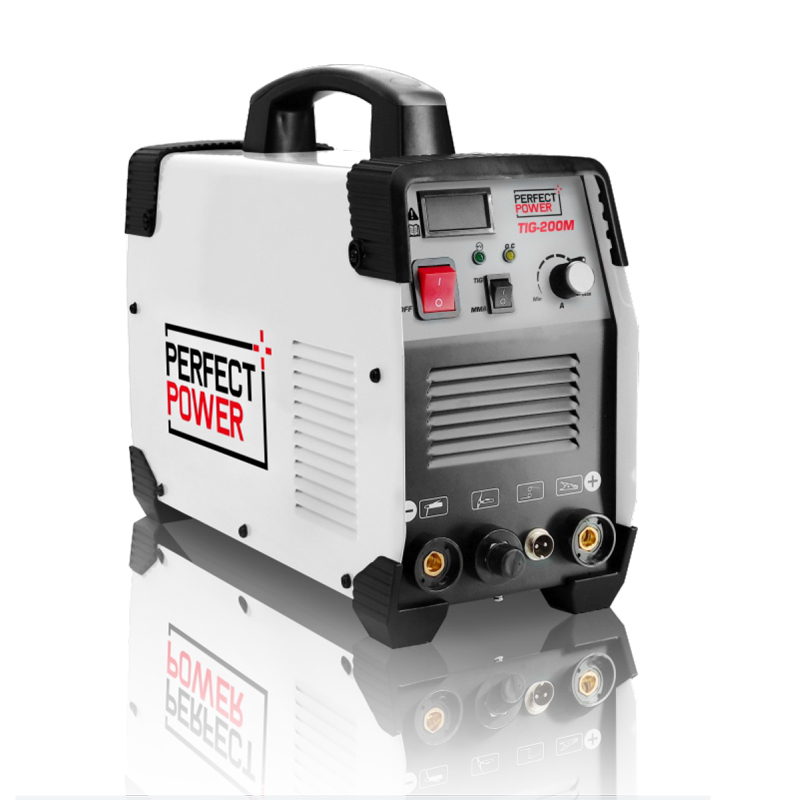

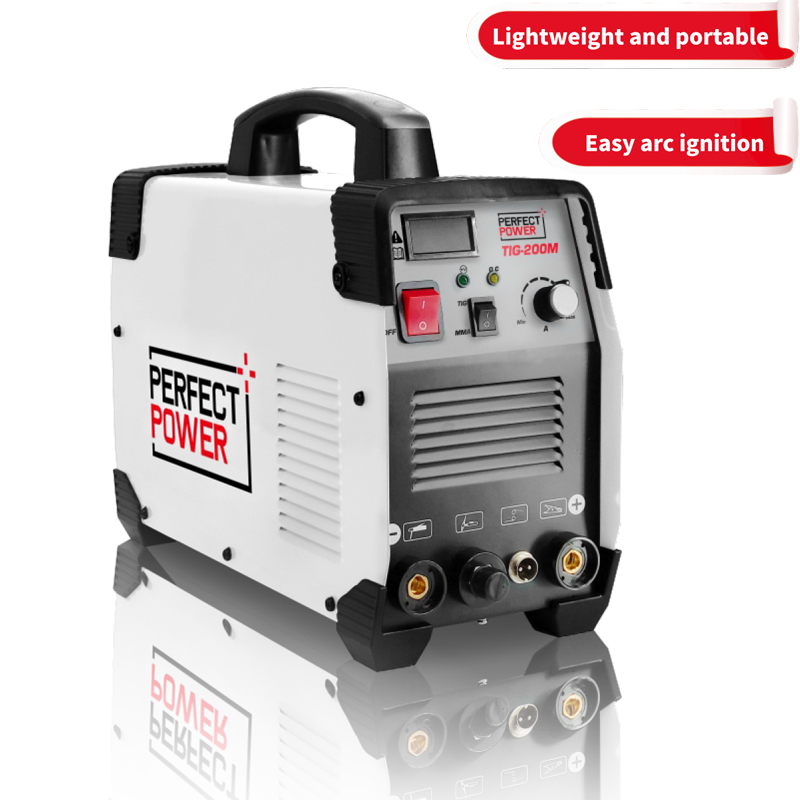

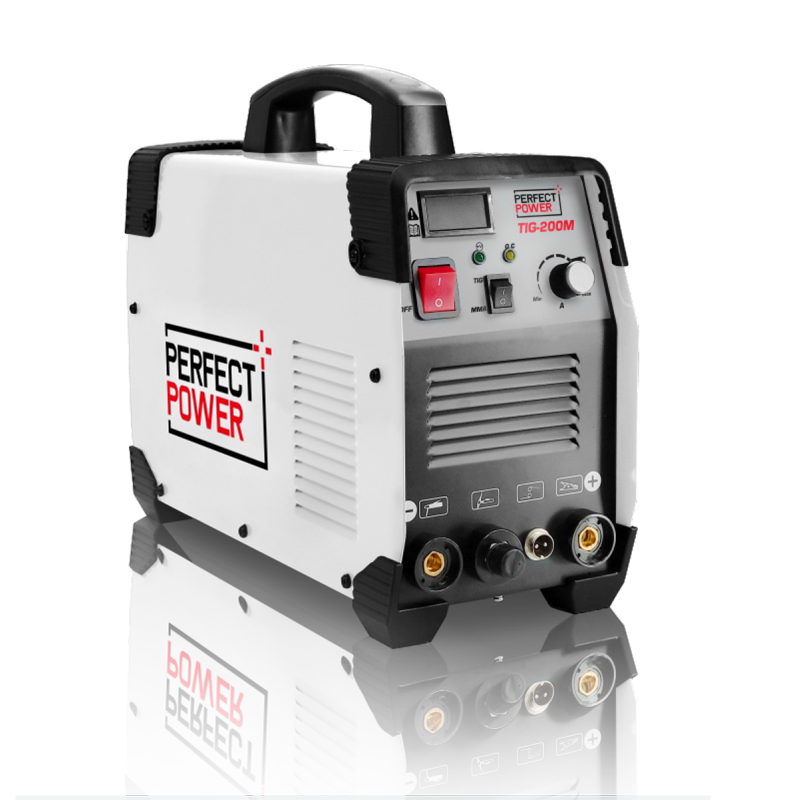

TIG-200M TIG Welder

200-Amp TIG Arc Stick DC Inverter Welder, 35% Duty Cycle, 110-Volt or 220-Volt Voltage Welding

TIG-200M TIG Welder is a dual voltage inverter powered TIG & MMA welder. This is the ideal Stick and TIG welder for every shop. The DC stick mode allows you to stick weld when your application requires it. The TIG welding machine has excellent arc stability and extremely high control performance, which can produce the most ideal welding results. The machine also has superb production technology to achieve perfect welding. It can weld stainless steel, alloy steel, carbon steel, and copper, etc. It is the most important tool for home maintenance, farms, construction sites and all types of environments.

In Stock

TIG-200M TIG Welder is a dual voltage inverter powered TIG & MMA welder. This is the ideal Stick and TIG welder for every shop. The DC stick mode allows you to stick weld when your application requires it. The TIG welding machine has excellent arc stability and extremely high control performance, which can produce the most ideal welding results. The machine also has superb production technology to achieve perfect welding. It can weld stainless steel, alloy steel, carbon steel, and copper, etc. It is the most important tool for home maintenance, farms, construction sites and all types of environments.

Features:

1. Both TIG & MMA function.
2. 3 pcs circuit structure design, robust and reliable performance.
3. A 10A min output current is ideal for thin iron and stainless steel welding.
4. Thanks to the high frequency & high voltage arc ignition circuit, it realizes excellent arc starting with a 99.8% success rate, especially suited for different types of spot welding.
5. Suitable for welding stainless steel, alloy steel, carbon steel, copper, etc.
6. Over current & heating protection.

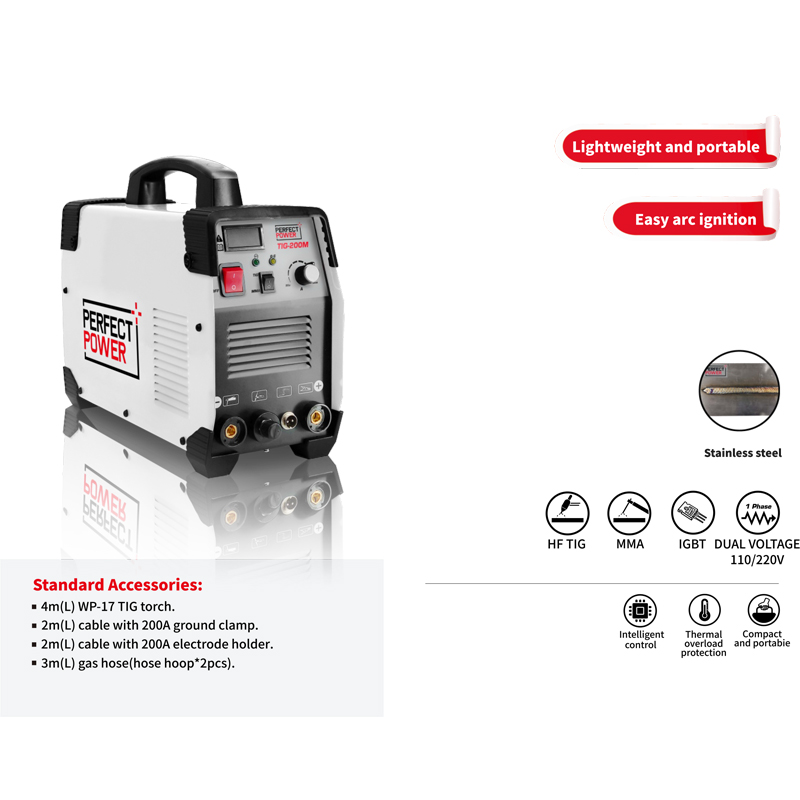

What’s Included:

4m(L) WP17 TIG torch
2m(L) cable with ground clamp
2m(L) cable with electrode holder
3m(L) gas hose(hose hoop*2pcs)

Power input AC(V)

1ph 110V/220V ±15%

Power input frequency(Hz)

50/60 Hz

Max. Load Power Capacity(kVA)

8.2kVA

Rated current input(A)

54.6A

Rated output current(A)/voltage(V)

180A/17.2V(TIG , 220V) 180A/27.2V(MMA , 220V)/ 160A/16.4V(TIG , 110V) 160A/26.4V(MMA , 110V)

Welding current range(A)

10-180 (TIG , 220V) 20-180 (MMA , 220V)/ 10-160 (TIG , 110V) 20-160 (MMA , 110V)

Open circuit voltage DC(V)

60V

Rated duty cycle(%)

35%

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

452*212*325 mm

N.M./G.W.(kg)

7.6kg/10.9kg

Welding Process

DC TIG,MMA welding

Diameter of tungsten electrode(mm)

1.0~3.2 mm

Thickness of welding material(mm)

Steel/Carbon Steel:1.0~6.0mm
Stainless Steel:1.0~6.0mm
