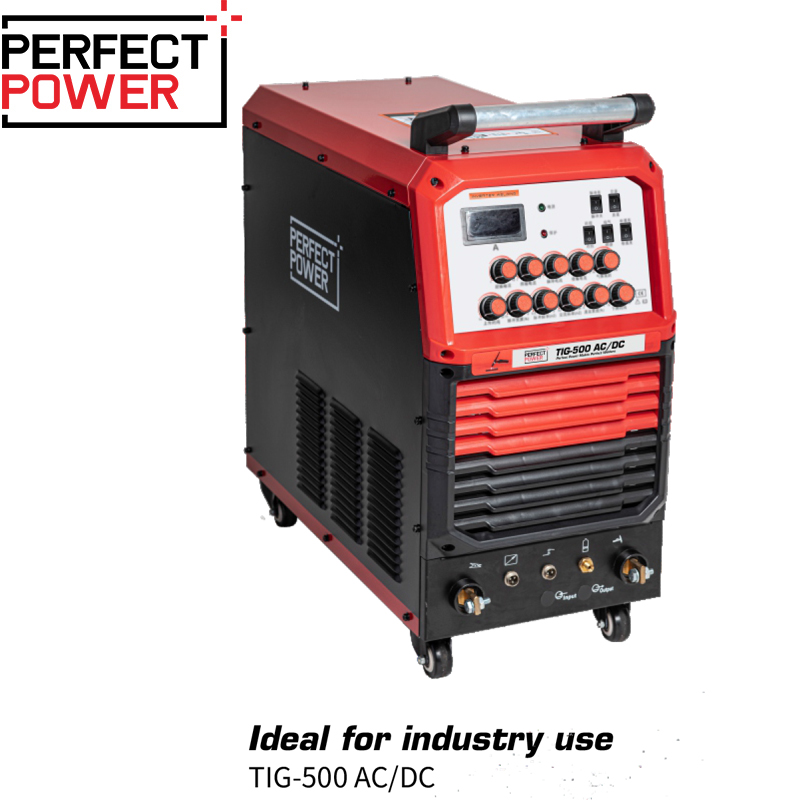

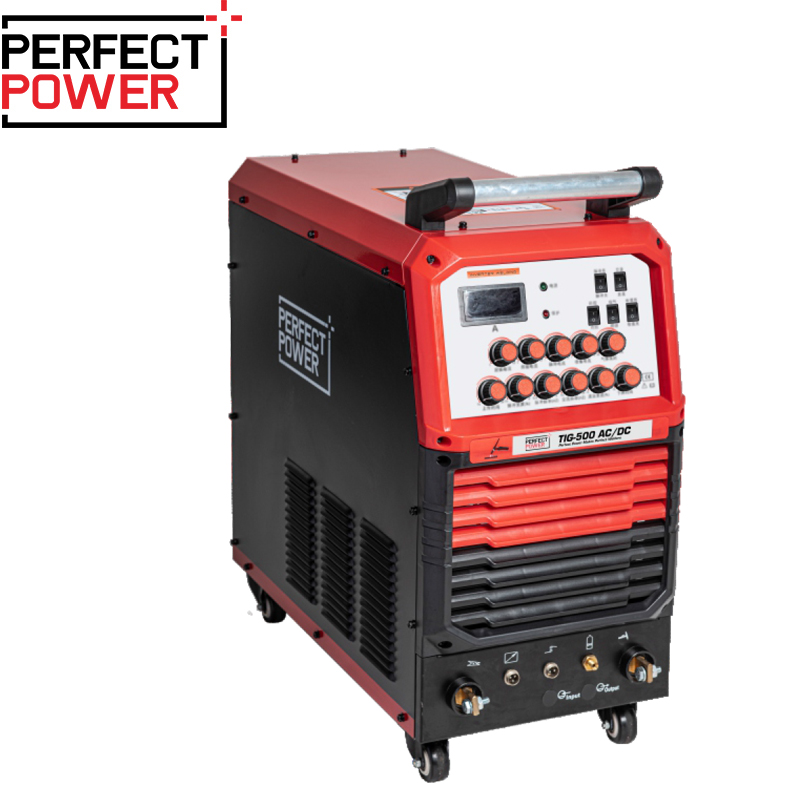

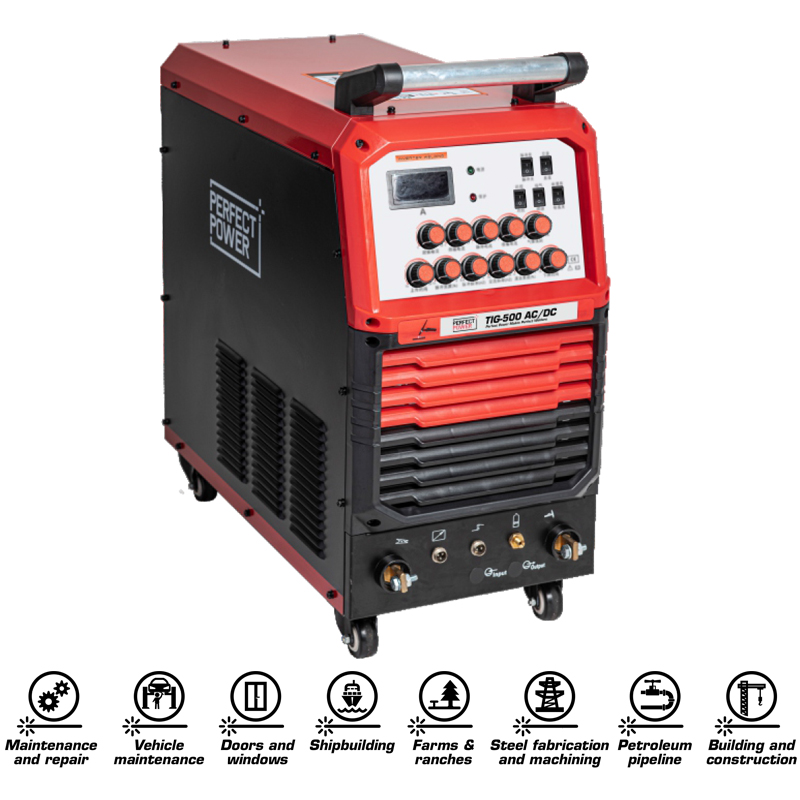

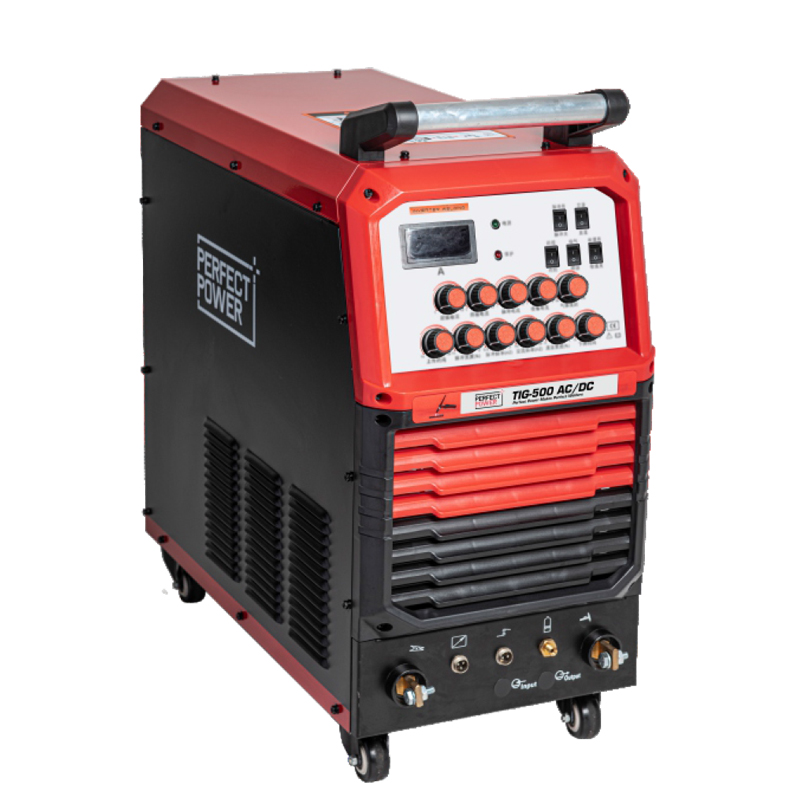

TIG-500 TIG Inverter Welding Machine

In Stock
Welder Custom LabelA versatile welder that can weld various metals
Welder Custom LabelExcellent customer service
Welder Custom LabelVersatile and reliable TIG welder

1.Adjustable AC frequency per your needs.
2.PWM control technology enables fast and stable arc starting.

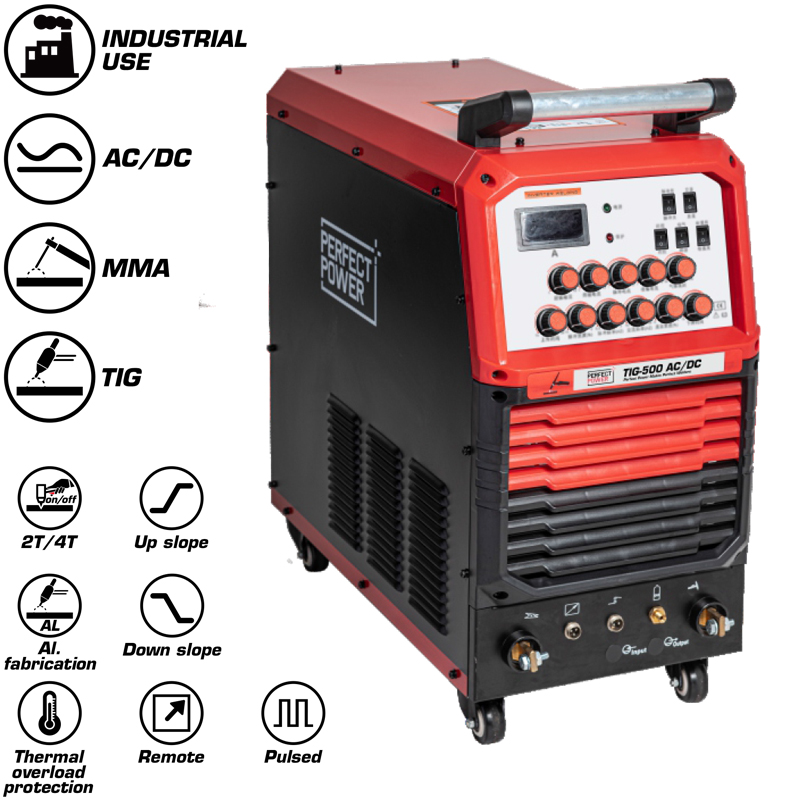

3.5 welding processes: AC TIG; AC pulse TIG; DC TIG; DC pulse TIG; ARC.
4.Cleaning zone width can be adjusted to meet high technological requirements.

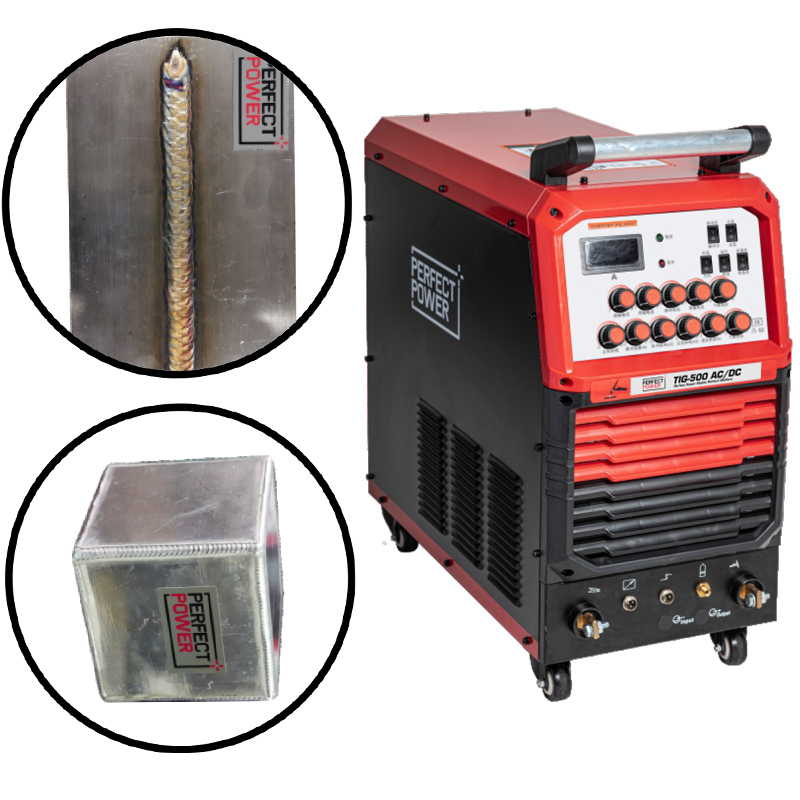

5.Excellent welding capability: aluminum, copper, carbon steel, stainless steel and
6.other metal materials.

Model

TIG-500 AC/DC

Power input AC(V)

3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

17.8

Rated current input(A)

27

Welding current range(A)

30-500(DC) 70-450(AC)

Open circuit voltage DC(V)

65

Rated duty cycle (60%/100%)

500A/387A

Power factor (cosΦ)

0.85

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

740*410*780

N.W.(kg)

43

Brochure

TIG-500 500W AC DC IGBT Inverter TIG AC DC Welding Machine

Video
