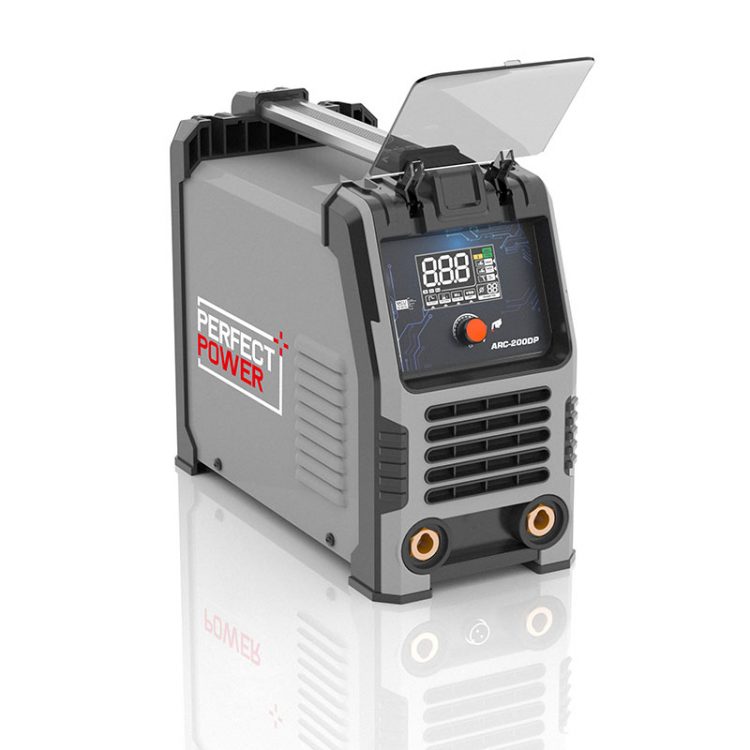

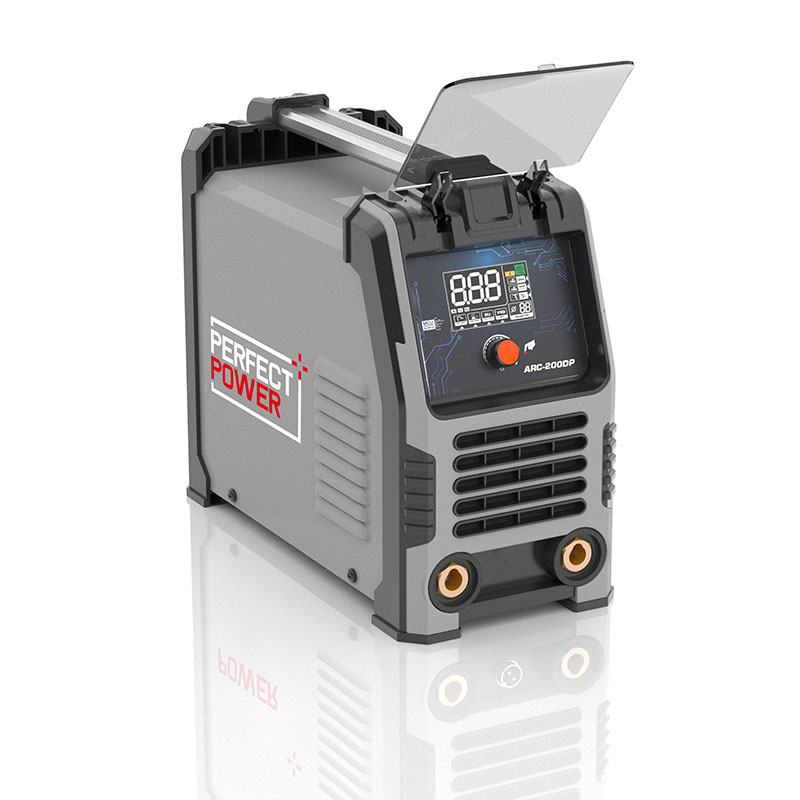

ARC-200DPS Pulse MMA Welder With LCD Display Anti Stick, Hot Start, Arc Force, Vrd, Pulse, Lift TIG Welding Machine

Code: ARC-200DPS Pulse MMA Welder

The ARC-200DPS Pulse MMA Welder features versatility to suit the needs of hobbyists and professional welders alike. It is the multifunction one for you with LCD display, anti-stick, hot start, arc force, VRD, pulse, lift tig welding function

In Stock

1. With LCD Display Anti Stick, Hot Start, Arc Force, Vrd, Pulse, Lift TIG Welding Machine.
2. Intelligent visual operation instruction makes your work easy.
3. Digital controlled, compact design, portable but robust.
4. User-friendly and cost-effective.
5. Adjustable Arc Force, Anti-Stick, and Hot Start technology enable easy arc starting, arc stability, and smooth welding.
6. Overload protection.

Model

ARC-200DPS

Power input AC(V)

110V/220V

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

/

Rated current input(A)

/

Rated output current(A)/voltage(V)

200/28.0

Welding current range(A)

20-140A real@110V; 20-200A real @220V

Open circuit voltage DC(V)

71V

Rated duty cycle(%)

60%

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

465*225*320

N.W(kg)

9.0/10.3
