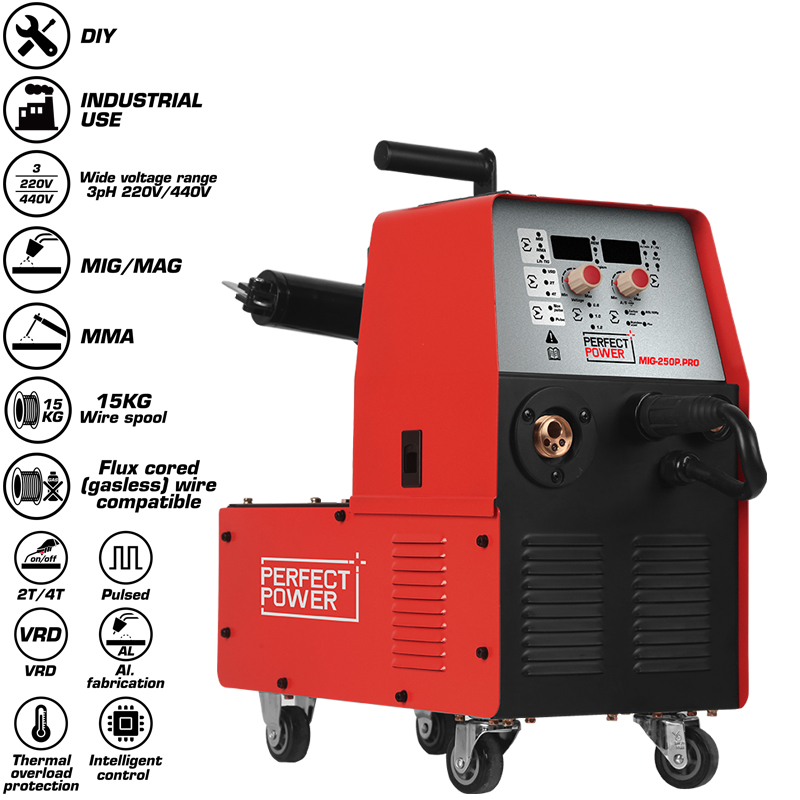

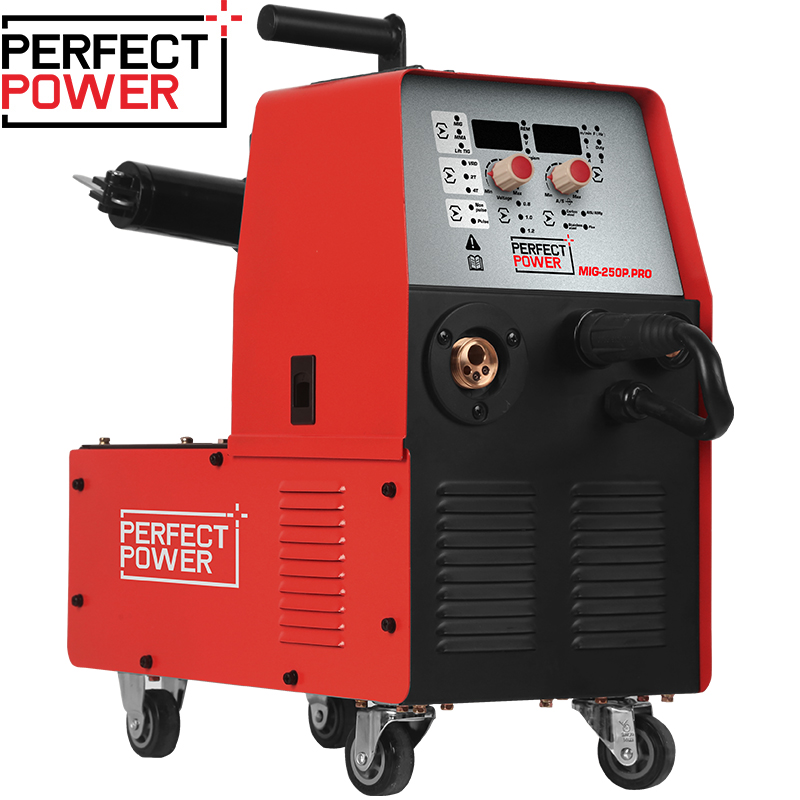

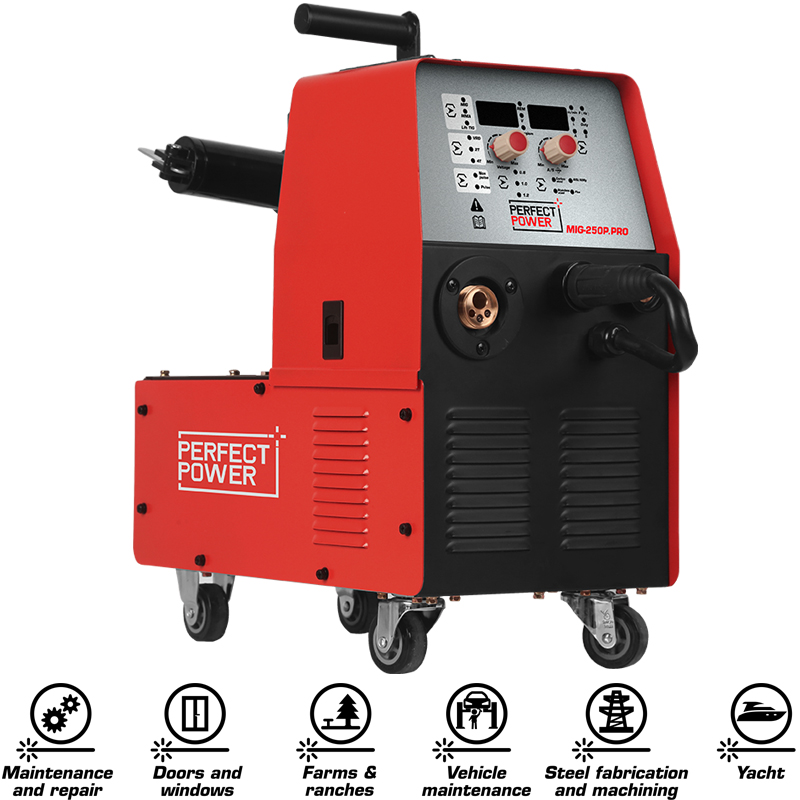

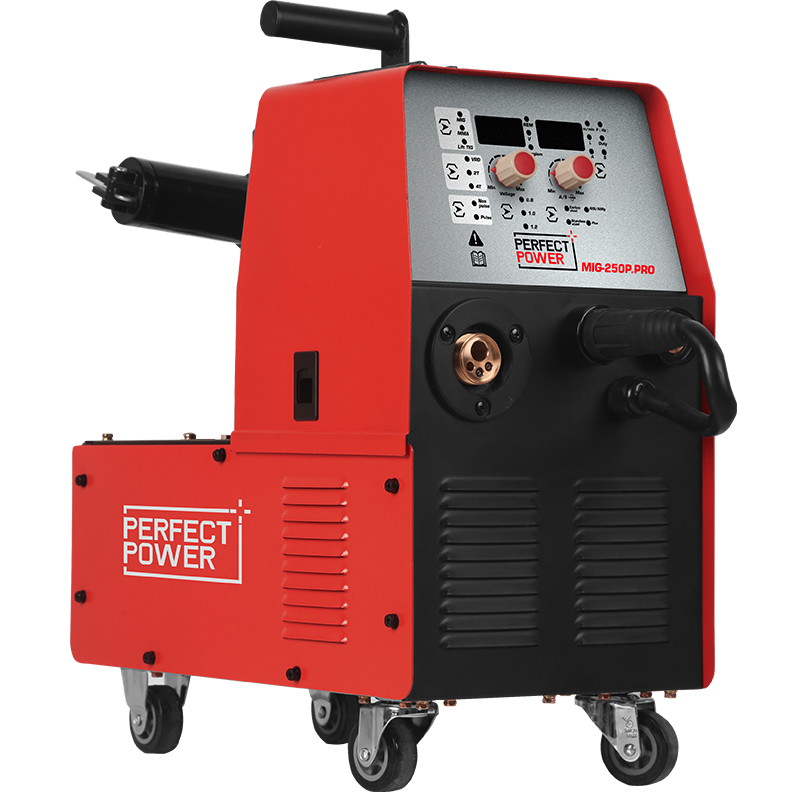

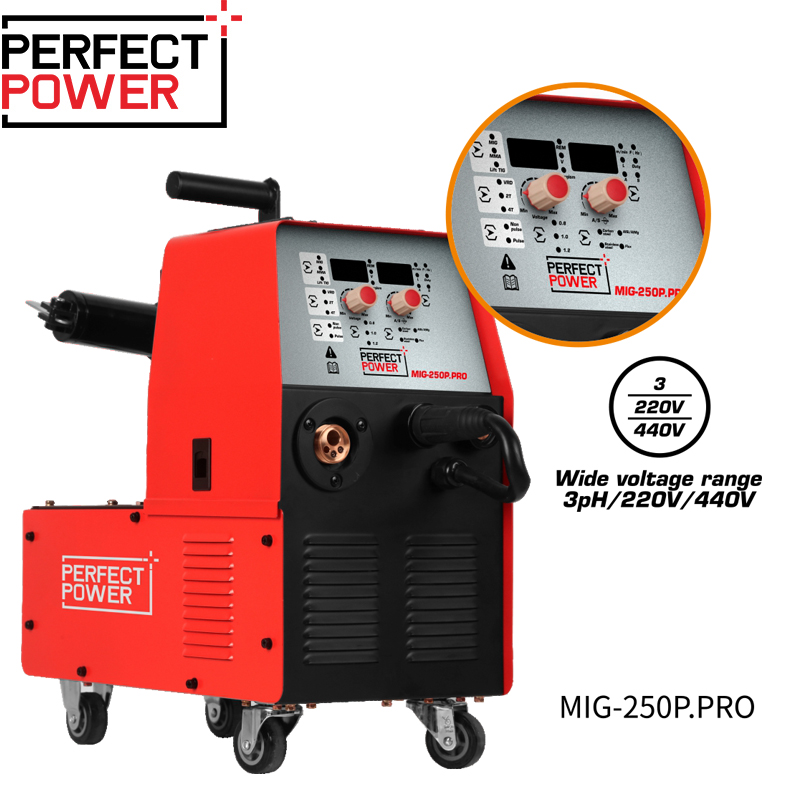

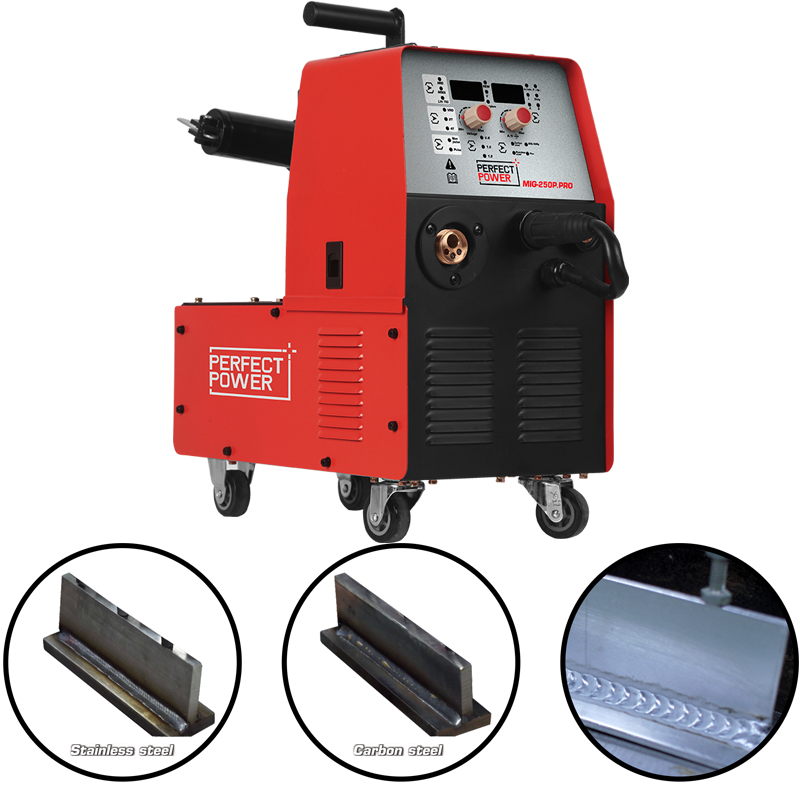

MIG-250P.PRO MIG MAG IGBT Inverter Welding Machine

In Stock

1. Multi-function welding – MIG/MAG, Pulsed MIG, MMA /TIG, and FLUX CORED Wire welding.
2. Pulsed function for Aluminium welding.
3. Capable for 15kg and 5kg wire spool.
4. Professional MMA welding process with VRD function.
5. 2T/4T function.
6. Stable arc with less spatter.
7. Ideal for use in outdoor and indoor conditions.

Model

MIG-250P.PRO

Power input AC(V)

3ph 220V/440V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

9.6(220V) 9.4(440V)

Rated current input(A)

25.2(220V) 12.4(440V)

Rated output current(A)/voltage(V)

200/24.0(MIG,220V) 200/28.0(MMA,220V) 250/26.5(MIG,440V) 250/30.0(MMA,440V)

Welding current range(A)

40-200(MIG,220V) 30-200(MMA,220V) 40-250(MIG,440V) 40-250(MMA,440V)

Open circuit voltage DC(V)

72

Rated duty cycle(%)

30

Wire Feeding Speed(M/min)

2-18

IP grade

IP21S

Insulation grade

H

Dimensions(mm)

550*310*535

Weight (KG)

21.3

Wire Melting Type

short circuit transfer
