1. Adopt advanced full-bridge IGBT inverter technology.
2. Digital display for welding current presetting and display.
3. Heavy-duty cycle for heavy industry use.
4. Arc force and hot start adjustable, ensure easy arc striking.
5. Auto protection against over-voltage, over-current and over-heated.
Advanced IGBT inverter technology
Arc Force/Anti-Stick and Hot Start technology enable easy arc starting arc stability and smooth weldin
Portable lightweight and compact welder
Model | MMA-300 |
---|---|
Power input AC(V) | 3pH 380V ±15% |
Power input frequency(Hz) | 50/60 |
Max. Load Power Capacity(kVA) | 12.2 |
Rated current input(A) | 18.5 |
Rated output current(A)/voltage(V) | 300/32.0 |
Welding current range(A) | 30-300 |
Open circuit voltage DC(V) | 65 |
Rated duty cycle(%) | 60 |
IP grade | IP21S |
Insulation grade | F |
Dimensions(mm) | 605*345*475 |
N.W(kg) | 16 |

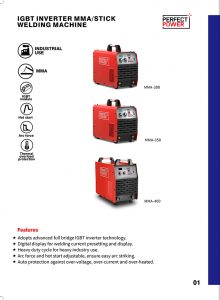

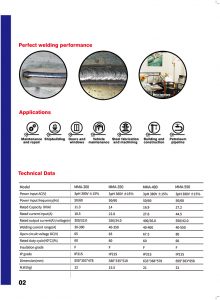

Brochure
