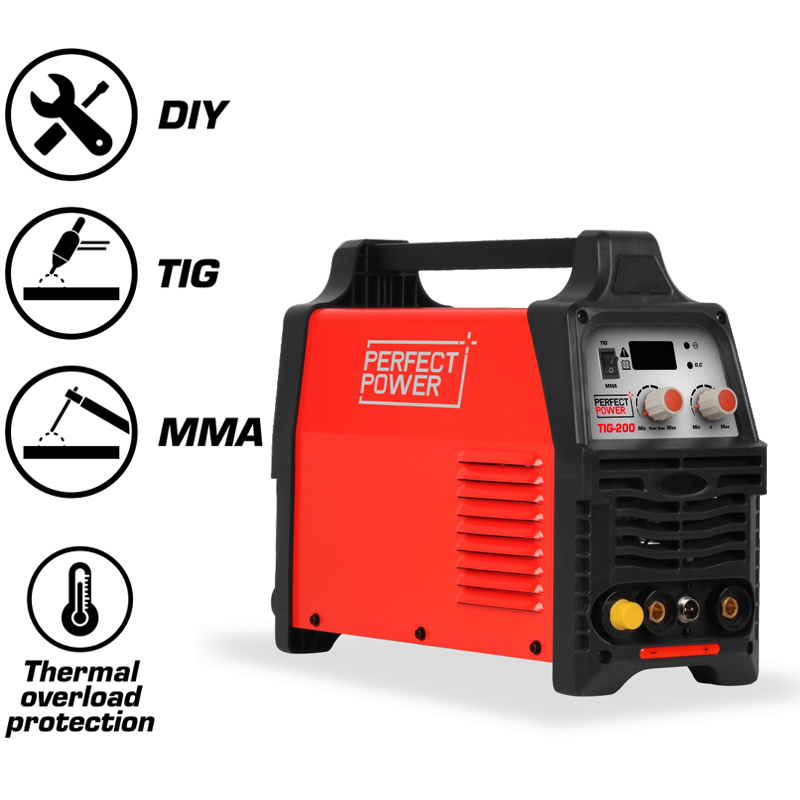

1. Both TIG & MMA function.
2. 3pcs circuit structure design, robust and reliable performance.
3. 10A min output current is ideal for thin iron and stainless steel welding.
4. Adjustable post-flow function.
5. Overcurrent & heating protection.

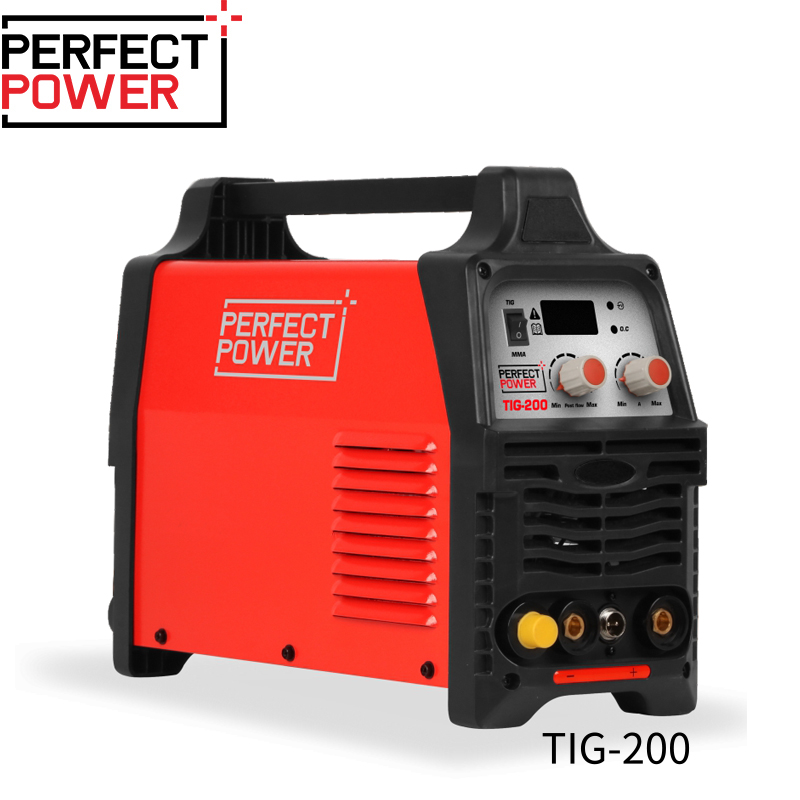

Advanced IGBT inverter technologyEasy and safe to useExcellent for beginners| Model | TIG-200 |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 5 kva tig welder |
| Rated current input(A) | 28 |
| Rated output current(A)/voltage(V) | 200/18.0（TIG） 160/26.4（MMA） |
| Welding current range(A) | 10-200（TIG） 10-160（MMA） |
| Open circuit voltage DC(V) | 62 |
| Rated duty cycle(%) | 30 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 470*280*370 |
| N.W.(kg) | 7.2/10.5 |
